How to Diagnose Other Indoor Wall or Ceiling Stains - Heating Equipment InspectAPedia® -
Soot stains indoors caused by defective oil or gas fired heating equipment
A photo-guide to other indoor ceiling and wall stains and what they mean
InspectAPedia offers impartial, unbiased advice without conflicts of interest.
We will block advertisements which we discover or readers inform us are associated with bad business practices,
false-advertising, or junk science. Our contact info is at
InspectAPedia.com/Contact.htm.
This article describes & diagnoses heating equipment as the cause of various interior wall and ceiling stains and explains how to recognize thermal tracking, thermal bridging stains,
building air leaks, and building insulation defects. Readers should see HEAT LOSS in buildings. Also see AIR SEALING STRATEGIES and AIR LEAK DETECTION TOOLS as well as AIR LEAK MINIMIZATION. For photos of snow melt on rooftops that also show points of building heat transfer and loss, see STAIN DIAGNOSIS on BUILDING EXTERIORS.
Often these stains are mistaken for toxic indoor mold. When investigating a building for a mold problem, you can save mold test costs by learning
how to recognize Stuff that is Not Mold or is only Harmless Mold but may be mistaken for more serious contamination.

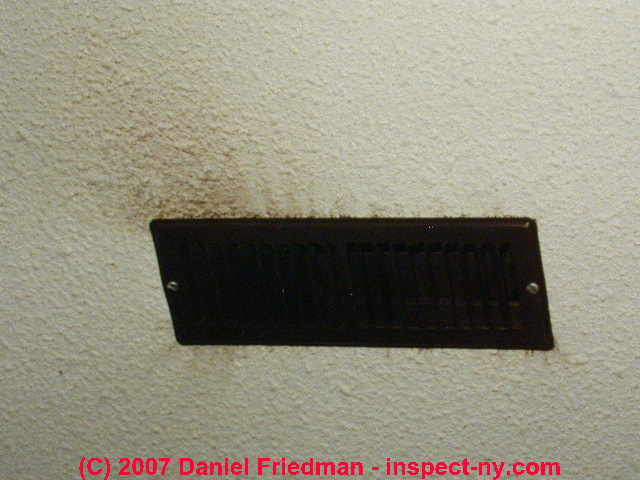

The soiling and "stains" around this ceiling supply register for warm air or air conditioned cool air show that the air system is dirty, has inadequate filtration, or is operating unsafely.
While mold or other problem particles could be present in this dirt or debris, if they are present they are coming from another source, not from this soiled area on the ceiling.
Here the debris deposited on the ceiling is in a common pattern where warm or cool air supply registers blow air across the ceiling surface (including from leaks around the perimeter of the register grille in this case.)
The stain pattern is from building air movement, it is not thermal tracking and it is not, by itself, an indicator of problem mold. A lab test of this debris for the presence of mold would not be justified based only on the observation of these stains, but it might be justified if there were other reasons to need to screen the building or its HVAC system for problem mold or other contaminants.

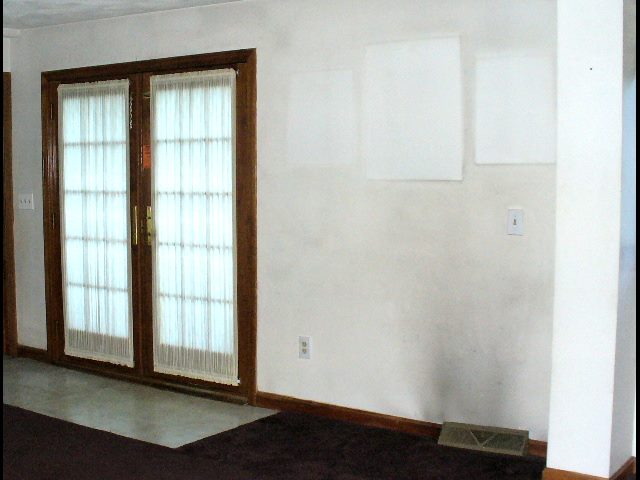

If you have frequent fireplace fires, cooking, or if you burn scented candles, if people smoke in your home, or if your oil-fired or gas-fired
heating system is not working properly, the added soot particle load in the building air
is not only a health concern (soot and potentially lead), it also will mark the building surfaces in this characteristic pattern.
We welcome more thermal tracking, soot tracking, air bypass leaks, and similar photos of indoor stains as well as text suggestions to expand this detail and would be glad to credit contributors.
Usually soot marks, thermal bridging, or thermal tracking stains appear, if at all, in the building interior locations discussed
in the remaining sections of this article.
