What to Do About Thermal Tracking & Other Wall or Ceiling Stains, & Air Movement in buildings
Question: How do I get Rid of Thermal Tracking Stains & Prevent Their Recurrence
I have what seems exactly how you describe thermal tracking on my
ceiling in the living room and some discoloration in other rooms. I
live in a twin ranch home in Philadelphia that is quite small/cozy for
a family of 8.
My question is what do I do to stop this discoloration from
continuing? I had someone go into the attic and he said that he never
saw black soot in an attic like he saw in mine - it was congregated
along the beams of the ceiling.
How do I get rid of it? My furnace was replaced less that 10 years
ago by a fellow who has a reputation for his meticulous work - the
furnace is also well maintained.
We are considering moving and I would like to repaint my house soon.
Any suggestions? - P.C.
Reply: steps to remove thermal tracking stains and prevent their return
Below we provider a quick summary of some thermal tracking stain clean up and prevention suggestions, followed by an in-depth article on this topic.
Wash stained surfaces: if your building walls and ceilings have paint in good condition it is usually possible to wash the surfaces, though you may need to make more than one pass to remove streaking, and ultimately you may simply decide to re-paint. Use a non-sudsing detergent intended for cleaning interior walls and ceilings. If cleaning is not sufficient you'll need to re-paint.
For thermal tracking stains on building insulation in an attic, no cleaning is necessary, just find and fix the air bypass leaks or missing insulation. As long as the insulation has not been wet (and at risk of mold contamination) surface staining from dust deposition by air movement across the insulation won't impact its effectiveness. But fixing the air leaks that left the dust there will indeed improve building insulation and energy efficiency, often significantly.
Watch out: if you try simply painting over dark thermal tracking stains the black stains may bleed through your new paint job. If necessary use a lacquer primer/sealer paint before your top coat. But before re-painting or even cleaning, some diagnosis of the cause of thermal tracking stains is important since if you don't correct the cause of this staining your newly cleaned walls or paint job may be at risk.
Identify the cause of thermal tracking: review the other sections of this article. Visual inspection of attics, wall cavities,
or other building areas can tell you if the building is un insulated or has openings where air is bypassing insulation. Be alert also for
building cavities where insulation has become wet and possibly moldy as such would need to be removed before continuing to improve the
insulation and air tightness of the home. And don't forget to be sure the stains you are examining are due to thermal tracking. See Other Stains on Indoor Walls & Ceilings.
Add insulation to un insulated building cavities such as un insulated attics (first priority) or walls (second priority) and pay attention
to areas of air bypass leaks where insulation has been omitted, removed, or imperfectly installed. Identify areas in the building where there are air bypass leaks and seal them. Air Bypass Leaks Marks on Insulation shows
how to recognize where air is moving past poorly installed building insulation.
Review the building indoor moisture levels: since even a reasonably well insulated building may develop thermal tracking marks if
interior humidity is excessive. If the building has unwanted wet conditions such as a wet crawl space or basement or other areas of leaks, those
conditions need to be corrected. See HUMIDITY LEVEL TARGET.
Review and reduce sources of indoor soot or debris such as an oil or gas fired heating system that is not working properly, since those conditions
need to be corrected for safety and economy of building heating as well. Since excessive use of most types of candles can also produce
unwanted levels of indoor soot, if those are a principal source of indoor stains their use should be reduced or eliminated.
Is the oil or gas fired heating system operating properly? If not it may be not only smoky or sooty, but also operating inefficiently and worse, it could be dangerous. A sooty gas boiler or furnace is very dangerous and should be shut down and serviced immediately. See HEATING SYSTEMS for articles on heating system inspection, diagnosis, and repair.
Are there or have there been occupants who were smokers of cigarettes, cigars, pipes?
Are there fireplaces or woodstoves that release smoke to the interior?
Are building occupants smokers? Cigarette smoke is a big contributor to thermal tracking stains, often leaving heavy brown stains on building walls even where other stain sources are absent.
Most samples of thermal tracking particulate deposits that we examine in our forensic lab are simple house dust: a mixture of fabric fibers and skin cells. These are normal debris found indoors. But more frequent indoor cleaning, HEPA vacuuming, eliminating of or reducing the number of carpets, installation of glass fireplace doors, avoiding burning food on the stove, are additional examples of steps that can reduce the indoor airborne particulate level and thus the rate of staining on indoor surfaces.
Use a better grade washable paint when re-painting stained surfaces. That will make future surface cleaning easier.
Detailed Step by Step Guide to Curing Indoor Stains due to Thermal Tracking
1. Inspect and Diagnose Accurately to Find the Causes of Indoor Stains and Thermal Tracking
If your building diagnosis is not accurate there is a real risk of both wasting money and possibly failing to attend unsafe conditions such as mold contamination or unsafe heating appliance operation and dangerous carbon monoxide hazards. So it is important to determine why the stains are occurring, to rule out or address safety issues, and then we can proceed to a simple three step procedure.
Cure the underlying causes of staining and thermal tracking, such as by addressing sources of soot and dirt, sources building moisture, insulation defects, and ventilation problems. This step is addressed in detail beginning at THERMAL TRACKING.
Clean, seal, and paint the stained areas. This step is addressed in this article, beginning above at What to Do About Thermal Tracking and continuing in detail below.
Monitor for any new staining events and diagnose them
To be reliable a thorough building investigation to identify the causes and recommend cures for indoor stains and thermal tracking will examine the entire property, outside and inside, examining all readily accessible areas, examining the mechanical systems, (plumbing, heating, air conditioning), the building ventilation and insulation, and more. Focus of the inspection may be on the sources of soot and debris, moisture, as particle deposition sources, as well as on building conditions that cause particle deposition on surfaces: high indoor moisture, air movement, insulation and ventilation defects.
2. Indoor Staining and Other Cleanup/Removal Recommendations
Warning about harmful mold: if you hire a professional to address building staining and its cause and remedy this is not a contract not to address a mold or air quality investigation which is a more extensive (and more costly) procedure. For this reason significant mold contamination, health and safety risks, and significant mold remediation costs are likely to be faced at this property: these are conditions which were excluded from the scope of a site investigation for stains, thermal tracking, sooting, or heating and air conditioning problems.
Mold safety during building repairs: Because moldy materials are likely to be present, it is important that any property cleaning and repairs which you pursue be conducted properly and professionally in order to avoid increasing the safety and health risk to building occupants. http://InspectAPedia.com/sickhouse/investigate.htm provides assistance in deciding when it is justified to hire a professional to inspect for mold and to prepare a mold remediation plan. http://InspectAPedia.com/sickhouse/action.htm contains general advice about removing mold contamination in buildings.
Warning about cleanup effectiveness: No cleaning measures will be effective, and the cost of performing them may be wasted, without also addressing causes of building contamination such as water entry, sewage backups, building leaks, and building ventilation defects.
Those defects which a professional inspection was able to identify are addressed at Exterior, Interior, and Mechanical System recommendations below and in the report specific to your building. Others may be discovered.
Cleanup and demolition can begin, but cannot be completed reliably until/unless the building is acceptably dry. If not all suspect areas are addressed it may be difficult to obtain a satisfactory clearance test following remediation work. If leaks or moisture remain or recur there is high risk of a problem.
Here are the basic steps in correcting an indoor sooting or thermal tracking problem
Replace obsolete recessed ceiling lights and other un-insulated ceiling penetrations - LIGHTING, INTERIOR GUIDE
2.3. Guide to Cleaning & Painting Stained Areas Blackened by Stains or Thermal Tracking
Demolition: remove wet, moldy, or water-damaged materials such as floor trim and moldy plaster/drywall where your investigation has found it in the building.
Additional removal of stained, soiled, or moldy material beyond that cited in this section should be continued where opened/removed material discovers additional moldy or suspect materials.
Remove building insulation wherever it is exposed by demolition. Remove insulation within 5 ft.
Since future repair, demolition or cleaning processes can disclose hidden problems, anyone performing these tasks should, as a matter of general practice, be alert for discovery of leaks, water entry, building damage, mold reservoirs etc.
2.4. Investigate Stained buildings Further for Hidden Damage due to Moisture or Mold
Before stopping the demolition of damaged or moldy materials, be sure that all areas of known, visible, or most-suspect damage from leaks or moisture traps are opened and investigated. It is important that the extent of demolition continue sufficiently to see that no contaminated, moldy, insect-damaged, or rotted problem areas remain un-addressed.
Otherwise, there is a significant risk that the cost of this repair and renovation could be wasted by having to repeat the procedure later. Examples of such areas we noted during our inspection include:
While there could certainly be other problem areas as yet undiscovered on the building, the following points of extra risk particularly suggested themselves based on observations made at the site or history which was reported for the building. These are areas of further investigation should indoor air quality complaints persist after the remediation measures recommended in this report have been completed.

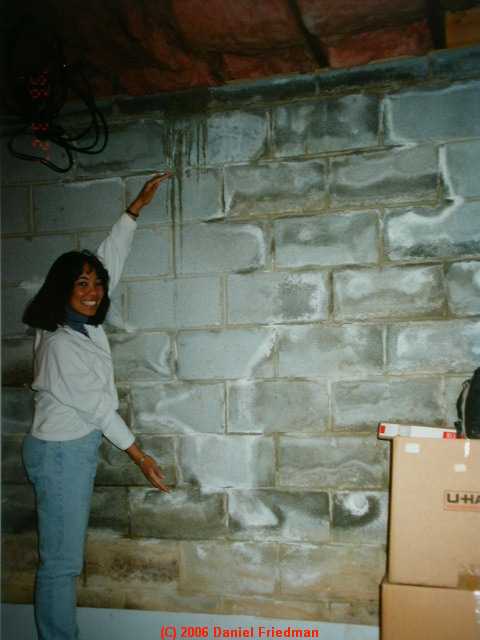

Our photo shows surface runoff or roof spillage that has entered a basement by running down the foundation wall. Unless this water source is corrected, the building will continue to suffer from excessive indoor humidity - a contributor to thermal tracking and soot staining.
See the exterior and interior observations made during your building inspection, as these correlated with risk of water entry, moisture, mold, and allergens.
Also see suggested items for repair or investigation under Exterior Recommendations, Interior Recommendation,Mechanical systemsRecommendation beginning at 3.0 below.
Leaks at skylights – in the ceiling area below the point of water entry at the skylight, in the ceiling at the top of the wall down-slope from the leak point, and in at least the top of the wall cavity just below this area; if leak damage is discovered by removing drywall in these spots, drywall should be removed to inspect lower areas such as at the floor and in the ceiling of any finished rooms below the floor in the same location.
Leaks at walls –
Leaks at floors – such as in a wet basement, where removal of material around the perimeter walls is necessary to be sure that all of the water entry points have been identified, diagnosed, and corrected.
Areas exposed by present or future demolition, repair, remodeling:
Back side of drywall on opposing side of abutting wall or ceiling cavities opened for demolition
Surface of framing, sheathing, sub-flooring exposed by demolition
These are optional targets for further investigation: I did not find significant leakage evidence or other evidence in these spots sufficient to strongly recommend immediate destructive inspection of these areas, but it may be more economical to address any such findings as part of the current cleanup plan rather than later.
Walls behind baseboards or other trim which have been left in place after flooding – if mold is found in these areas the wall cavities need to be opened for further exploration.
Other unopened wall and ceiling cavities, particularly in areas that have been wet such as where leaks occurred from plumbing, ice dams, leaks into walls below window sills, at radiators and plumbing fittings (toilet base, leaky or running toilets, fixture drains) wherever such areas of extra risk can be identified by building history or by visual observation
2.5. Cleaning or Painting of Stained Walls & Ceilings to Correct Stains & Ghosting
Clean black-stained areas on ceiling and wall drywall using a non-phosphate commercial interior cleaner, after protecting floor surfaces and after moving out or protecting and covering furnishings.
Alternatively you can elect to paint black-stained areas using a stain-covering paint, in which case We recommend use of a lacquer primer sealer. Do not use a latex sealer as stains often bleed through water-based paints and even some oil-based paints. Bin™, or Enamelac™ are trade names of two lacquer primer-sealer paints that work in this application. Proper ventilation and other procedures are necessary for health and safety during this procedure.
Following cleaning and/or sealing in the stained areas, your painter can prime and paint the interior room walls and ceilings throughout. We recommend use of a vapor retarder primer paint on the inside surface of exterior walls and ceilings to reduce the moisture absorption into these materials in the future.
(Numbers in report text or tables refer to Site or Lab photographs. Please review the annotated photos attached to this report. There you will see important additional details.)
3. Exterior Inspection and Recommendations To Correct Indoor Stains & Thermal Tracking
3.1. Exterior observations and recommendations specific to the subject property
I observed exterior conditions which are associated with leaks, high moisture, or other factors which contribute to mold/allergens in buildings.Please review your site exterior photos (in your site investigation report) as they provide additional specific details. These items have or may have contributed to water entry, interior mold in the building. Correct these sources of leaks and moisture to prevent future water entry to prevent mold re-growth.
3.2. General Exterior Recommendations to Stop Indoor Thermal Tracking Stains & Moisture Problems
Maintain the gutters (loose, wrong slope, clogged, leaky), add drip edge or re-hang gutters if roof runoff runs behind gutters; extend downspouts at least 6ft. from the building and to locations that will drain away from the building; assure buried downspout lines are not clogged or leaking underground; correct improper in-slope grade which holds water against the foundation.
Repair damaged, leaky exterior components and openings: doors, windows, chimneys, and roof penetrations.
4.1. Interior inspection and recommendations specific to the subject property:
Besides items already cited above for cleaning or removal, I observed these interior conditions which are associated with mold/allergens in buildings.Please review your site interior photos attached to your thermal tracking and building inspection report as they provide specific details.
4.2. General Interior Recommendations for Removing & Preventing Indoor Thermal Tracking or Ghosting Stains
Use mold-resistant construction materials and methods when repairing or restoring building areas which are to be demolished for cleaning or for other renovation and repairs. Please see these articles which offer details of these flood response and mold resistant construction methods.
http://InspectAPedia.com/sickhouse/FiberglassMold.htm “Mold in Fiberglass Insulation” – We recommend against using fiberglass insulation in wall cavities in this building where you are insulating against masonry exterior walls, and We recommend placement of sound plastic vapor barriers on the warm side of all exterior walls when renovating or repairing
Dry out all building crawl spaces and keep them dry - see our details about how to dry out a problem crawl space at How to Dry Out A Problem Crawl Space
Wall to wall carpeting in the basement/below-grade level creates an ongoing risk of forming a mold reservoir. At the next event requiring cleaning or renovation, we recommend elimination of this material at this location, going to tile or vinyl flooring. Area rugs can still be used as these can be cleaned.
Fiberglass insulation in the basement/below-grade level creates an ongoing risk of forming a very significant mold reservoir – this is a condition I have been detecting frequently in buildings, even where the insulation looks clean to the eye.
At the next event requiring demolition, cleaning, or renovation, we recommend elimination of use of ordinary fiberglass insulation in moisture-prone building cavities such as basement walls against below-grade foundation walls. Use solid foam insulation products which do not themselves absorb moisture and which are less mold friendly.
Basement de-watering systems: if all of my outside recommendations have been completed correctly (and have been verified as complete and correct) and then water entry recurs it may be necessary to install an interior de-watering system.
In general we do not recommend this approach as building dampness may still be excessive—it is more effective to prevent water entry from outside whenever possible.
But sometimes outside measures are just impractical or more costly than an indoors basement or crawl space waterproofing project. Inside de-watering systems like B-Dri™ are a last resort. Basement waterproofing systems can be effective at keeping water off of the floors if they are properly installed.
Improperly installed a basement de-watering system or basement waterproofing system and can create its own dampness problems in buildings. See Sump Pumps just below.
Suspect upholstered furniture, curtains - either try professional steam cleaning followed by HEPA vacuuming or dispose of this furniture;
Scented candles – can be a respiratory irritant to many people. We recommend abandoning use of and disposing of these items.
Crawl space venting – this is a debated topic as in humid weather venting outside air into a cool crawl space might increase crawl space moisture.
We no longer recommend simple passive venting nor humidistat-controlled venting except in special circumstances. When my inspection indicates a long-standing moisture problem in such an area the best current advice is to stop venting the crawl space(s)s and to convert it/them to a dry, conditioned space:
Provide a moisture barrier over any dirt floors and extending up foundation walls but not up to nor in contact with wood framing or sills. Moisture barriers may be 6-mil poly or other special basement sealer products such as special moisture-sealing concrete coatings
Be sure that the dirt floor moisture barrier slopes to a drain. A great many installations we see, even in company product literature, show multiple low spots in a crawl space, each of which is subject to ponding and water retention from leaks or other unanticipated water entry into a crawl space or basement.
Install a continuous dehumidification system (with a permanent drain hookup so the system can run unattended. Use an A/C condensate pump to a building drain if a gravity drain connection is not feasible.
A dehumidifier in a crawl space will also provide some heat in that area; if the crawl space is too cold (despite perimeter insulation) it may be necessary to add a small level of heat there. Some building also permit introduction of dry heat into these areas.
See our detailed article CRAWL SPACE DRYOUT PROCEDURES for more complete information on how to dry out a wet or damp crawl space in order to reduce the chance of mold, insect damage, allergens, and structural rot.
5. Mechanical Systems Observations & Recommendations to Stop Indoor Thermal Tracking, Soot Stains, Ghosting
5.1. Heating, Cooling, Ventilation Systems
Heating equipment: For furnaces, obtain proper service, including proper filters (and/or improved efficiency filters), blower compartment cleaning including the compartment and the blower fan unit. See these references:
Central air conditioning: check the air handler(s) monthly (when the air filter is changed) to assure that the condensate handling system is not leaking into the building. If an attic system is missing a condensate overflow tray or missing a backup condensate overflow drain there is a risk of leaks into the ceiling if condensate leaks occur in the regular condensate piping. See Air Filters for Heating and Air Conditioning Systems - http://InspectAPedia.com/aircond/AirFilters.htm and be sure to review the condensate leak issues at Condensate Handling - http://InspectAPedia.com/aircond/aircond17.htm
Duct work: check further for mold or accumulated dirt, debris, dust, allergens; have professionally cleaned if the duct material can be cleaned. Light dust and debris in ducts is normal and does not normally justify professional cleaning. See Duct System Defects at http://InspectAPedia.com/aircond/aircond18.htm
If fiberglass board or flex-duct was used, flooded, contaminated (see lab report), visibly moldy or badly soiled duct sections will need to be replaced as these components can’t be cleaned and in my opinion encapsulants are unreliable. If non-cleanable replacement duct materials (fiberglass and flex duct) are installed they may need to be replaced again in the future.
This may be cost-reasonable for accessible sections of flex duct but not for duct work run through building cavities or for major trunk lines. Watch out for incomplete-cleaning of duct-work; I often find mold growing where condensate collected in duct work is run through un-conditioned space such as a cool crawl space or hot attic.
Window and wall-mounted air conditioners: clean these units and replace or clean washable filters monthly during the in-use season. If mold appears inside the air path of these units they are probably not cleanable and will need to be replaced.
5.2. Plumbing & Other Systems or Equipment
Plumbing: Replace any corroded/leaky traps and where demolition exposes tub or shower traps assure those are sound before completing repairs. Watch for and repair any future plumbing leaks promptly.
Refrigerator: clean (using a HEPA vacuum) coils and grille as well as dust below and at other sides of the refrigerator. When cleaning the coil check that the evaporator tray is clean and that it is not spilling over. This is a common source of indoor mold and potentially Legionnaire’s disease.
Prevent future basement flooding: to reduce the risk of building flooding during severe storms and storm drain backup I have these related suggestions that you should consider:
Outside water: Repair and monitor possible outside sources of leaks and water entry I’ve already cited, as part of ongoing building maintenance and monitoring
Check valves: Install check valves in any basement or other low-level drains to assure that during severe weather and local flooding you do not have water entering the building through backing up sewers, septic system piping, or storm drains
Sump pumps: Install battery-backup sump pump system to assure that should water nonetheless appear in the basement level, it can be removed from the building during an emergency, even if electrical power is temporarily lost. See our Sump Pumps guide at http://InspectAPedia.com/septic/Sump_Pumps.htm
6. General Notes on Sooting, Stains, and Mold Stain Prevention
Mold on drywall can not normally be cleaned sufficiently as portions of the mold growth are inside the gypsum and paper. Except in the case of trivial soil or mold on a painted drywall surface, replacement is the effective means of remediation for this material. Material removal is more reliable than simple surface disinfection, but steps must be taken to avoid contaminating the building with construction dust and mold spores.
Check/remove baseboard trim at floors: where floors or wall cavities have been flooded I often find mold growth on the back of baseboard or door trim, and on either or both sides of drywall or plaster where trim was installed; don’t assume that there is no mold in a wall cavity or that there is no mold behind wood trim just because no mold is visible on the wall surface.
Avoid mold growth: Reduce or eliminate the conditions that encourage mold and fungal growth. In any building where there is recurrent water entry, there is risk of the conditions which produce or amplify mold growth.
General moisture control: keep un-wanted water and moisture from entering the building from outside (maintain roof drainage system to avoid spillage at the foundation, slope grade away from the building, provide flashing and sealant at openings), avoid generating unwanted moisture inside (unattended plumbing leaks, missing venting, un-covered dirt crawl spaces, open stone foundations), and remove unwanted high-levels of moisture inside (dehumidification, ventilation, drainage)
Depending on species, mold spores may die or become dormant, failing to reproduce, at low moisture levels. If the building is sufficiently damp or wet again, mold growth will probably recur.
Always identify and correct obvious outside sources of water entry before going to the expense of costly basement waterproofing systems, though in some cases such systems may be necessary.
Install a high-capacity dehumidifier and run it until basement moisture is in the 45-55% range. You may want to purchase an inexpensive relative-humidity indicator for this purpose. (See Radio Shack products.)You can drain the dehumidifier by a condensate pump or to a sump pit so it can run unattended (except for periodic cleaning).
Missing backup condensate drain – can be compensated-for by installing a leak detection system in the condensate tray. This design will shut down the A/C system if a leak is detected, preventing water damage to the building from this source.
Questions & Answers about curing thermal tracking stains in buildings
Question: Is there a professional whom we can contact for help in curing thermal tracking stains?
First of all, I want to say thank you! Your site is the ONLY site that I was able to find the answer to what is wrong with my house. I now know that I have Thermal Tracking. My question to you is: Is there a professional that I can contact to take care of this problem? What type of person would do that? My home is 12 years old and we’ve been dealing with this every since we bought it. We did not build it, but purchased it from a couple that had lived here for only one year. Thank you for your help! - Cindy
Reply: Yes: home inspectors, energy consultants, experienced insulation contractors
Sure, here is a concise recap of our advice on curing thermal tracking stains (What is Thermal Tracking) in buildings: (see details above in this article)
Thermal tracking stains are essentially the combination of these factors:
Interior moisture levels that produce condensate on cooler sections of walls or ceilings (see HUMIDITY LEVEL TARGET)
Level of indoor house dust or soot
Drafts that move extra air across some surfaces can also be a factor in thermal tracking stain location. (See AIR LEAK DETECTION TOOLS)
Simple cleaning and painting will of course remove or cover the stains from thermal tracking. But unless the cause of these stains is corrected as well, they will return.
The optimum "fix" for these indoor stains on walls and ceilings and even sometimes on floors or carpets near walls (Floor Carpet Thermal Tracking Stains) is to improve building insulation, but of course that's the most costly step too, but then again, improving insulation returns savings in lower heating or
cooling costs for the building as well as increased comfort.
Short of improving insulation you can find and fix sources of excessive indoor moisture, stop using scented candles or other indoor burning things that produce soot, and improve housekeeping (better, HEPA-rated vacuum cleaner, for example) so that the level of house dust is reduced. And of course find and fix air leaks and drafts.
An experienced home inspector or energy auditor (EXPERT DIRECTORY) should be able to help you track down and prioritize the locations and causes of the four thermal tracking stain factors I listed above.
References to Detailed Articles on Diagnosing & Curing Odors, Stains, Mold, Moisture Control in buildings
Building Pathology, Deterioration, Diagnostics, and Intervention, Samuel Y. Harris, P.E., AIA, Esq., ISBN 0-471-33172-4, John Wiley & Sons, 2001
Understanding Ventilation, John Bower, The Healthy House Institute, ISBN 0-9637156-5-8, 1995
Dampness in buildings, Diagnosis, Treatment, Instruments, T.A. Oxley & E.G. Gobert, ISBN 0-408-01463-6, Butterworths, 1983-1987
“Moisture Control in buildings: Putting Building Science in Green Building,” Alex Wilson, Environmental Building News, Vol. 12. No. 7. [Good tutorial, “Moisture 101” outlining the physics of moisture movement in buildings and a good but incomplete list of general suggestions for moisture control – inadequate attention given to exterior conditions such as roof and surface drainage defects which are among the most-common sources of building moisture and water entry. -DJF]
Critique, contributions wanted: Contact Us to suggest corrections or additions to articles at this website, and if you wish, to receive online listing and credit as a contributor. Particular thanks are due to the many experts and also consumers who read and critique technical articles at InspectAPedia.com.
Additional technical contributors & reference sources for this article are listed below.
Use links just below or at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.
Thanks to Alan Carson, Carson Dunlop, Associates, Toronto, for technical critique and content suggestions regarding thermal tracking.
Thanks to Stacy O.
for asking for clarification on the causes, spacing, and what to do about thermal tracking Sept Nov 2007
Thanks to Penina C. for discussing clean-up and prevention of indoor thermal tracking stains, October 2010.
Books & Articles on Building & Environmental Inspection, Testing, Diagnosis, & Repair
Our recommended books about building & mechanical systems design, inspection, problem diagnosis, and repair, and about indoor environment and IAQ testing, diagnosis, and cleanup are at the InspectAPedia Bookstore. Also see our Book Reviews - InspectAPedia.
The Home Reference Book - the Encyclopedia of Homes, Carson Dunlop & Associates, Toronto, Ontario, 2010, $69.00 U.S., is available from Carson Dunlop. The Home Reference Book is a bound volume of more than 450 illustrated pages that assist home inspectors and home owners in the inspection and detection of problems on buildings. The text is intended as a reference guide to help building owners operate and maintain their home effectively. InspectAPedia.com ® author/editor Daniel Friedman is a contributing author. Field inspection worksheets are included at the back of the volume.
"The Elimination of Unsafe Guardrails, a Progress Report," Elliott O. Stephenson, Building Standards, March-April 1993
"Are Functional Handrails Within Our Grasp" Jake Pauls, Building Standards, January-February 1991
Access Ramp building codes:
UBC 1003.3.4.3
BOCA 1016.3
ADA 4.8.2
IBC 1010.2
Access Ramp Standards:
ADA (Americans with Disabilities Act), Public Law 101-336. 7/26/90 is very often cited by other sources for good design of stairs and ramps etc. even where disabled individuals are not the design target.
ANSI A117.4 Accessible and Usable buildings and Facilities (earlier version was incorporated into the ADA)
ASTM F 1637, Standard Practice for Safe Walking Surfaces, (Similar to the above standards)
American Plywood Association, APA, "Portland Manufacturing Company, No. 1, a series of monographs on the history of plywood manufacturing",Plywood Pioneers Association, 31 March, 1967, www.apawood.org
Animal Allergens: Dog, Cat, and Other Animal Dander - Cleanup & Prevention Information for Asthmatics and regarding Indoor Air Quality.
Asbestos: How to find and recognize asbestos in buildings - visual inspection methods, list of common asbestos-containing materials
Asbestos products and their history and use in various building materials such as asphalt and vinyl flooring includes discussion which draws on Asbestos, Its Industrial Applications, D.V. Rosato, engineering consultant, Newton, MA, Reinhold Publishing, 1959 Library of Congress Catalog Card No.: 59-12535 (out of print).
Asbestos Identification and Testing References
Asbestos Identification, Walter C.McCrone, McCrone Research Institute, Chicago, IL.1987 ISBN 0-904962-11-3. Dr. McCrone literally "wrote the book" on asbestos identification procedures which formed
the basis for current work by asbestos identification laboratories.
Stanton, .F., et al., National Bureau of Standards Special Publication 506: 143-151
Pott, F., Staub-Reinhalf Luft 38, 486-490 (1978) cited by McCrone
ASHRAE resource on dew point and wall condensation - see the ASHRAE Fundamentals Handbook, available in many libraries. The following three ASHRAE Handbooks are also available at the InspectAPedia bookstore in the third page of our Insulate-Ventilate section:
2005 ASHRAE Handbook : Fundamentals : Inch-Pound Edition (2005 ASHRAE HANDBOOK : Fundamentals : I-P Edition) (Hardcover), Thomas H. Kuehn (Contributor), R. J. Couvillion (Contributor), John W. Coleman (Contributor), Narasipur Suryanarayana (Contributor), Zahid Ayub (Contributor), Robert Parsons (Author), ISBN-10: 1931862702 or ISBN-13: 978-1931862707
2004 ASHRAE Handbook : Heating, Ventilating, and Air-Conditioning: Systems and Equipment : Inch-Pound Edition (2004 ASHRAE Handbook : HVAC Systems and Equipment : I-P Edition) (Hardcover)
by American Society of Heating, ISBN-10: 1931862478 or ISBN-13: 978-1931862479
"2004 ASHRAE Handbook - HVAC Systems and Equipment The 2004 ASHRAE HandbookHVAC Systems and Equipment discusses various common systems and the equipment (components or assemblies) that comprise them, and describes features and differences. This information helps system designers and operators in selecting and using equipment. Major sections include Air-Conditioning and Heating Systems (chapters on system analysis and selection, air distribution, in-room terminal systems, centralized and decentralized systems, heat pumps, panel heating and cooling, cogeneration and engine-driven systems, heat recovery, steam and hydronic systems, district systems, small forced-air systems, infrared radiant heating, and water heating); Air-Handling Equipment (chapters on duct construction, air distribution, fans, coils, evaporative air-coolers, humidifiers, mechanical and desiccant dehumidification, air cleaners, industrial gas cleaning and air pollution control); Heating Equipment (chapters on automatic fuel-burning equipment, boilers, furnaces, in-space heaters, chimneys and flue vent systems, unit heaters, makeup air units, radiators, and solar equipment); General Components (chapters on compressors, condensers, cooling towers, liquid coolers, liquid-chilling systems, centrifugal pumps, motors and drives, pipes and fittings, valves, heat exchangers, and energy recovery equipment); and Unitary Equipment (chapters on air conditioners and heat pumps, room air conditioners and packaged terminal equipment, and a new chapter on mechanical dehumidifiers and heat pipes)."
1996 Ashrae Handbook Heating, Ventilating, and Air-Conditioning Systems and Equipment: Inch-Pound Edition (Hardcover), ISBN-10: 1883413346 or ISBN-13: 978-1883413347 ,
"The 1996 HVAC Systems and Equipment Handbook is the result of ASHRAE's continuing effort to update, expand and reorganize the Handbook Series. Over a third of the book has been revised and augmented with new chapters on hydronic heating and cooling systems design; fans; unit ventilator; unit heaters; and makeup air units. Extensive changes have been added to chapters on panel heating and cooling; cogeneration systems and engine and turbine drives; applied heat pump and heat recovery systems; humidifiers; desiccant dehumidification and pressure drying equipment, air-heating coils; chimney, gas vent, fireplace systems; cooling towers; centrifugal pumps; and air-to-air energy recovery. Separate I-P and SI editions."
Principles of Heating, Ventilating, And Air Conditioning: A textbook with Design Data Based on 2005 AShrae Handbook - Fundamentals (Hardcover), Harry J., Jr. Sauer (Author), Ronald H. Howell, ISBN-10: 1931862923 or ISBN-13: 978-1931862929
Brick Nogging, Historical Investigation and Contemporary Repair, Construction Specifier, April 2006. Historical use of brick in timber-framed buildings, drawing on the investigations of the Kent Tavern in Calais, VT.
"Brick nogging is a European method of construction which was brought to the new world in the early-nineteenth century. It was a common construction method that employed masonry as infill between the vertical uprights of wood framing." -- quoting the web article review.
Building Research Council, BRC, nee Small Homes Council, SHC, School of Architecture, University of Illinois at Urbana-Champaign, brc.arch.uiuc.edu. "The Small Homes Council (our original name) was organized in 1944 during the war at the request of the President of the University of Illinois to consider the role of the university in meeting the demand for housing in the United States. Soldiers would be coming home after the war and would be needing good low-cost housing. ... In 1993, the Council became part of the School of Architecture, and since then has been known as the School of Architecture-Building Research Council. ... The Council's researchers answered many critical questions that would affect the quality of the nation's housing stock.
How could homes be designed and built more efficiently?
What kinds of construction and production techniques worked well and which did not?
How did people use different kinds of spaces in their homes?
What roles did community planning, zoning, and interior design play in how neighborhoods worked
"An Example of Colonial Paneling", Norman Morrison Isham, The Metropolitan Museum of Art Bulletin, Vol. 6, No. 5 (May, 1911), pp. 112-116, available by JSTOR.
Dust from the World Trade Center collapse following the 9/11/01 attack: the lower floors of this building contained spray-on fire-proofing asbestos materials.
Energy Savers: Whole House Systems Approach to Energy Efficient Home Design [copy on file as /interiors/Whole_House_Energy_Efficiency_DOE.pdf ] - U.S. Department of Energy
"Energy Savers: Whole-House Supply Ventilation Systems [copy on file as /interiors/Energy_Savers_Whole-House_Supply_Vent.pdf ] - ", U.S. Department of Energy energysavers.gov/your_home/insulation_airsealing/index.cfm/mytopic=11880?print
"Energy Savers: Whole-House Exhaust Ventilation Systems [copy on file as /interiors/Energy_Savers_Whole-House_Exhaust.pdf ] - ", U.S. Department of Energy energysavers.gov/your_home/insulation_airsealing/index.cfm/mytopic=11870
"Energy Savers: Ventilation [copy on file as /interiors/Energy_Savers_Ventilation.pdf ] - ", U.S. Department of Energy
"Energy Savers: Natural Ventilation [copy on file as /interiors/Energy_Savers_Natural_Ventilation.pdf ] - ", U.S. Department of Energy
"Energy Savers: Energy Recovery Ventilation Systems [copy on file as /interiors/Energy_Savers_Energy_Recovery_Venting.pdf ] - ", U.S. Department of Energy energysavers.gov/your_home/insulation_airsealing/index.cfm/mytopic=11900
"Energy Savers: Detecting Air Leaks [copy on file as /interiors/Energy_Savers_Detect_Air_Leaks.pdf ] - ", U.S. Department of Energy
"Energy Savers: Air Sealing [copy on file as /interiors/Energy_Savers_Air_Sealing_1.pdf ] - ", U.S. Department of Energy
Falls and Related Injuries: Slips, Trips, Missteps, and Their Consequences, Lawyers & Judges Publishing, (June 2002), ISBN-10: 0913875430 ISBN-13: 978-0913875438 "Falls in the home and public places are the second leading cause of unintentional injury deaths in the United States, but are overlooked in most literature. This book is unique in that it is entirely devoted to falls. Of use to primary care physicians, nurses, insurance adjusters, architects, writers of building codes, attorneys, or anyone who cares for the elderly, this book will tell you how, why, and when people will likely fall, what most likely will be injured, and how such injuries come about. "
Fiberglass: Indoor Air Quality Investigations: Health Concerns About Airborne Fiberglass: Fiberglass in Indoor Air from HVAC ducts, and Building Insulation
Humidity: What indoor humidity should we maintain in order to avoid a mold problem?
Ice Dam Leaks in building attics and roof cavities, how to inspect for evidence of leaks, identify causes, and correct bad attic ventilation, improper roof venting, and these causes of attic mold or roof structure damage
Insulation: Selecting Insulation for New Home Construction, U.S. Department of Energy - "Your state and local building codes probably include minimum insulation requirements, but to build an energy-efficient home, you may need or want to exceed them. For maximum energy efficiency, you should also consider the interaction between the insulation and other building components. This is called the whole-house systems design approach."
Insulation Types, table of common building insulation properties from U.S. DOE. Readers should see INSULATION R-Values & Properties our own table of insulation properties that includes links to articles describing each insulation material in more detail.
Lighting, proper use of: proper aiming of a good flashlight can disclose hard to see but toxic light or white mold colonies on walls.
The National Institute of Standards and Technology, NIST (nee National Bureau of Standards NBS) is a US government agency - see www.nist.gov
"A Parametric Study of Wall Moisture Contents Using a Revised Variable Indoor Relative Humidity Version of the "Moist" Transient Heat and Moisture Transfer Model [copy on file as/interiors/MOIST_Model_NIST_b95074.pdf ] - ", George Tsongas, Doug Burch, Carolyn Roos, Malcom Cunningham; this paper describes software and the prediction of wall moisture contents. - PDF Document from NIS
Pergo AB, division of Perstorp AB, is a Swedish manufacturer or modern laminate flooring products. Information about the U.S. company can be found at http://www.pergo.com where we obtained historical data used in our discussion of the age of flooring materials in buildings.
Piquet Wall Construction: See this photo of
piquet wall construction - involving timber-framed wall construction with long top girts, diagonal timber bracing, and small diameter logs
placed vertically along with concrete chinking to fill in the wall plane.
Plank House Construction: weblog from plankhouse.wordpress.com/2009/01/25/plank-house-construction/ and where plank houses were built by native Americans, see
Large 1:6 Scale Plank House Construction / P8094228,
Photographer: Mike Meuser
06/12/2007 documented at yurokplankhouse.com where scale model Museum quality Yurok Plank Houses are being sold to raise money for the Blue Creek - Ah Pah Traditional Yurok Village project.
Re-Bath, tub lining products is a bath tub relining manufacturer and distributor located in Tempe, Arizona - see rebath.com
Rubblestone Wall Filler: See this Lartigue House using exterior-exposed rubblestone filler between vertical timbers of a post and beam-framed Canadian building.
Slips, Trips, Missteps and Their Consequences, Second Edition, Gary M. Bakken, H. Harvey Cohen,A. S. Hyde, Jon R. Abele, ISBN-13: 978-1-933264-01-1 or
ISBN 10: 1-933264-01-2,
available from the publisher, Lawyers ^ Judges Publishing Company,Inc., www.lawyersandjudges.com sales@lawyersandjudges.com and also from the InspectAPedia Bookstore (Amazon.com)
The Stairway Manufacturers' Association, (877) 500-5759, provides a pictorial guide to the stair and railing portion of the International Residential Code. [copy on file as http://www.stairways.org/pdf/2006%20Stair%20IRC%20SCREEN.pdf ] -
How to Clean Moldy Wood Framing & Sheathing How to clean/seal mold from/on exposed lumber or plywood subfloor or roof sheathing indoors - some suggestions based on our field and laboratory research
Lighting, proper use of: proper aiming of a good flashlight can disclose hard to see but toxic light or white mold colonies on walls.
Manufactured & Modular Homes: Modular Building Systems Association, MBSA, modularhousing.com, is a trade association promoting and providing links to contact modular builders in North America. Also see the Manufactured Home Owners Association, MHOAA, at www.mhoaa.us. The Manufactured Home Owners Association of America is a National Organization dedicated to the protection of the rights of all people living in Manufactured Housing in the United States.
Stuff that is not mold but is often mistaken for it - things you may not want to test. Also, not all "black mold" is toxic - here are examples of harmless black mold.
Mold-Resistant Building Practices, advice from an expert on how to prevent mold after a building flood and how to prevent mold growth in buildings by selection of building materials and by anti-mold construction details.
Slips, Trips, Missteps and Their Consequences, Gary M. Bakken, H. Harvey Cohen, Jon R. Abele, Alvin S. Hyde, Cindy A. LaRue, Lawyers and Judges Publishing; ISBN-10: 1933264012 ISBN-13: 978-1933264011
Slips, Trips, Missteps and Their Consequences, Second Edition, Gary M. Bakken, H. Harvey Cohen,A. S. Hyde, Jon R. Abele, ISBN-13: 978-1-933264-01-1 or ISBN 10: 1-933264-01-2, available from the publisher, Lawyers & Judges Publishing Company,Inc., www.lawyersandjudges.com sales@lawyersandjudges.com and also from the InspectAPedia Bookstore (Amazon.com)
Steps and Stairways, Cleo Baldon & Ib Melchior, Rizzoli, 1989.
"The Dimensions of Stairs", J. M. Fitch et al., Scientific American, October 1974.
"The Elimination of Unsafe Guardrails, a Progress Report," Elliott O. Stephenson, Building Standards, March-April 1993
"Are Functional Handrails Within Our Grasp" Jake Pauls, Building Standards, January-February 1991
"Weather-Resistive Barriers [copy on file as /interiors/Weather_Resistant_Barriers_DOE.pdf ] - ", how to select and install housewrap and other types of weather resistive barriers, U.S. DOE
Weaver: Beaver Board and Upson Board:
Beaver Board and Upson Board: History and Conservation of Early Wallboard, Shelby Weaver,
APT Bulletin, Vol. 28, No. 2/3 (1997), pp. 71-78, Association for Preservation Technology International (APT), available online at JSTOR.
Mobile View
What to Do About Thermal Tracking, Building Air Leaks, & Heat Loss
