Here we provide a photo guide to identifying types of plaster, lath, Beaver board, Upson Board, and Drywall to help identify these interior building wall and ceiling coverings and as an aid in determining the age of a building.

This article discusses the identification and history of older interior building surface materials such plaster and lath, Beaverboard, and Drywall - materials that were used to form the (usually) non-structural surface of building interior ceilings and walls.

The age of a building can be determined quite accurately by documentation, but when documents are not readily available, visual clues such as those available during a professional home inspection can still determine when a house was built by examining its components, building materials, even nails, fasteners, and types of saw cuts on lumber.

Also see PLASTER TYPE IDENTIFICATION for a photo guide to different plastering systems used in buildings. See Sheathing Homasote & Other Board for a discussion of exterior wall sheathing fiberboard products such as Homasote® and Celotex® insulating roof, wall, and foundation board products. For plaster type surfaces used on building exteriors, see STUCCO WALL METHODS & INSTALLATION.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

Guide to Plaster & Drywall & Other Interior Wall Coverings as Indicators of Building Age

History of Types Interior Plaster: split wood lath, sawn wood lath, expanded metal lath, "rock lath" or plasterboard, drywall, & tainted Chinese drywall

Gypsum Board Lath Sheets Used for Plaster Walls & Ceilings = Rock Lath, Plaster Lath, or Rock Lathe

Our photo (above left) shows perforated gypsum board panels that were used as plaster lath.

Solid gypsum board (above right, without holes) was also used as a support for a plaster finish coat. Often this material was applied in two-foot widths - a feature that the inspector may spot by noticing scalloped ceilings and walls or even cracks that appear regularly on 24" centers. See PLASTER TYPE IDENTIFICATION for details.

Expanded Mesh Metal Lath for Plaster Walls

Our photo shows expanded mesh metal lath used as plaster lath support for ceilings and walls; this material was also used on building exterior walls to support a stucco finish. Metal lath was on occasion used also to support poured concrete ceilings (shown here) - unlikely to provide adequate strength for a thick pour unless additional reinforcement was used. Depending on building age we may find a mixture of multiple types of plaster support, wood lath, gypsum board lath, and metal lath. Wall or ceiling or stucco crack patterns may follow the borders of metal lath segments, especially if the lath was not securely nailed. See PLASTER TYPE IDENTIFICATION for details.

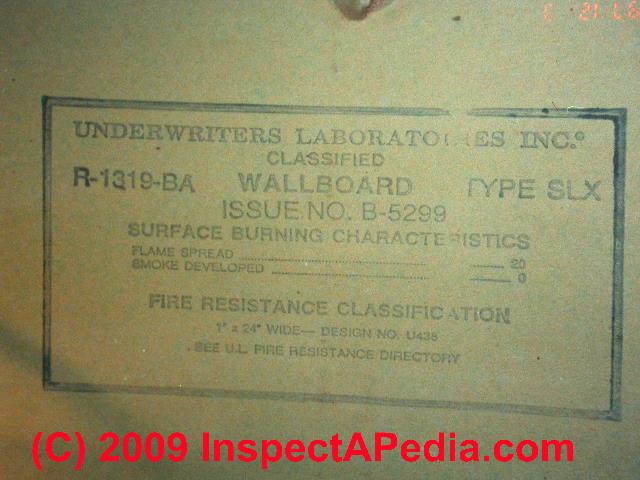

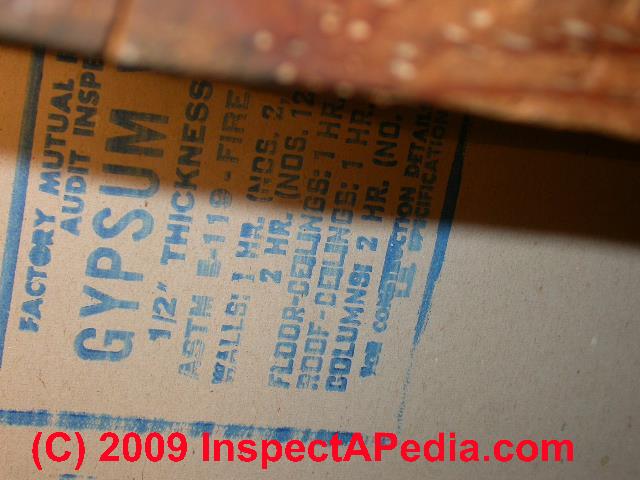

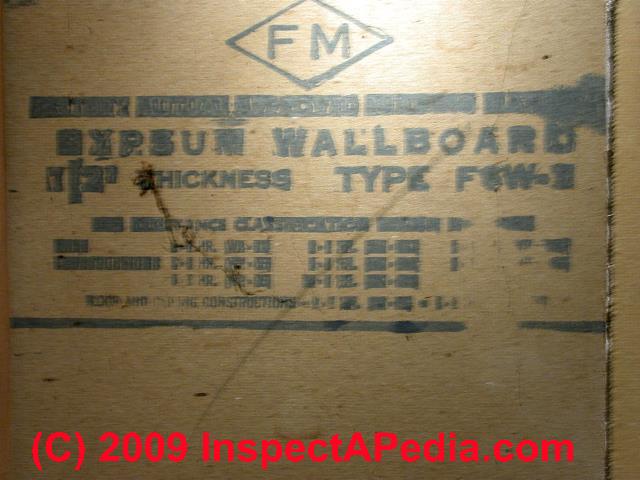

Identifying Stamps on Drywall Used for Interior Wall & Ceiling Surfaces

Our photos (above and below) show modern identification stamps or labels that may be found drywall products used for interior walls and ceilings. Also see additional drywall identifying number stamps found at Drywall Gypsum Board Used for Exterior Wall Sheathing.

Where there indoor environmental concerns or corrosion damage to electrical wiring, copper pipes, air conditioning equipment, etc. see CHINESE DRYWALL HAZARDS.

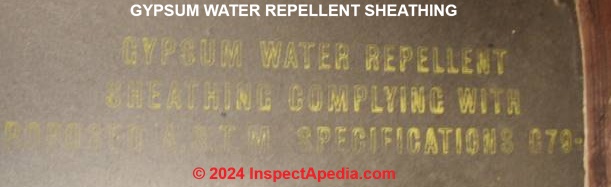

Drywall Gypsum Board Used for Exterior Wall Sheathing

We estimate that from 1950 to 1965 gypsum board was used as exterior wall sheathing on a variety of buildings, especially low-cost structures and in panelized construction as we explain along with our photographs shown below. We also find gypsum board sheathing used on some roofs, believe it or not. In some applications a water repellent paper was used to improve the product's durability, as we show in this wall cavity side photograph of identifying marks on gypsum board sheathing.

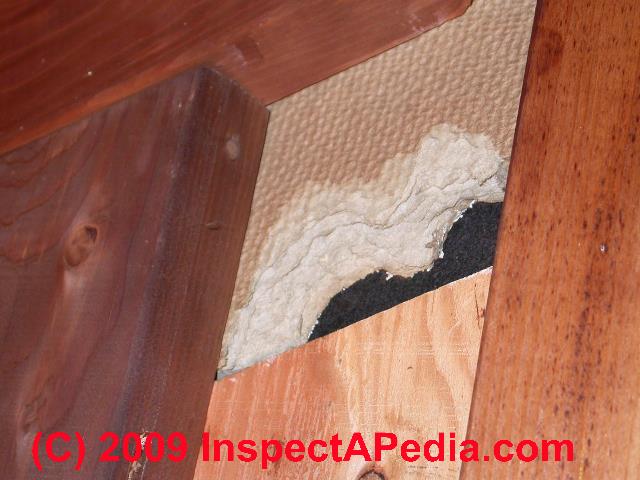

When gypsum board was used for exterior wall sheathing, as we show in this interior photo (above left), let-in cross bracing was required at building corners. The white paint on the wall cavity side of the gypsum board shown in this photo was added during building renovations to address water damage and to improve water resistance.

Notice the pair of wall studs in the left hand photo? That stud pair marks the abutment of two panelized wall sections in this building. The corner panels were built flat in the panelized home factory and measure just 1/2" under 8' x 4'. Larger 8' x 8' wall panels were also produced and were used for this home.

These details permit the conclusion that this home was constructed using pre-fab exterior and interior wall panels, all clad with gypsum board that was glued to the wall studs for extra strength. Our photo at above right shows additional bracing that was incorporated into the gypsum-clad wall panel bottom, along with an assembly wire.

Details of this panelized construction home are at Panelized Construction.

Mold growth on the wall cavity side of drywall is common when there have been leaks into the wall cavity. Our photo (left) shows mold growth on the wall cavity side of gypsum board used as exterior wall sheathing on a 1960's condominium in New York. See SAMPLING DRYWALL for more information about mold growth on drywall and gypsum board products. Also see Mold-Resistant Building Practices and  Mold proof drywall? You Must Be Kidding!

The photographs above show two different gypsum board wall sheathing products that employ a textured paper surface. At right is a modern product found in a home built in the 1990's.

History of the Use of Wood and other Wall Paneling in North America

Early Colonial Wall Paneling & Wainscoting

Early colonial paneling is described by Isham.

(A concise history of wall coverings in residential buildings, more photos, & dates in process, CONTACT us, contributions invited)

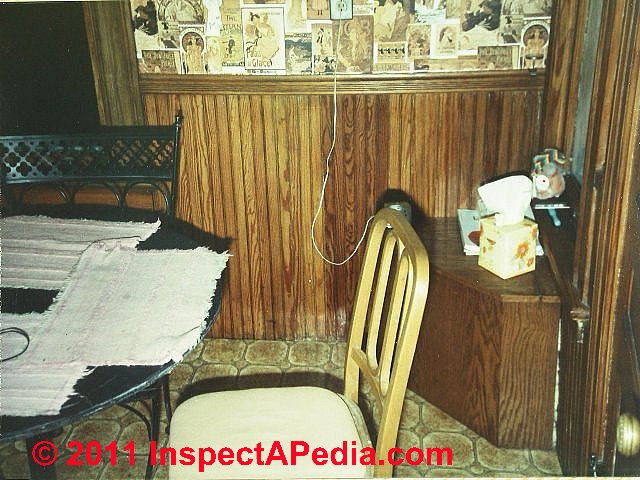

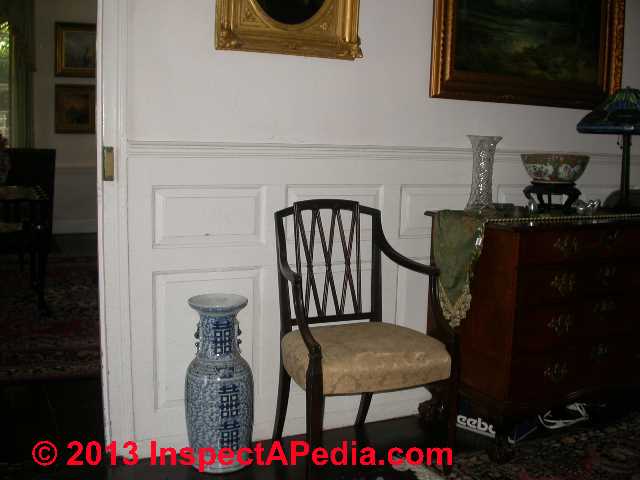

Wainscot Wall Covering

Wainscoting or "wainscot" is a wood wall finish applied to the lower portion of a building interior, typically about three to four feet up from floor level, and usually capped with a chair rail and usually applied with board edge joints butted vertically as in our photo.

Traditional wainscot is constructed by nailing individual boards to the wall surface. Modern "wainscot" panels are sold in 4' x 8' sheets and cut to fit, producing a beadboard surface that looks like traditional wainscot. Wainscot is an old term, possibly from the 1300's, that in its contemporary usage derives from the British Wainscot, "a fine grade of oak imported for woodwork" - Merriam Webster. In North America wainscot has been in use since the colonial era.

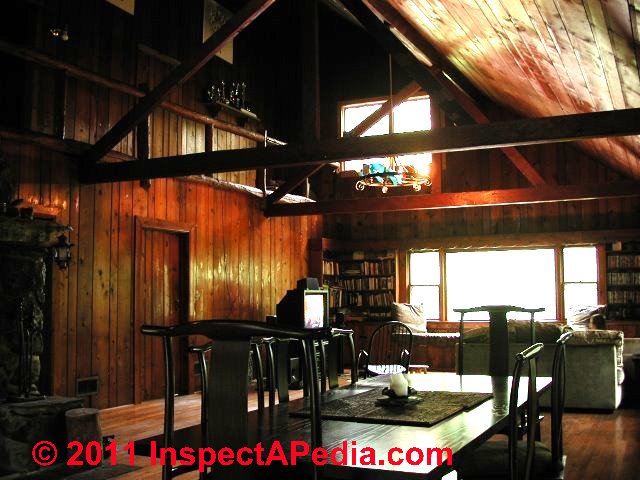

Wooden wall paneling - tongue and groove pine and other woods

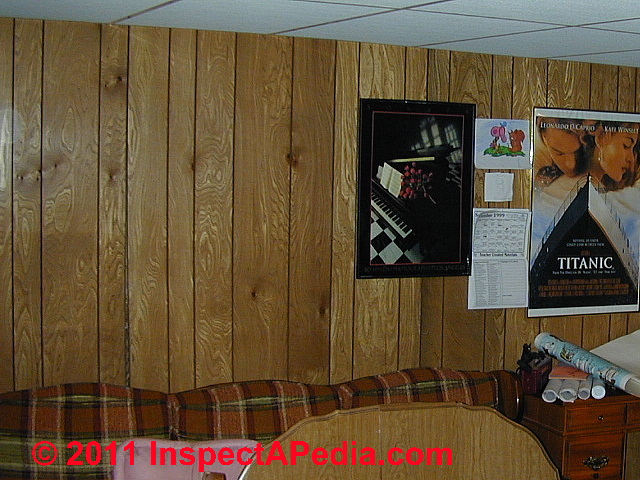

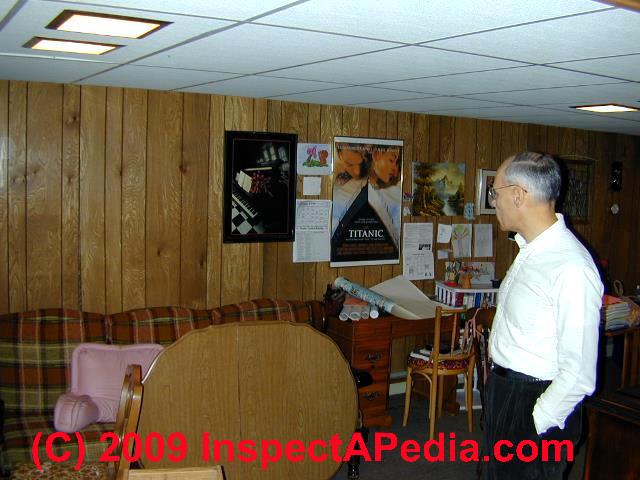

Wall paneling in 4' x 8' sheets

(A concise history of wall paneling in residential buildings, more photos, & dates in process, CONTACT us, contributions invited)

History of Beaver Board & Upson Board Wall Coverings in North America

Beaver-board and Upson Board are a wood fiber product used as an inexpensive interior wall covering and draft blocker from about 1903 when Beaver Board was invented by J.P. Lewis in Beaver Falls, NY, to the 1950s, with its near-twin product Upson Board continuing in use into at least the 1980's.

Our photographs (below) show this product from it's back or wall cavity side. On the exposed side this wood fiberboard product was usually painted and its joints covered with wood lath or other trim. In some applications it was covered with wallpaper. In some homes it was later covered with drywall to provide a more fire-resistant surface.

Readers should see Sheathing Homasote & Other Board for a discussion of exterior wall sheathing fiberboard products such as Homasote® and Celotex® insulating roof, wall, and foundation board products. There we also include photographs of insulating wallboard products that have been attacked by mold or insects.

Beaverboard takes its name from the Beaver N.Y. and the Beaver Board Companies that produced this product until that firm was purchased by Certain Teed Prod cuts in 1928. Beaver Board and Upson Board were produced by the Beaver Wood Fibre Company Limited, in Thorold, Ontario.

Beaver board's competition was from Upson Processed board (John Upson, Upson Company, Lockport, NY) which was produced beginning in 1910. As late as the 1950's Upson Board was used in prefabricated houses and exterior building sheathing and in recreational vehicles. Upson purchased the Beaver Board plant from CertainTeed in 1955. Upson began its decline in the 1970's and closed in 1984, opening later that year as Niagara Fiberboard.

Beaverboard and other paper or fiberboard products were used for exterior wall sheathing, as we show in this photograph at left. More widespread and recognized are insulating board sheathing products discussed at Sheathing Homasote & Other Board.

How to Identify Beaver Board and Upson Board

Masonite™ and Other Hardboard Interior Wall & Ceiling Products: Identification
