How do Lightning Protection Systems Work?
|

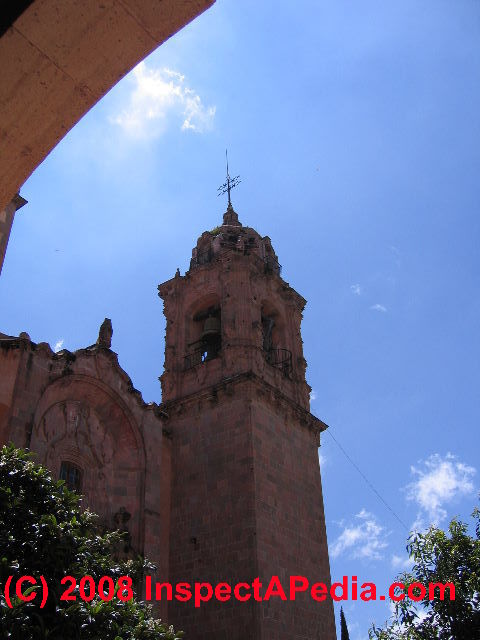

Our photo of la Iglesia Valencia in Guanajuato, Mexico, shows a large iron filigree cross atop the church bell tower. The church has installed a lightning protection system which encompasses this appurtenance; cabling from the iron cross, acting as an air terminal, is routed to ground as we show in a photograph just below.
Lightning protection systems control electrical discharges
by directing them through a low-resistance path to the ground, avoiding passage
through parts of a structure and reducing risk of fire or other damage.
Air terminals (rods - the sketch at page top is of a lightning protection system terminal rod tip) are fastened to the building to intercept electric discharges which
might otherwise strike a building component itself, such as a chimney or metal roof.
|
|
Electrical discharges striking the air terminal are directed through
heavy duty metal conductors to a grounding system (rods driven into the soil) and thence into the
earth.

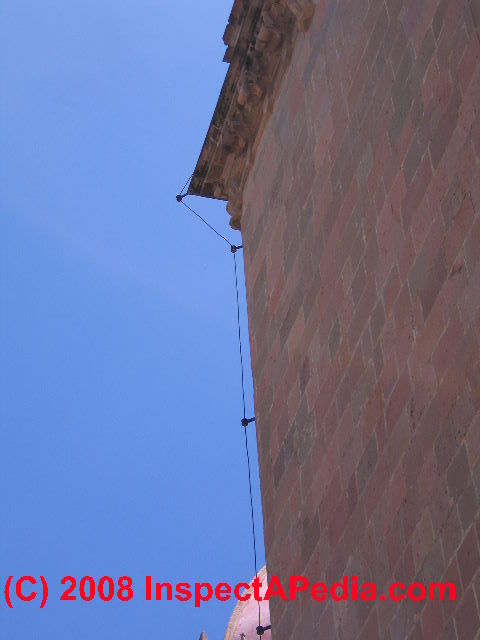

Our photo at left shows the lightning protection system cabling running along the corner of a tall church steeple in Guanajuato, Mexico. This church, la Valencia, is located on a hilltop in a mountainous area.
Although there is no record of his having traveled to Mexico in the course of his tests involving lightning, the lightning protection system was first invented by Ben Franklin in 1752.
|
...
