Design Details for Outdoor Lightning Protection Systems Using Aluminum Components

Example Lightning Protection System Installation Details for Outdoor Systems

[The photographs of details of an old lightning protection system shown here were NOT the work of any of the companies or sources described at this website.] As with any good construction project, the contract will include a statement that "All equipment shall be installed in a neat workmanlike manner by an experienced installer. That last part, "experienced installer" is very important in this case since sloppy or improper details can increase rather than reduce the hazards of lightning damage. All components and work shall meet or exceed all national safety and electrical codes including the Lightning Protection Institute (LPI) and the National Fire Protection Association (NFPA), and all components used shall be approved and listed for that purpose by the Underwriters Laboratories (UL) wherever feasible. All lightning protection system cabling shall be installed along the side of the main, highest ridge of the building or building-section being protected, along the rake or gable-end boards, and shall continue down to ground level along building corners at inconspicuous locations such as near downspouts or trim All lightning protection system cabling shall be installed in a horizontal or downward direction and shall not contain U or V-shaped sections or pockets. The source of all materials is usually listed in order to assure that they are accountable and code-compliant. These lightning protection system specifications and details were provided to us during presentations on lightning protection systems provided to NY ASHI home inspectors and conducted by Associated Lightning Rod Co..

Example Lighting Protection System Materials for Outdoor Installations

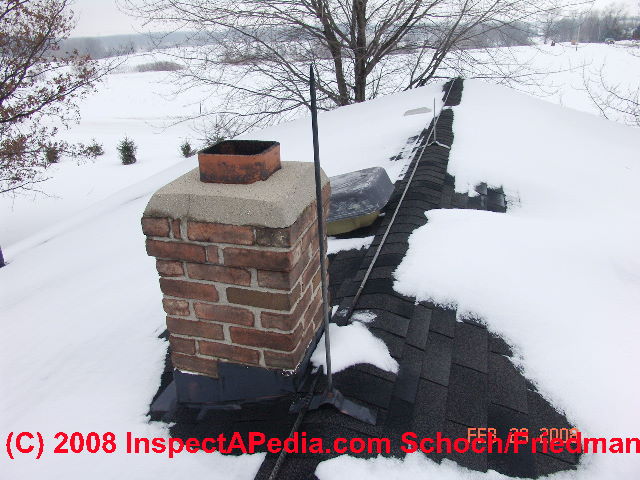

• Building chimneys shall be protected with an air terminal to be placed no more than 2' from any outside corner.


• Lightning protection system air terminals shall be pointed, solid round aluminum of 1/2" diameter or greater and shall project no less than 10" above the building component or object to be protected from lightning. Air terminals shall be located and spaced according to UL and LPI code requirements, including placement of terminals within 2' of outside corners and at intervals no greater than 20 horizontal feet (along the ridge line).

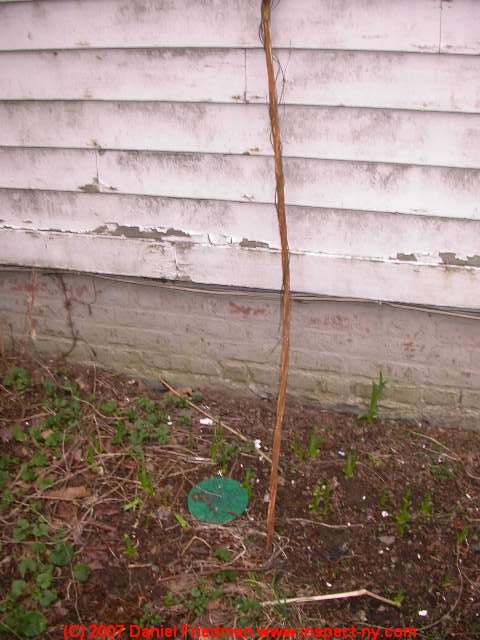

• Air terminal bases shall be aluminum, using bolted or crimped cable connectors and shall be securely mounted with stainless steel screws, nails, or bolts. [By contrast, note the older, rusted and loose components in the lightning protection system photographs shown above.-DF]


• Lightning protection system cabling shall be Class I conductors, 24-strand 14-gauge aluminum cable, (102#/1000Ft., 98k circular mils or equivalent)


• Cable support fasteners shall be 1/2" wide aluminum strips spaced no greater than at 3' intervals.


• Grounding locations shall be properly connected to copper [where rods extend below ground level] using a 3 1/2" x 3/4" hexagonal bimetallic 4-bolt splice connector located 18" above grade.


• Ground rods shall be at least 1/2" in diameter and 11' long, and driven into the ground 10', leaving 1' of the ground rod exposed above ground and 10' below ground [this is the UL standard]. Ground rods shall be connected to the lightning protection system using a two-bolt bronze clamp of at least 1.5" long and using stainless steel cap screws. UL requires that at least two ground rods shall be installed.


• Metal components on the building such as antennas, weather vanes, and metal gutters are connected to the roof or down conductor


• Other bonding devices cable splices, and other miscellaneous connectors shall be aluminum with bolt pressure or crimp connections to stainless steel.


• Other hardware such as miscellaneous bolts, nuts, nails, screws, shall be stainless steel.


• Building water piping shall be bonded to the lightning protection system with a full-sized copper conductor and a lead-coated water pipe clamp.


• Surge protection devices are installed at receptacles on for circuits serving electronic equipment like computers, TV's, or other electronics. Surge protection may also be installed at the electrical panel to protect the circuit serving a well or well pump, or to protect equipment from strikes drawn to steel well casings protruding above ground as well as to protect building appliances.


• Lightning protection systems for commercial buildings have similar requirements and add additional air terminals and a "mid roof" conductor at 50' intervals (or less) on larger and flat roof buildings.

[The photographs of details of an old lightning protection system shown here were NOT the work of any of the companies or sources described at this website.]
