Install a New High Efficiency Type of Water Heater to Save Hot Water Cost
The water heater shown at page top was installed in our forensic laboratory. Using a power burner this water heater manages to extract a high enough percentage of the heat from its natural gas burner that the water heater exhaust can be vented directly to outdoors by means of a plastic pipe.
This particular water heater was manufactured by A.O. Smith but other companies also produce high-efficiency water heaters.

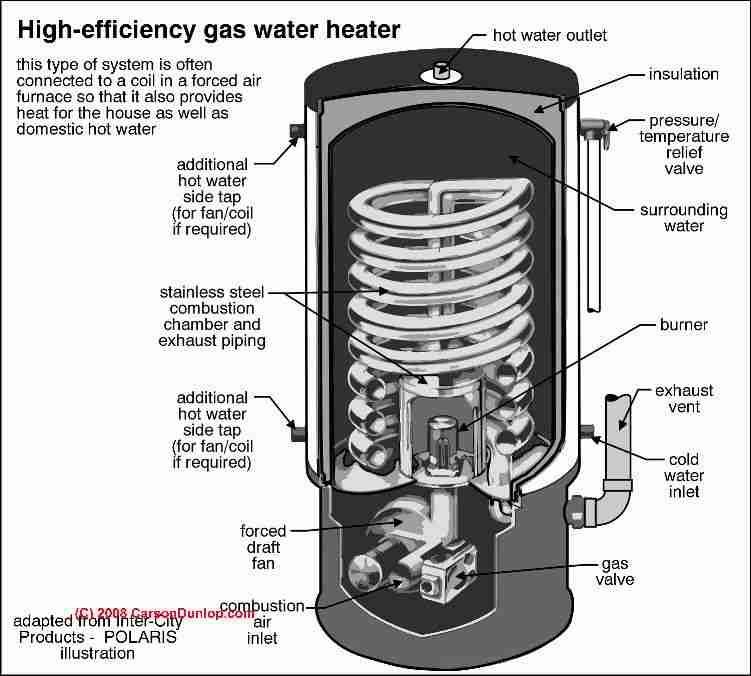

Here you can see a schematic of a high-efficiency gas-fired water heater in this sketch provided courtesy of Carson Dunlop, and you'll see a photo of a modern high-efficiency natural-gas fired water heater above..
Take a look at the Energy Guide sticker data, which measures anticipated energy cost in "Therms per year" (to avoid being confused by changing fuel prices among fuel types) to compare the relative operating costs of these appliances.
The water heater shown at left anticipates an average annual energy cost of about $146. U.S.
if your present source, such as a tankless coil or range boiler is inadequate you can increase hot water pressure and quantity and also to reduce hot water costs, you can install a separate oil or gas fired water heater, an indirect-fired water heater, perhaps an instantaneous water heater, or if you are located where electricity is less costly than these fossil fuels, perhaps an electrical hot water heater.
Select a larger capacity hot water tank tank, perhaps 40 gallons or 50gallons to increase the hot water quantity as well.
High efficiency oil or gas fired water heaters cost a bit more but can pay for themselves quickly considering the rapidly rising costs of home heating oil and natural gas.
Articles Describing Steps to Increase Hot Water Quantity
The articles listed below offer more details about steps one can take to increase hot water quantity, pressure, and flow in a building. Use links just below or at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.
Extra Tanks to Increase Hot Water- pre-heat your hot water absorbing ambient building heat or increase hot water quantity with cascaded, staged, multiple water heaters, possibly using more than one energy source
