Here we provide tables of scalding temperature and times, hot water scalding regulations and guidelines, and advice about use of anti-scalding devices to avoid dangerous, potentially fatal hot water burns. This website answers most questions about Heating System Boiler Controls on central heating systems to aid in troubleshooting, inspection, diagnosis, and repairs. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution. See MIXING / ANTI-SCALD VALVES for our complete article series on anti-scald equipment, devices, both automatic and manual tempering or mixing valves, and their settings necessary to avoid hot water burns. © Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website. Table of Scalding Temperatures & Exposure Times that Cause Hot Water BurnsWhat are safe temperatures for residential hot water?
Hot Water Anti-Scald Limits: Laws & RegulationsAccording to Domestic Hot Water Scald Burn Lawsuits... D. Bynum et als., there are three different federal standards for limits on safe hot water temperatures:
Continue reading about anti-scald protection at How Anti Scald Valves Work. Best Practices Guide to Scald ProtectionOur home page for anti scald devices used in plumbing systems is MIXING / ANTI-SCALD VALVES. The article below, MIX VALVE SCALD PROTECTION, Best Practices, includes excerpts or adaptations from Chapter 6 of Best Practices Guide to Residential Construction, courtesy of Wiley & Sons and written by Steven Bliss. Watch out: it can be confusing listening to plumbers, home inspectors, and building supply sales staff who toss around terms like "mixing valve", "tempering valve", and "pressure-balancing valve" a bit loosely, all referring to ways to avoid scalding burns at plumbing fixtures, but not all working the same way. There are several approaches to controlling hot water temperature to avoid scalding burns:
As noted in Chapter 6 of Best Practices Guide to Residential Construction: There are many styles of mixer valves in tubs and showers, but all should have some sort of protection against scalding. The young and elderly are at greatest risk due to thinner skin and slower reaction times. More than 35,000 children, most under age six, are treated each year in emergency rooms for tap-water scald burns, according to the National Safe Kids Campaign. A child exposed to 140°F water for as little as three seconds (see Table of Scalding Temperatures & Times) can sustain a third-degree burn requiring hospitalization and skin grafts. Although most scald burns occur in the kitchen, according to the Consumer Product Safety Commission, the most severe scald burns are caused by water flowing into the tub or shower. In response, many state and local codes now require antiscald protection in residential tubs and showers. Many organizations advocate setting water heaters to no more than 120°F, which gives bathers significantly more time to move away or adjust the temperature before a burn occurs. While this strategy is helpful, it is not always reliable and can cause other problems:
Use of Point of Supply Water Pressure-Balancing Valves to Control Temperature & Avoid Scalding

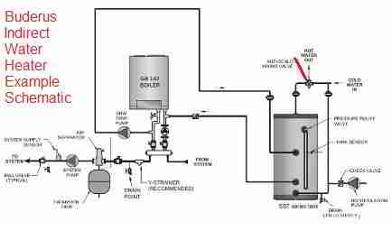

If cold water is diverted to a flushing toilet or other appliance and the pressure drops, the valve automatically reduces the hot water flow proportionately to maintain the temperature. If the cold water pressure plummets or stops altogether, the flow is reduced to a trickle. To guard against someone accidentally turning the shower valve to scalding temperatures, these valves typically use a temperature limit stop that prevents the user from turning the shower control past a set point—typically set at or below 120°F. Use of Point of Supply or Point of Use Thermostatic Mixing Valves to Avoid Scalding BurnsSome models of thermostatic mixing valves are more expensive than pressure-balancing valves and not widely used in the United States. They can be installed either inline near the water heater or as part of the shower control. The inline type of valve, also called a tempering valve, adds cold water to the hot water as it leaves the water heater to maintain a constant temperature, set by the installer. These are commonly used with solar water heaters but can also be tied to a conventional water heater. A check valve is required on the cold water side to prevent backflow, and a hot-water expansion tank is recommended to prevent excessive pressure on the hot water side.
Retrofits to Avoid Scalding Burns at Plumbing FixturesIn retrofits, point-of-use devices can be installed by a plumber or homeowner to limit water temperatures to 120°F. These include antiscald showerheads, as well as point-of-use devices that fit into individual plumbing fixtures, such as showerheads and bath and sink faucets. For example, MemrySafe and ScaldShield (Antiscald Inc.) are inexpensive retrofit devices that reduce the water flow to less than 1/4 gallon per minute when the water temperature at the faucet or showerhead exceeds 120°F. These devices do not regulate temperature or pressure, but do offer protection against serious burns. Questions & Answers regarding this article. Ask a Question or Search InspectAPediaHTML Comment Box is loading comments...
