Here we provide descriptions and photographs of unsafe gas piping, regulators, or controls on heating systems, indications of unsafe or improperly operating gas appliances, gas meters, and other gas installation defects. We also discuss the procedure for converting from LP gas or "bottled gas" to natural gas or "piped in gas" at a building. This document also provides free sample draft home inspection report language for reporting defects in oil and gas piping at residential properties.

General safety warning: improper installation and even improper inspection and testing methods involving natural or "LP" gas can involve dangerous conditions and risk fire or explosion. If you smell gas you should leave the building immediately and should do so without doing anything that could create a spark such as operating a light switch or telephone.

From a safe location, call your gas company's emergency line and/or your fire department. The text provided here is a working draft and may be incomplete or inaccurate. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution. Also see How to Report Defects in Oil Piping. NOTICE: while example report language is provided here, reproduction of this or any of our web pages or their contents at other websites or in printed documents for sale is prohibited. © Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Un-Biased Reporting are Assured for this website - see pledge link at below-left.

How to Identify the LP Gas or Natural Gas Fuel Source

Natural gas and LP gas appliance compatibility

These two fuels are similar in that both are used to provide energy to home heating systems and other appliances but they have some different properties of weight, method of distribution, and chemistry. Most gas appliances are delivered already set up to use either natural gas or LP gas but not both.

Most gas appliances can be converted from one fuel to the other - what is involved may be simply changing gas metering orifices in the equipment (for example at the burners on a stove) or it may also be necessary to change or adjust a gas regulator located inside the appliance. Do not hook up an LP gas-ready appliance to a natural gas supply nor can you connect a natural-gas ready appliance to an LP gas supply without reviewing and acting on the manufacturer's instructions for converting the appliance from one fuel to the other.

If you are planning to convert from one gas fuel to another, such as from LP gas (bottled gas or liquid petroleum gas) to piped in natural gas, see our advice and safety warnings at Gas Conversion LP Natural Gas.

Immediate LP Gas & Natural Gas Safety Hazards

Immediate LP or natural gas safety hazards: if there is evidence of an LP or natural gas leak at a building, gas odors, for example, you should:

• Do not do anything that is likely to cause a gas explosion, such as lighting a match, operating an electrical switch, or even using a telephone in the building
• Leave the building immediately and keep a safe distance away - 100 feet or more.
• Notify other building occupants of the safety concern
• Contact the local gas company and/or fire department

Heating equipment which the inspector (or building occupant or manager) judges to be an immediate life safety hazard should be shut down and appropriate emergency services called. See Gas Leak Detection for leak detection procedures and alternatives.

What Chemicals are Used to Produce the Characteristic Odors in Natural or LP Gas?

Mercaptan gas odorant components, concentration strength, human exposure levels

Mercaptan, a widely-recognized odorant is added to natural gas or bottled gas to assist in recognizing that a dangerous gas leak is present since natural gas alone, CH₄ (Methane) is odorless.

The product added to natural gas to provide it with a characteristic odor is a mixture of tertiary butyl mercaptan, dimethyl sulfide and n-hexane.

Commonly in the trades the gas odorant product is just called "mercaptan".

Mercaptan is added to natural gas at a rate of 0.08cc’s/1.0 m3 of natural gas.

Therefore very little mercaptan in the gas stream.

According to one of our industry correspondents, odorants need to be detectible in the natural gas at 1/5 the lethal exposure level (LEL), so this is the amount of natural gas required in the test. A person is exposed to very little natural gas in the air by the time they smell it.

What to Do if You Smell Gas

*** Immediate LP Gas or Natural Gas Safety Concerns:

• Gas Odors: A gas leak can be indicated by gas odor such as in the utility area near appliances or elsewhere in the building.

Here is a list of examples of other immediate LP gas or natural gas leak safety hazards that might be detected using a TIF8800™ Combustible Gas detector or using a soap solution and bubble testing:

• A gas leak in gas piping - check particularly at piping joints or in areas where there is apparent damage, corrosion, possible pin holing in the piping.

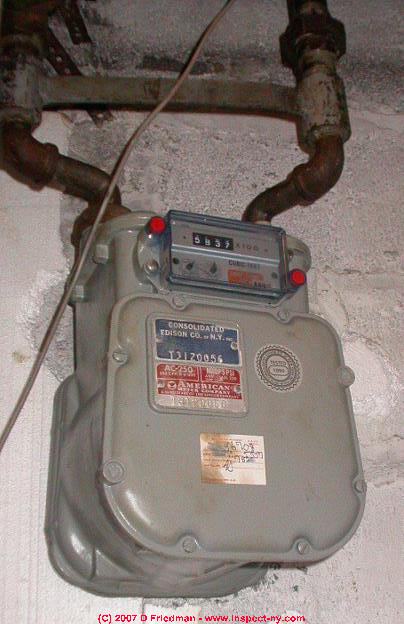

• A gas leak at the gas meter equipment. Check at meter seams and at piping connections.
• A gas leak at the gas control valve.
  • A gas leak may be found at the appliance pilot and temperature control knobs at control top.
  • A gas leak may be found at the center seam along the RH side of the control. (often on gas fired water heaters we can detect a very small trace leak of LP gas or natural gas at the side seams of the control; beware: volatiles in pipe dope or in valve label glue might also cause the TIF8800 to indicate that a leaking gas is present).
• A gas leak may be found the gas line shutoff valve.

• A gas leak may be found the appliance pilot line at the control.


You should have your plumber test/replace any suspect gas controls promptly. Replacement of a control itself should not involve significant expense. This repair should not be deferred. You should be sure that building occupants know if this or other unsafe conditions are present.
