Aluminum metal roofing, first used in the U.S. in 1890 on Philadelphia's City Hall, difficult to solder, relied on mechanical joints and slope to shed water. Details about aluminum roofing are at ALUMINUM ROOFING.
Aluminum Metal Roofing System Properties
Aluminum that is anodized or painted is
highly resistant to corrosion, making it well-suited to
coastal environments provided it is factory-coated with a suitable finish. (although lightweight aluminum
flashings tend to pit and oxidize in salty air).
Aluminum roofing's light
weight is an advantage in reroofing. Aluminum roofing also reflects heat and may thus reduce building cooling costs in hot sunny climates.
Because of its high
coefficient of expansion, however, attachment systems
must be designed to accommodate the movement of long
aluminum roof panels.
And since it has a lower tensile strength than steel,
more fasteners may be required to achieve wind ratings
comparable to a steel roof.
Aluminum roofing, softer than steel or copper, dents easily and so may suffer cosmetic damage from hail. Hail damage is reduced if the aluminum panels are well secured to solid roof decking.
Also, aluminum has a low melting
point so it relies on two layers of fire-resistant underlayment,
such as VersaShield, to get a Class A fire rating.
Most aluminum used in roofing has a baked-on paint
finish rather than an anodized finish. Although anodized
aluminum is less costly, new paint technologies such as
Kynar® and Hylar® carry better warranties and are available
with a low-gloss finish generally favored on roofs.
Some coated aluminum products come with transferable
lifetime warranties.
Aluminum roof noise
Depending on how the roof is installed, secured, and insulated, an aluminum metal roof may be noisy. See ROOF NOISE TRANSMISSION where we describe the noise transmission properties of metal roofing.
Metal roofs have a long history of use, although improvements have occurred in shop fabrication methods and new sealant materials. Metal roofs are available in a wide variety of rib configurations, colors, and slope configurations. Architectural systems use an underlying deck to provide structural support, while structural standing seam metal roofs provides an integral supporting frame. Structural systems can be used to retrofit an existing flat roof deck to provide improved drainage. Sealant is required at valleys, gutters, and drains, to ensure water tightness.
Workmanship of the metal roof installation, including consideration for thermal and building-related movement in the roof system
Metal roof fasteners and connectors: proper selection and installation
Metal roof joints, proper design and installation to accommodate movement and thermal changes
Choice of metal, and exposure to particular environments: salt spray, chemicals from nearby factories, high winds, other weather conditions

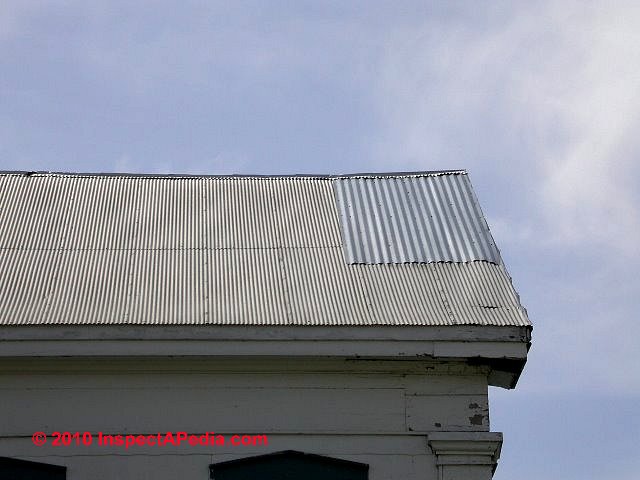

The patched corrugated metal roofing shown below (left) covers a pre-1900 home currently used as a parsonage in Dover Plains, NY. This roof was a mix of corrugated galvanized steel and corrugated aluminum roofing.
At CORRUGATED ROOFING we discuss all types of corrugated roofing products: metal and others.
