This article explains the identification and diagnosis of black roof stains caused by soot or creosote washing off of building chimneys and we discuss possible safety and fire hazards associated with this condition. This series of articles tells readers how to identify & explain the most-common causes of black, brown, red, gray, green, or white stains appearing on roof shingles and on other building surfaces. Roof shingle stains are often caused by black algae, bleed-through or extractive bleeding of asphalt, dirt, soot, or organic debris.

See Causes of Roof Stains and  Catalog of All Roof Stains for the causes and types of stains that occur on building roofs. There are other sources of roof staining, from cosmetic to harmful to the roof. For the diagnosis and cure of other building stains, see STAIN DIAGNOSIS on BUILDING EXTERIORS and STAIN DIAGNOSIS on BUILDING INTERIORS.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

SOOT STAINING - Black Soot Stains on Roof Shingles Around Chimneys

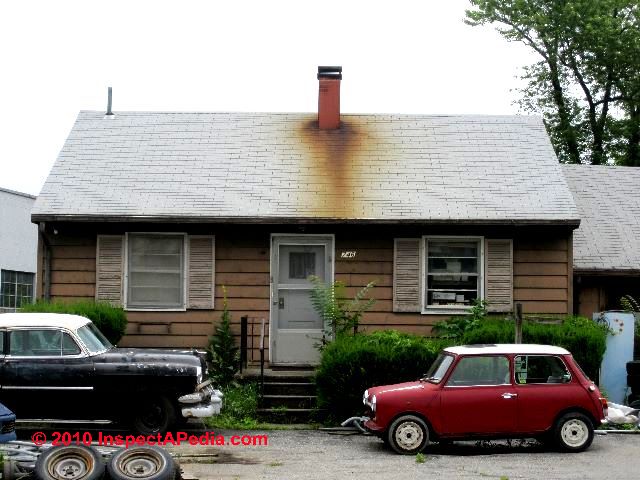

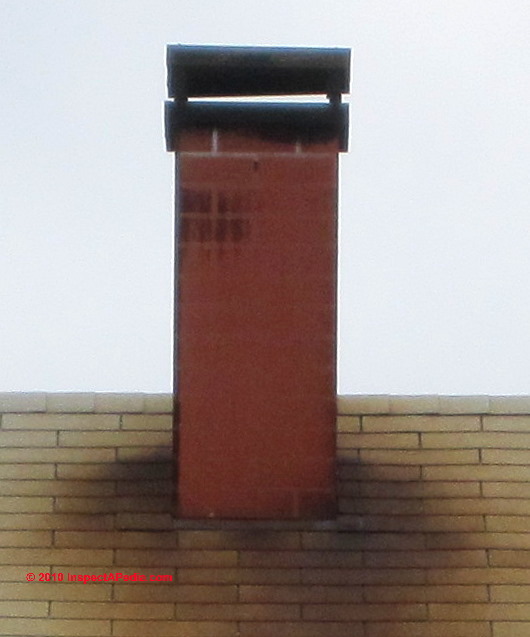

Soot from fireplace flues washing down onto the roof - characterized by staining appearing below and in line with the chimney Similarly, soot from oil-fired heating flues washing down onto the roof, characterized by the same pattern of staining around and below the chimney; also probably an indicator of an operating problem with the heating system. That was clearly the case in the photograph shown at page top. At left our photo shows soot stains running down a masonry chimney and onto the roof surface. Incidentally, this chimney needed to be re-lined but evidence of that is not presented in this photo. Gas Flue Safety Warning: If this same sooting appears on and around a gas-fired appliance flue, there is a very unsafe condition present and risk of fatal carbon monoxide production inside the building. Immediate action is be needed. [Photograph of a soot-stained roof top at page top was courtesy of Roger Hankey a Minnesota home inspector.

The Location of Roof Stains Can Help Diagnose Their Cause

Unlike other roof shingle stain patterns shown in this article series on roof stain diagnosis, black stains caused by soot staining from a chimney or brown stains from a rusting chimney or chimney flashing, or sometimes a combination of the two will be prominent in a wide swath along the sides and below the chimney and will be little in evidence elsewhere on the roof.

Our photo of brown roof stains below and around a metal-enclosed chimney (left) was taken in Wappingers Falls, NY. The stains on this roof are around and below a metal enclosure that in turn surrounds a metal chimney. A closer look at the chimney top shows black sooting - the heating system in this home has not been operating properly, and we pose that the roof and chimney stains are probably a combination of rust and soot wash-down from the sooty flue gases as well.

Watch out: we often see that the top of metal box frames around older metal chimneys has rusted through, but may not be noticeable from the ground. Sending water down the chimney risks costly damage to the heating furnace or boiler. Look for water leak stains on the flue and chimney base inside the building and inspect the chimney top carefully from outside.

For a detailed guide to chimney inspection, diagnosis, and repairs, see CHIMNEY INSPECTION & REPAIR GUIDE
