This article describes installation requirements & specifications for clay tile roofing.

Clay Roof Tile Installation Specifications

Our page top photo shows clay roofing tiles installed on a low slope roof in San Miguel de Allende, Mexico. Below we comment on the special steps needed to keep a low slope clay tile roof from leaking.

The installation guidelines for clay roofing tiles vary widely by geographic area. For example at How clay roofing tiles are secured we include a photograph of a clay tile roof in a mountainous area of Mexico where very little is done to fasten the tiles to the roof structure.

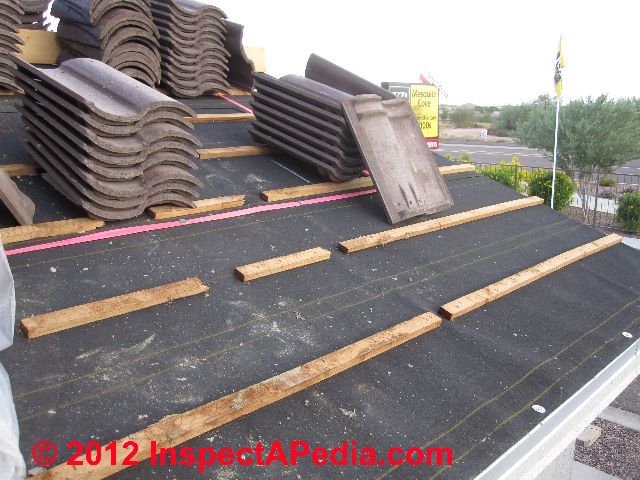

Our photo at left shows a tile roof ready for installation in Mesquite Cove, Arizona. The tiles will be secured to battens nailed over an underlayment. Notice the drainage gaps in the batten strips.

In windy or stormy areas owners sometimes leave heavy stones on the edges of their roof to avoid wind blow-off of the tiles. In coastal areas where high winds and hurricanes are a threat to all roofs, extra steps are taken to fasten tiles to the roof surface.

Clay tile roofing material and installation labor are more expensive than alternate materials, but the material has a life expectancy of up to 350 years where high quality vitreous tiles are used. Clay tiles are heavy, weighing between 850 and 1,700 pounds per square (depending on the tile type).

Roof Slope or Pitch Requirements for Clay Tiles

Low slope clay tile roof leaks (C) Daniel Friedman

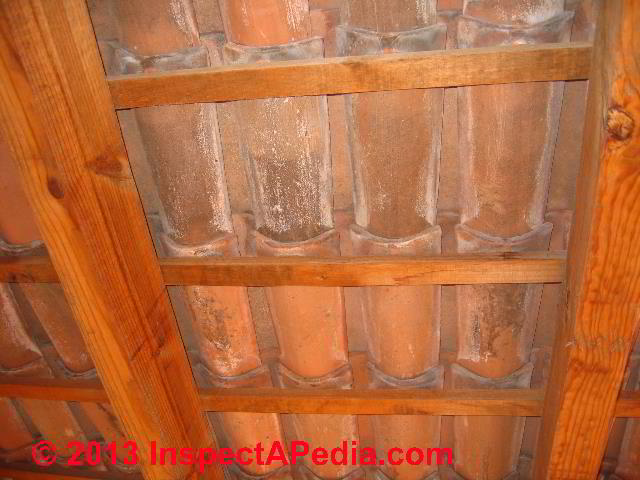

Clay roofing tiles are installed on slopes as low as 4/12, restricted to 6/12 in some jurisdictions. Our photo (above left) shows a low slope clay tile roof in San Miguel de Allende, Mexico. This roof was built without sufficient pitch (about 2/12) and it leaks badly during heavy rains, as you can see by our photograph of the roof's under-side (above right). Raising the high end of this shed roof a few inches will improve the roof drainage and stop the leak problem.

Where clay tiles are installed on low slope roofs (less than 4/12) for aesthetic reasons, install a waterproof membrane on the roof surface below the tiles.

Tile Exposure Specifications for clay tile roofs

Most clay tile roofs permit exposure of more than 50% of the length of the tiles, and interlocking clay tiles have an 80% to 90% exposure of the tile surface. An exception is that for shingle flat clay roofing tiles the exposure is less than 50%.

Head lap specification for clay tile roofs

Interlocking and curved clay roof tiles have no head lap. Clay roof shingle tiles have a 2" to 4" head lap.

Clay tile roof flashing material

on modern roofs is often custom built of copper, lead coated copper, or hand-made using soft copper; traditional clay tile roofs and some contemporary tile roof installations use lead sheets that were easily formed to follow the contour of the clay tiles, but modern flashing products include metal that is pre-formed to match tile shapes.

How clay roof tiles are secured to the roof: We continue the discussion of installation details for clay roofing tiles at CLAY TILE ROOF CONNECTIONS.
