A Guide to Types of Corrugated Roofing Panels

Jones corrugated board patent, 1871 cited & discussed at InspectApedia.comAs you'll see in the contents index below, we illustrate and describe the various types of corrugated materials used for building roofing, and we include a general definition of "corrugated" that can help describe various corrugated building materials that may have used asbestos cement, fiber cement, metal, fiberglass, plastic, paper, or other materials.

Illustration: from Jones corrugated paper patent issued in 1871 and discussed in detail

at CARDBOARD CORRUGATED FIBERBOARD - separate article.

[Click to enlarge any image]

Article Contents

Corrugated Fiberboard & Paper Products - Not Roofing

Recycled cardboard for building insulation Russ 2013, cited & discussed at InspectApedia.com

Illustration: corrugated paper building insulation, cited & discussed in the cardboard corrugated fiberboard article linked-to below.

Corrugated roofing and siding and other building products described on this page refers to a wavy-surfaced material made of metal, fiberglass, plastic or other material.

For clarity regarding our use of the term "corrugated" we include this

Definition of Corrugated Fiberboard

Corrugated fiberboard is a material consisting of a fluted corrugated sheet and one or two flat linerboards.[1] It is made on "flute lamination machines" or "corrugators" and is used for making cardboard boxes.

The corrugated medium sheet and the linerboard(s) are made of kraft container board, a paperboard material usually over 0.01 inches (0.25 mm) thick. Corrugated fiberboard is sometimes called 'corrugated cardboard', although cardboard might be any heavy paper-pulp based board.
- Wikipedia, retrieved 2022/07/28, original source: https://en.wikipedia.org/wiki/Corrugated_fiberboard

See details about other corrugated building products

at CARDBOARD CORRUGATED FIBERBOARD

Corrugated Cement-Asbestos Roofing

Corrugated cement asbestos roofingAsbestos cement roof shingles and corrugated asbestos cement roofing like that shown here were in popular use in the U.S. from the 1920's (est) through the 1960's (est) and were sold in the U.S. into the 1970's and according to some sources even in the 1980's.

The corrugated sheet asbestos cement roof panels shown here are installed on farm buildings at Brinstone Farm, St. Weonards, in Herefordshire, England, U.K. and are more than seventy years old.

[Click to enlarge any image]

The mixture of asbestos fibers and portland cement to form a hard material that was was durable and fire resistant is credited to Ludwig Hatschek who, in 1900, came up with the name Eternit associated with a U.S. producer of these products.

The typical life expectancy of an cement asbestos cement roof was given as 30 years, But we have seen these roofs that were now 50 years old in good condition. Typical roof wear or failure patterns are either failure of the shingle fasteners or broken and falling sections of corrugated sheets.

See details

at CORRUGATED CEMENT ASBESTOS ROOFING

Virtually all of the inspection points, installation limitations, and environmental concerns which we discussed

at GUIDE to CEMENT-ASBESTOS ROOF SHINGLES also apply to corrugated asbestos-cement roofing products.

OPINION: The lichens growing on cement-asbestos roofing (photo at left), especially this thick corrugated material, is probably less of a wear concern than when that material appears on asphalt shingles or roll roofing.

Do not try to walk on this material without taking the same precautions as if accessing a slate roof: the material is easily damaged by foot traffic.

See CORRUGATED CEMENT-ASBESTOS ROOFING for details about this material, and about demolition or repair of corrugated cement asbestos roofs as well as for sources of non-asbestos replacement fiber-cement corrugated roofing products.

Corrugated Fiber Cement Roofing

Corrugated fiber cement roofing (C) Daniel Friedman

Contemporary roofing product manufacturers make reinforced fiber-cement roofing shingles and other roofing products which look like, perform similarly to, and need to be installed similarly to the original corrugated asbestos-cement sheet roofing - but these new products are free of asbestos. (Photo at left: author points to new fiber cement roofing product.)

As we explained in our discussion of cement asbestos shingles, the replacements for corrugated asbestos cement roofing products are reinforced with a variety of fibers including fiberglass.

Other replacements for asbestos-cement roofing use both different fibers and a different aggregate (perlite) to replace the asbestos. Some of the substitute products have been in use for more than 30 years (2008).

For maintenance or replacement of asbestos-cement roofing products contact Supradur Manufacturing Corporation, PO Box 908, Rye NY 10580 800-223-1948, or from within New York State, call 914-967-8230. Ask about their Supradur(R) mineral fiber shingles.

For handling and disposal guidance concerning old roofing material contact the US EPA, your state Department of Environmental Protection/Conservation, or your local building and health departments.

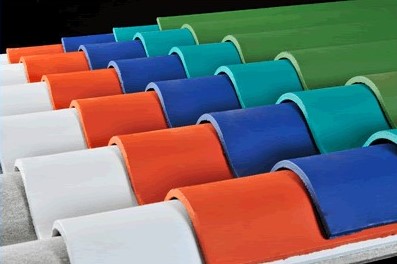

Corrugated Duralita Cardboard-reinforced Cement Roofing Roofing Products

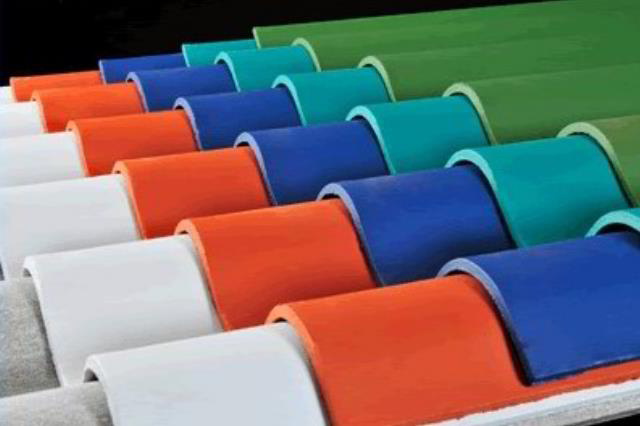

Duralita cardboard reinforced cement roofing (C) Daniel Friedman

Duralita, an alternative to both clay roofing tiles as well as other fiber reinforced cement roofing products is produced in El Salvador and used widely throughout central america and north America. Duralita is a series of brightly-colored cardboard-reinforced cement corrugated roofing products produced by the Duralita, manufacturer of the same name. From the ground Duralita resembles clay roofing tiles.

Panels of Duralita are secured using fiber or rubber washers and threaded rods or bolts. Duralita tejalitas are sheets of reinforced concrete that are intended to resemble roof tiles.

Corrugated cardboard cement products of the same composition, Lámina [photo] are sold in sheets of various sizes and similar colors. You can see an installation of Duralita at the Posada del Bosque Encantado, (http://hotelposadaencantado.com/) a hotel operated by our acquaintance Terry Rubin who was kind enough to inform us about this product.

Other examples of corrugated roofing products (that do not look like clay roof tiles) can be seen

at CORRUGATED CEMENT-ASBESTOS ROOFING.

See DURALITA & METAL TILE ROOFS for details.

Corrugated Fiberglass Roof Panels

Corrugated  metal roof (C) Daniel Friedman

Corrugated fiberglass roof panels are installed where light is a premium, as shown in this photo of porch constructed by the author in 1983. Judith Weeks hired us to build a deck that grew into a covered porch.

As we drove out of HG Page lumber with our corrugated fiberglass roof panels poorly-secured atop my 1970 Chevy pickup, one panel blew off, landing in the buildign supplier's parking lot.

I leaped out of the truck out to try and rescue our panel, but before I could get there, the new fiberglass roof panel was immediately driven over by a heavy HG Page Lumber delivery truck.

We were stunned to see that the panel had survived the accident with no visible damage. It looked perfect, so we installed it on the roof shown in our photo above.

The next day when bright sun shone on the roof, Judith called.

"The porch is beautiful, " she said, "and I love the sunlight coming through the translucent fiberglass panels.

But something's really odd: there is a perfect imprint of a truck tire track across one of the roof panels!"

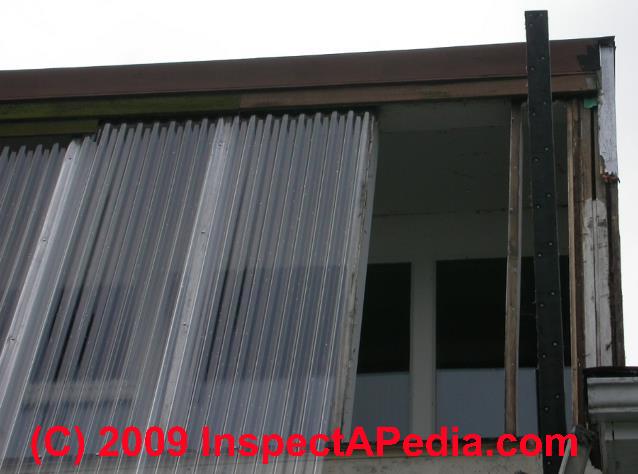

Below we illustrate a new translucent fiberglass roof panel during installation (not work performed by the author) after an older installation on the same roof leaked due to poor flashing.

Corrugated  metal roof (C) Daniel Friedman

Corrugated panels, like clay tiles, sport an irregular surface that requires use of flashing products that fit the panel surface in order to avoid leaks.

Corrugated Metal Roofing Panels

Corrugated steel roof (rusty) on an antique stone building in Scotland (C) InspectApedia.com Chloe Church

Photo, corrugated steel roofing on a building in Torrin, on the southwestern coast of Skye, Scotland, photo by Chloe Church, 2022. Ms. Church notes that Torrin has fishing, lots of sheep, and a quarry. Wikipedia suggests the quarries have been around since the early 1700s. This stone building looks quite old, but in fact we don't know its age.

[Click to enlarge any image]

Really? We're not sure. Below, the color variation in other photos of this barn found by our contributor suggest we might have a combination of painted corrugated steel or fibre cement, older-still asbestos cement that, from afar, can look like metal.

It's possible, even likely, that this corrugated roof covering replaced an earlier roof covering such as slate, concrete tiles, or perhaps thatch or turf bricks as we cite just below.

Slate, a bit expensive for a barn or outbuilding, could have been used, and is still used on some roofs on Skye where slate roofers continue in business today, for example in Edinbane Portree and in Denny on the Isle of Skye.

Our guess of durable roofing that might have been used on older outbuildings in Scotland would be incomplete without mentioning the muckle roof, large square sections of Caithness sandstone "slates" illustrated by Emergon (p. 49) at Murkle near Thurso.

Corrugated metal roofing panels, dating from Henry Robinson Palmer's invention in 1829, have a long history of use on roofs and also as building siding. Palmer, a British engineer and architect was employed at the London Dock company and is credited with the invention of what was first called "corrugated wrought iron" or CGI.

By the 1900s corrugated iron panels used for both roofing and siding had been widely adopted by Australia, India, New Zealand, and the United States, for use on commercial buildings, with producers in all of those countries.

Within the next decades these corrugated metal panels found still-wider use on farm buildings and utility structures.

Metal roofing examples (C) Daniel Friedman

The corrugated metal barn roof shown above is on a building in Poughkeepsie, New York is described further

at METAL BARN ROOFING

These corrugated metal panels may be made of pressed aluminum sheets or of pressed iron or steel sheets formed into the corrugated surface patterns shown in these photos

The patched corrugated metal roofing shown below covers a pre-1900 home currently used as a parsonage in Dover Plains, NY.

Metal roofing examples (C) Daniel Friedman

Corrugating stiffened the sheets, and allowed greater span over a lighter framework, as well as reduced installation time and labor. In 1834 the American architect William Strickland proposed corrugated iron to cover his design for the market place in Philadelphia.

Galvanizing with zinc to protect the base metal from rust was developed in France in 1837. By the 1850s the material was used on post offices and customhouses, as well as on train sheds and factories. In 1857 one of the first metal roofs in the South was installed on the U.S. Mint in New Orleans. The Mint was thereby "fireproofed" with a 20-gauge galvanized, corrugated iron roof on iron trusses. (Sweetser - U.S. NPS)

The modern corrugated roofing shown below tops a gambrel-roofed barn in New England.

Metal roofing examples (C) Daniel Friedman

More on roof shapes and architecture is

at ARCHITECTURE & BUILDING COMPONENT ID.

Corrugated metal roofing on very old buildings such as this pre-1900 home in Pawling, NY, may be patched with newer corrugated sections where a chimney has been abandoned.

Find details at ABANDONED CHIMNEYS: Outdoors.

Corrugated metal roof panels are sold in both aluminum and steel.

Watch out for wind damage to any metal roof covering, especially where a simple nail-over panel has been installed such as shown here.

Corrugated  metal roof (C) Daniel Friedman

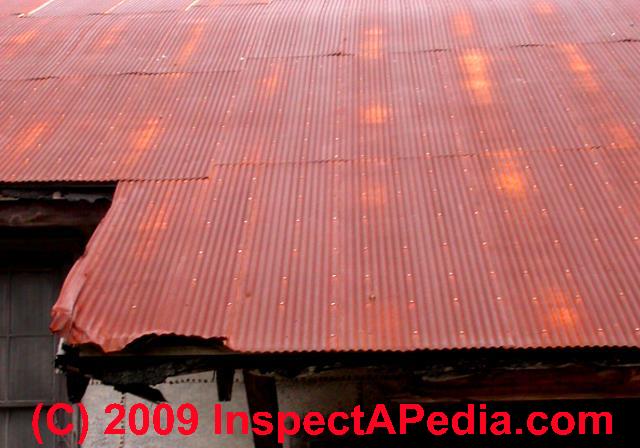

Corrugated metal roofing on very old buildings such as this warehouse in Hudson, NY, may be stunningly rusted and yet not leaky.

Corrugated metal roof panels are sold in both aluminum and steel.

The damage at the lower left roof corner was from a truck at the loading dock.

Also see the metal roofing articles listed in the ARTICLE INDEX

We discuss asbestos-cement and fiber cement corrugated panels separately

at CORRUGATED CEMENT ASBESTOS ROOFING

Find the history of corrugated metals, aluminum, iron, steel,

at STEEL & IRON BUILDING SIDING
