EPDM Roofs, Rubber Roofs & PVC Roof coverings: this article describes membrane roofing materials, flat roof membrane choices, flat roof installations, inspection, EPDM or rubber roof defects, flat roof leak detection, flat roofing repairs, and flat roof membrane product sources.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Membrane Roofing Materials, EPDM, PVC, or Rubber Roof Choices, Costs, Life Expectancy, Flat Roof or Membrane Roof Characteristics
Also see EPDM ROOF LEAK REPAIRS.
"Membrane roofs" is a general term that may be applied to a low slope or flat roof covered by any means that is intended to produce a continuous waterproof barrier.

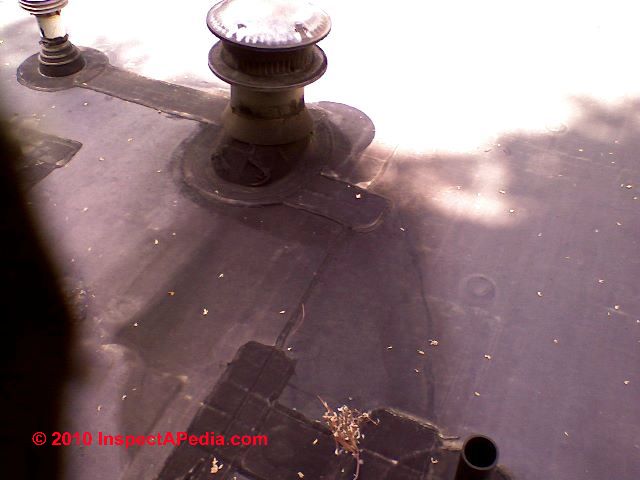

Our photo (left) shows roof penetrations and flashing on an EPDM roof in New York. [That chimney may be too short, violating code and safety if it extends less than 2 feet above the roof surface.] Look closely and you can see the marks left by round anchors that tied rooftop insulation to the roof deck below. This telegraphing of insulation fasteners is not a roof defect - it's normal.
Asphalt shingles, in contrast to the EPDM roof shown here, , are not a "waterproof membrane" and depend on the drainage offered by the roof slope to function effectively.
That's why without special measures (discussed at LOW SLOPE ROOFING) we don't expect to find shingles installed on roofs of pitch lower than 4" of rise in 12" of run.
Because we discuss other popular membrane type roofing systems separately at ROLL ROOFING, ASPHALT and MODIFIED BITUMEN ROOFING, here we focus on EPDM roofs or "rubber roofs".
|
Carson Dunlop's illustrations (below) compare an EPDM roof membrane installation and a PVC roof membrane installation.
EPDM Roofing Installation & Properties
As discussed in Best Practices Guide to Residential Construction, chapter on BEST ROOFING PRACTICES:
While a variety of single-ply roofing membranes are used
on commercial jobs, only EPDM has become widely used
on residential sites. EPDM, a form of synthetic rubber,
owes its popularity to its relative ease of installation combined
with exceptional durability. If installed correctly,
roofs often exceed 20 years of service and callbacks are
exceedingly rare.
While some commercial EPDM systems are loose-laid
or ballasted, residential applications are typically fully
adhered. Rolls typically vary from 10 to 50 feet in width
and from 50 to 200 feet in length, but many distributors
will cut a piece to size for smaller jobs. If possible, use a
single piece with no seams for the field of the roof. EPDM
membranes are available in two thicknesses: .045 inch and
.060 inch.
For fully adhered applications or any application
where foot traffic or decking is planned, the thicker
membrane is recommended.
Substrates for EPDM Roofs
EPDM can be bonded to a wide variety of
substrates, including plywood, OSB, fiberboard, and urethane
insulation board. The substrate should be smooth,
even, and free of debris. Fasteners should be driven flush
except in the case of insulation fastening caps, which
project their shape though the membrane. If the surface is
uneven or deteriorated, a layer of fiberboard or thin
plywood should be installed first.
Installation Details for EPDM Roofs
After cutting the material to fit, installers
use a roller to apply a proprietary contact cement to both
the membrane and the substrate. Typically, a length of
roofing is set in place and folded in half lengthwise so onehalf
can be glued at a time. The adhesive should be fully
dry on both surfaces before bonding, or bubbles may develop.
Also, care must be taken to smooth out wrinkles and
air pockets as the two surfaces are mated. Where seams
are required, the material is lapped 4 to 6 inches and sealed
with either double-faced seam tape or a special adhesive
used for bonding rubber to rubber.
At openings, inside corners, outside corners, and other
irregular shapes where the EPDM roof membrane has been cut, patches
of uncured EPDM are applied using the rubber-to-rubber
adhesive. The uncured form of EPDM is highly elastic and
can be stretched to conform to irregular shapes.
The material is lapped up abutting walls and serves as
its own flashing. Other terminations are usually sealed
with an aluminum termination bar or an aluminum flashing
covered with a strip of EPDM. Finally all exposed
edges of EPDM at laps, patches, and terminations are
sealed with a bead of proprietary caulking that protects the
edge and acts as an extra water stop.
Self-Adhesive.
For small EPDM roof jobs, a few manufacturers
offer a peel-and-stick version of EPDM. Installation is
similar to standard EPDM but may require a primer on plywood
and OSB substrates. Seams generally require a proprietary
adhesive with special caulking on exposed edges.
Although the square foot cost is greater than with siteglued
EPDM, on small jobs labor savings offset the higher
material costs.
Pros and Cons of EPDM Roofing
While not intended as a walkway,
EPDM works well as a substrate under rooftop decks. Leftover
strips of membrane should be used to cushion the
roofing from wood sleepers. Leaks are rare and usually can
be traced to sloppy sealing of joints. Leaks are also relatively
easy to identify and fix. One caution is that EPDM
can be damaged by grease and petroleum-based products,
a potential problem with outdoor grills and spillage of
oil-base finishes used on siding or wood decking.
-- Adapted with permission from Best Practices Guide to Residential Construction.
Common Problems in PVC or EPDM Membrane or "rubber" Roofs

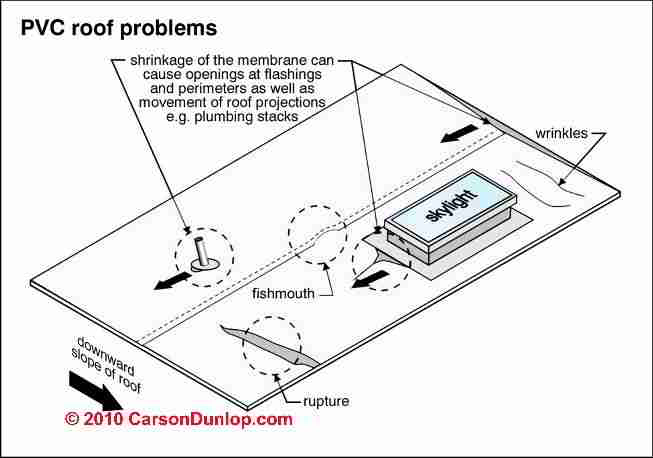

As Carson Dunlop's sketch (below) illustrates, wrinkling and failure at seams are problems to watch for where membrane roofs of EPDM, PVC, or similar materials are installed. A wrinkle in an EPDM roof is also shown at the top of this page.
Common EPDM or Rubber Roof Installation or Wear Defects include
- Shrinkage and material pulling or even ruptures at flashings if proper allowances were not made during installation
- Wrinkles in the rubber roof surface increase the chances of failures at adhesive-bonded rubber roof seams - as was our experience - see our rubber roof repair photos below.
- Rubber roof seam failures can occur over time due to weather effects, frost push against slightly open seam edges, or due to improper original cleaning and bonding of the material edges.
- Improper choice of roof edge flashing can cause extended ponding near the roof lower edge, risking frost damage to seam tapes or overlapped rubber roof seams - see our photos below.
|
Wrinkles in the rubber roof invite future seam failures
Shown during its 1998 installation at left, this rubber EPDM roof was installed on a New York home by a very large and busy Kingston New York roofing company. We followed the life of this roof and its leak and repair history for the ensuing 12 years and describe the results here.
The roofer also may have been in a bit of a rush. EPDM needs to be opened and allowed to relax before it is installed, and care should be taken to minimize the number and size of wrinkles in the roof during the bonding process.
A few small wrinkles in the center of a section of rubber probably won't cause much trouble, but wrinkles near EPDM roof seams are an other story, as we explain here. |
Wrong roof edge flashing causes ponding
The use of an improper drip edge (gravel stop on a roof that did not use gravel ballast) can be seen at the left side of our photo.
The gravel stop "edge flashing" was nailed on top of rather than below the rubber roof material in order to allow the rubber to be lapped over the roof edge and extended an inch into the gutters (not shown) - which was not a bad idea, though the roof's success then depends on the seam sealing tape (not yet installed here) to prevent leaks at the flashing nails.
The problem with using the wrong roof edge flashing ( a flat drip edge should have been installed) was the ensuing ponding at the roof edge. In New York where ponding of melting snow later re-freezes, the freeze/thaw action worked open seams near the roof edge, especially where a wrinkle crossed any roof edge seal or seam tape seal. |
The EPDM roof shown above leaked in less than five years, and by ten years of age we found recurrent openings and leak risks at several seams in the roof as well as along the lower roof edge where that stupid gravel stop was installed.
Our photos below illustrate what happens when an EPDM wrinkle extends into a roof seam, and as you can see by the water stains, the gravel stop caused excessive ponding that gave frost extra time to work on and push open the seam tape neaer the roof edge. These seam failures (and leaks) began appearing in the rubber roof in less than five years. The photos below show the roof edge at 14 years of age.
At EPDM ROOF LEAK REPAIRS we describe the maintenance & leak history and the ultimate repairs required for this EPDM roof.
