Guide to metal roofs: choices, installation, inspection, troubleshooting & metal roof repair procedures.

This article describes types of metal roofing products and metals: metal roof choices, installation, inspection, metal roof defects, roofing repairs, and metal roof product sources.

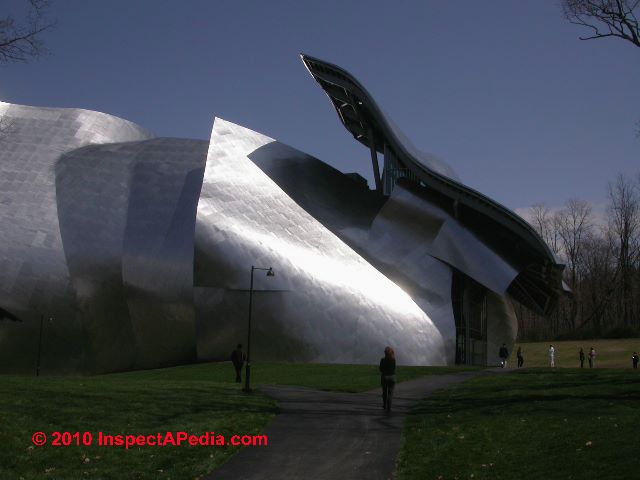

Page top photo, the Richard B. Fisher Center for the Performing Arts at Bard College, architect Frank Gehry.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.

Metal Roofing Materials, Choices, Costs, Life Expectancy, Characteristics

Metal roofing examples (C) Daniel FriedmanResidential installations of metal roofing have more than doubled in the past several years, and they are now estimated to account for over 10% of residential roofs.

Originally associated with agricultural and commercial buildings, new metal roofing products aimed at the residential market are designed with simplified installation systems and offer more choices in materials, finishes, and design.

This introduction to metal roofing includes brief excerpts adapted with permission from Best Practices Guide to Residential Construction, chapter on BEST ROOFING PRACTICES.

The installed cost of premium metal roofing is three to four times more than asphalt shingles, but metal roofing offers a variety of attractive benefits:

Noise Transmission of Metal Roofs

One frequently cited disadvantage of metal roofing is that it generates a noticeable noise when struck by rain, hail, or even dropping acorns.

If installed directly to purlins with no roof sheathing, the noise might be heard in the building interior. However, when installed over a solid substrate, with normal levels of insulation, the noise should not be noticeably different than with other roofing types.

Details about roof noise transmission are

at ROOF NOISE TRANSMISSION.

Walkability of Metal Roofs

Panels laid flat on solid decking are generally walkable. However, if panels are installed on battens, workers should be careful to step directly over battens or to use planking that spans multiple battens.

Modular shingle panels generally use fairly light-gauge material, but it is stiffened somewhat by the stamped textures. In general, modular steel panels are walkable, but aluminum ones should be reinforced by foam inserts in sections expected to see a lot of foot traffic.

Also see ROOF SLOPE OR ROOF PITCH DEFINITIONS

A Complete List of Types & Properties of Metal Used in Roof Systems

There are three general types of residential metal roofing

  1. Exposed-fastener Panel Metal Roofs - detailed

    at METAL ROOF EXPOSED FASTENER SYSTEM,

    also see CORRUGATED ROOFING
  2. Standing-Seam Metal Roofs -

    see STANDING SEAM METAL ROOF INSTALLATION

Metal roofing examples (C) Daniel Friedman

  1. Modular Panel Metal roofs. Details about metal shingle roofs of this type are

    at MODULAR METAL ROOF SHINGLE SYSTEM.

    Also see METAL SHINGLE ROOFS

As summarized in Best Practices Guide to Residential Construction, chapter on BEST ROOFING PRACTICES, all coated steel materials, however, are vulnerable to corrosion at field-cut edges

— although Galvalume® is the least affected Table 2-10 [image below] below lists the advantages, drawbacks, compatibility, and life expectancy of galvanized steel roofing, aluminized steel roofing, galvalume, aluminum, copper, and zinc metal roofing products.

[Click any table or image to see an enlarged version.]



Following this table is our complete list of metal roofing products.

Table 2-10: Metal Roofing Characteristics (C) J Wiley, S Bliss
  1. Aluminum metal roofing,

    first used in the U.S. in 1890 on Philadelphia's City Hall, difficult to solder, relied on mechanical joints and slope to shed water.

    Details about aluminum roofing are

    at ALUMINUM ROOFING.

    Also see ALUMINUM METAL ROOFING - PRODUCT SOURCES

    and ALUMINUM METAL ROOFING SYSTEM PROPERTIES

    and CORRUGATED ROOFING
  2. Aluminized Steel Roofing -

    see details about aluminized steel roof coverings

    at ALUMINIZED STEEL ROOFS
  3. Barn Roofing -

    is a synonym for exposed fastener metal roofs of aluminum or galvanized steel. Sometimes we find this roofing system used on residential properties too, though there are some questions about leak resistance of some installations.

    Details are at BARN ROOFING, METAL.

    and CORRUGATED ROOFING

    Also see STEEL & IRON BUILDING SIDING
  4. Copper metal roofing

    an early use in the U.S. in 1764 on the New York City Hall, infrequently used until late 1800's when copper supply increased, more costly, easily worked, does not need a weather-resistant coating.

    Details about copper roofing are

    at COPPER ROOFING
  5. Corrugated metal roofing

    details of iron & steel metal corrugated roofs as well as other corrugated roofing products are

    at CORRUGATED METAL ROOFING

    See the history of these materials

    at STEEL & IRON BUILDING SIDING

  6. Enameled steel roofing -

    according to the US NPS, "Enameled steel as a building component came to this country by way of Germany at the end of the 19th century. Shingles of enameled steel were exhibited by a German industrialist at the 1893 World's Columbian Exposition.

    The first American production was in 1924 by the Columbian Enameling and Stamping Company, which roofed a house in Terra Haute, Indiana, with enameled shingles.

    Commercial markets developed by 1930, and enameled shingles became popular for use on service stations and chain restaurants. Except for the 2500 Lustron houses manufactured in the late 1940s, the material was rarely used in residential applications."

    The NPS article includes an example from the 1929 Sweet's Architectural catalogue that describes enameled roof shingles.
  7. Galvanized iron or steel roofing -

    according to the US NPS, "Iron or steel are galvanized by coating them with zinc.

    Rather than producing the simple coating created by tinplating, a rust resistant alloy of the two metals forms on the surface. In 1839, two years after galvanizing was patented in Europe, the material was used on the roof of the Merchants Exchange in Manhattan.

    Details about galvanized iron or steel roofing are

    at GALVANIZED STEEL ROOFS.

    Also see GALVANIC SCALE & METAL CORROSION
  8. Galvalume®

    is metal roofing coated with zinc or zinc/aluminum. Details are

    at GALVALUME METAL ROOFING
  9. Iron and steel roofing -

    according to the US NPS, "Both iron and steel without any plating were used for roofing.

    The Philadelphia home of the mill owner who rolled the first sheet iron in the United States was roofed in the material around 1794.

    Iron replaced slate on the White House in 1804. Because it was available in large sheets, rather than the small sheets used for plated material, it required fewer joints. Some manufacturers produced factory painted material, but late19th century accounts indicate that paint was an inadequate defense against the corrosive effects of the atmosphere in industrial regions."
  10. Lead Roofing -

    according to the US NPS, "The earliest use of lead for roofing in this country may have been at Rosewell, an 18th-century plantation house at Whitemarsh, Virginia.

    Lead was widely used before the American Revolution for flashings, downspouts and gutters on the best buildings. In the United States, lead never achieved the popularity it had in Europe.

    Installed on early Federal buildings in Washington, D.C., it failed to perform well. Expansion and contraction due to temperature changes produced fatigue, and on steep roofs the effect of gravity caused creep.In the 20th century lead found additional application as a coating for both steel and copper."
  11. Lead-coated copper -

    availble and used in construction since approximately 1900, lead-coated copper does not extend the life of copper itself, rather it provides an alternative color to architectural copper applications and it avoids staining that may occur on some light colored building surfaces (masonry, limestone, stucco, light-colored wood surfaces) where copper is used for roofing, flashing, or gutters.

    Watch out for possible environmental concerns with lead runoff and lead exposure hazards.

    Details about lead in roofing are

    at LEAD ROOFING & FLASHING.
  12. Stainless steel metal roofing

    including terne-coated (tin and zinc-coated 304 stainless steel) roof materials. Details about stainless steel roofing are

    at STAINLESS STEEL ROOFS
  13. Steel metal roofing

    includes

    GALVANIZED STEEL ROOFS


    and
    GALVALUME METAL ROOFING
    discussed in those articles.
  14. TERNE METAL ROOFING, or Terne II

    coated metal roofing are used where copper roof runoff or corrosion are special concerns.
    Terne coated stainless steel roof panels (Terne coating is a a zinc-tin alloy metal coating process that gives extra corrosion resistance. Other terne coatings using lead can present an environmental contamination worry from lead leachate found in roof runoff.)[1]

    Details about terne metals used on roofs, gutters, and for other building exterior components are

    at TERNE METAL ROOFING
  15. ZINC METAL ROOFS -

    according to the US NPS, "Rolled sheet zinc appeared in the United States in 1816, as roofing in New York and as downspouts and gutters in Baltimore.

    Though more than seventy houses in New York had zinc roofs by 1837, it was out of favor by 1840. The popularity of the material was cyclical in the next decades, never matching iron and steel with their various coatings."

    Zinc roofs are similar to copper in their durability and also similar to copper roofs in their installation procedures. But unlike copper, zinc roofs weather to a bluish-white color rather than green. Zinc roofing material, widely used in Europe, is very malleable and can be formed into intricate patterns for metal shingles

    The American Galvanizers Association explains why Zinc works well as a corrosion resistive coating:

    Zinc, like all metals, corrodes when exposed to the atmosphere. However, because of its ability to form dense, adherent corrosion byproducts, the rate of corrosion is considerably lower than ferrous materials (10 to 100 times slower depending on the environment).

    Zinc corrosion products develop naturally on the surface as the coating is exposed to natural wet and dry cycles in the atmosphere and are often referred to as the zinc patina. The zinc patina acts as an additional barrier between the steel and the environment. In addition to the natural barrier protection of the coating and patina, zinc also protects the base steel cathodically.
    - American Galvanizers Association, retrieved 20 April 2015 - seeReferences or Citations

    This same AGA source points out that there are at least seven different types of coated or corrosion-resistant sheet metal products in current production:

    • Galvanized (zinc or Zn-coated)
    • Galvannealed (90-92% zinc / 8-10% iron alloy),
    • AL-ZN alloy: 55% aluminum / 45% zinc
    • AL-Zn alloy: 95% zinc / 5% aluminum
    • Aluminum 100% aluminum
    • Aluminum based alloy: 89-95% aluminum / 5-11% silicon alloy
    • Terne coating (85-97% lead/3-15% tin alloy)

    Properly installed zinc roofs have a life expectancy of as much as 100 years. Factors that affect the wear and life of a zinc metal roof include: Installation zinc roofing over solid roof decking (not spaced nailers)

    Avoid exposure of zinc roof coverings to acids found in some plywood roof decks

    (review ROOFING UNDERLAYMENT BEST PRACTICES) or use zinc roofing products with a protective coating on the underside of the material Use a ventilating mat between the zinc roof covering and the roof deck

    - see our discussion of Enkamat underlayment ventilating plastic roof underlayment

    at ROOF NOISE TRANSMISSION

Also see METALS USED IN ROOFING.

Factors Affecting Metal Roof Life and Leak Resistance

According to the US NPS,

Metal roofs have a long history of use, although improvements have occurred in shop fabrication methods and new sealant materials.

Metal roofs are available in a wide variety of rib configurations, colors, and slope configurations. Architectural systems use an underlying deck to provide structural support, while structural standing seam metal roofs provides an integral supporting frame.

Structural systems can be used to retrofit an existing flat roof deck to provide improved drainage. Sealant is required at valleys, gutters, and drains, to ensure water tightness.

Minimum Slope Requirement for Metal Roofs

Most metal roofing systems can be installed on slopes of 3:12 and greater and standing-seam systems from 2:12 and greater.

Special standing-seam systems designed for slopes as shallow as 1/2 :12 require field crimping machinery and have sealant in all seams. The height of the ribs at seams and whether they are protected with a sealant affect how weathertight a roof will be under extreme weather. More on roof slopes is

at ROOF SLOPE DEFINITIONS.

Barn Roofing - Standing Seam or Exposed Fastener Metal Panel Roofs

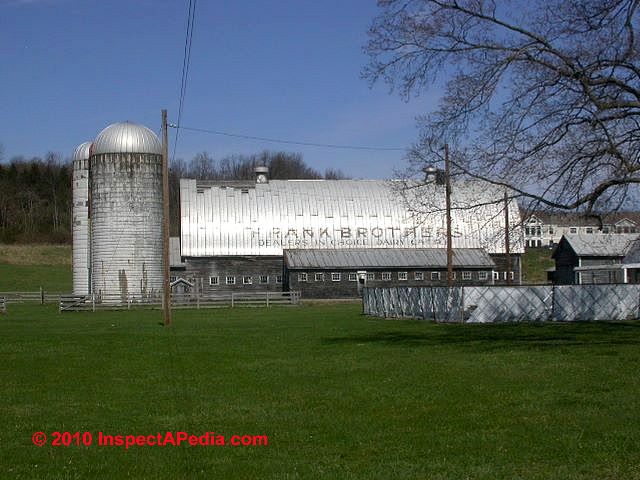

Below we provide photos of both curved and straight traditional metal barn roofing. Also see corrugated roofing and standing seam roofing below.

Metal roofing examples (C) Daniel Friedman

Barn Roofing?

Our friend, builder, and home inspector Steve Vermilye pointed out that "barn roofing" works fine on barns where ventilation is important and a few drops of water falling on a cow are harmless.

But when we find this low-profile corrugated roofing with simple nailed seams installed over a home where occupants expect to stay dry, we are not so sure this is the best option, even if it is one of low cost.

Watch out: as we illustrate in the photo below, metal roofing that is not adequately-secured at the roof edges will eventually be ripped from the roof by storm-winds.

This post and beam barn, built in Poughkeepsie, New York before 1900, demonstrates that a building can stand for a very long time provided it is protected from the weather by a good roof.

But once that roof protection is lost the building has not much remaining life. The original wood shingle roof, when worn and leaky, was covered by a light-weight standing seam metal roof.

Smith Street extension barn, Poughkeepsie, NY in 2021 (C) Daniel Friedman at InspectApedia.com

More-recently storms have torn off a substantial part of the barn's metal roofing.

Below: post and beam details found in the same building (below) give an indication of the probable age of this New York barn when photographed in December 2021 and again in the spring of 2022 (above).

Smith Street extension barn, Poughkeepsie, NY in 2021 (C) Daniel Friedman at InspectApedia.com

Openings through the roof admitting the weather will speed the fall of this magnificent building if the roof is not replaced.

Smith Street extension barn, Poughkeepsie, NY in 2021 (C) Daniel Friedman at InspectApedia.com

See METAL ROOF EXPOSED FASTENER SYSTEM for details about barn roofing material, installation, fasteners, and for barn roof flashing

see METAL ROOF EXPOSED FASTENER FLASHING.

At CORRUGATED ROOFING we discuss all types of corrugated roofing products: metal and others.

Copper Roofs

Metal roofing examples (C) Daniel Friedman

The standing seam copper roof shown below protects Ely Hall, originally the Alumnae Gymnasium, William M. Tubby, architect, 1889, Vassar College, Poughkeepsie NY.

Examples of fastening details for the installation of copper roofs to the building roof deck or structure are discussed under metal and standing seam roofing below.

See COPPER ROOFING for details about antique and modern copper roofing products.

Also see COPPER SHINGLE METAL ROOFING - soldered metal or copper shingle roofing on flat or low-slope roofs.

Corrugated Metal Roofing

The patched corrugated metal roofing shown below (left) covers a pre-1900 home currently used as a parsonage in Dover Plains, NY. The modern corrugated roofing shown at right tops a gambrel-roofed barn in New England. More on roof shapes and architecture is

at ARCHITECTURE & BUILDING COMPONENT ID.

Metal roofing examples (C) Daniel Friedman

At CORRUGATED ROOFING we discuss all types of corrugated roofing products: metal and others.

Metal roofing examples (C) Daniel Friedman

Metal Shingle Roofs

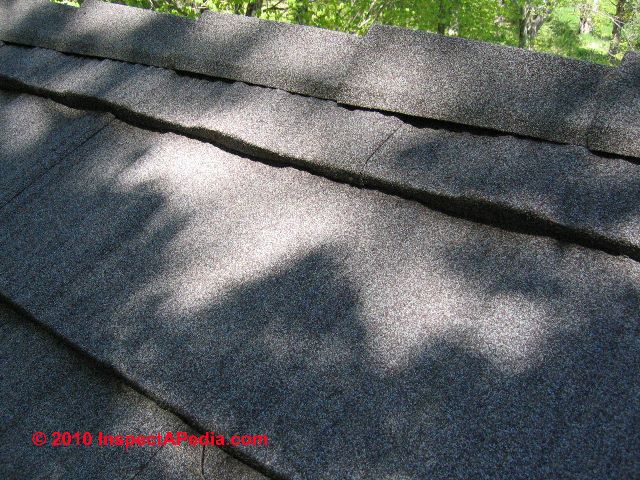

The metal roof shingles at below-right found on a New York home are steel, coated with a granular material that from the ground can be mistaken for asphalt.

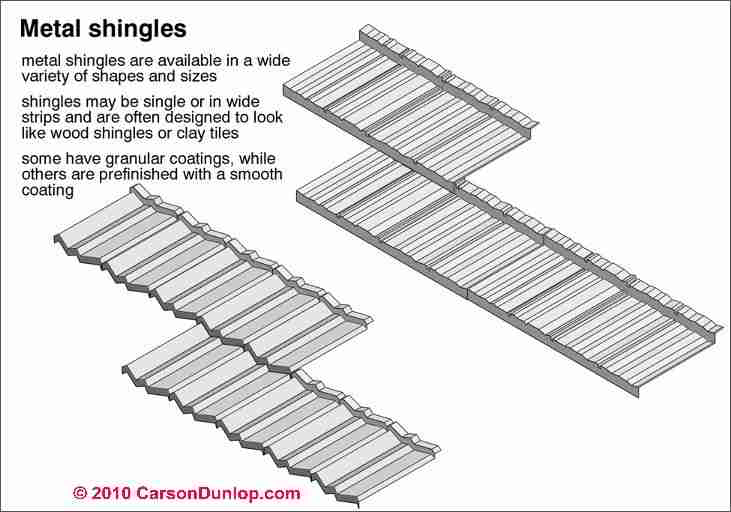

Carson Dunlop Associates's metal roof shingle sketch (below left) provides additional details about this roofing option.

Metal roofing examples (C) Daniel Friedman

Details about metal shingle roofs of this type are

at MODULAR METAL ROOF SHINGLE SYSTEM.

Metal roofing examples (C) Daniel Friedman

Metal Shingle Roofs, Embossed, Antique

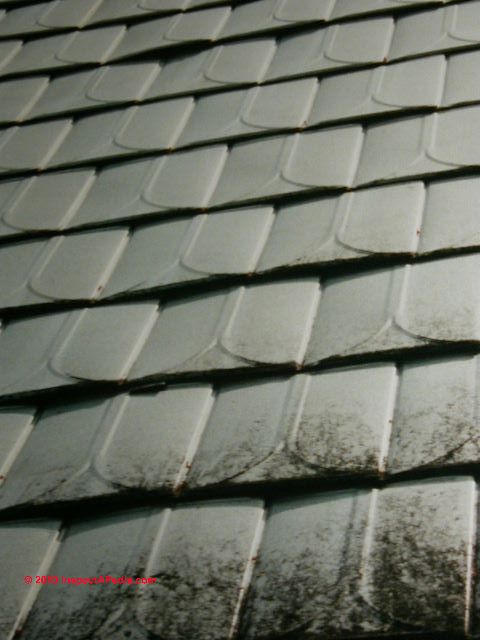

The antique embossed metal shingles (below) are found on the Justin Morrill Smith historic homestead, Vermont.

Metal roofing examples (C) Daniel Friedman ...

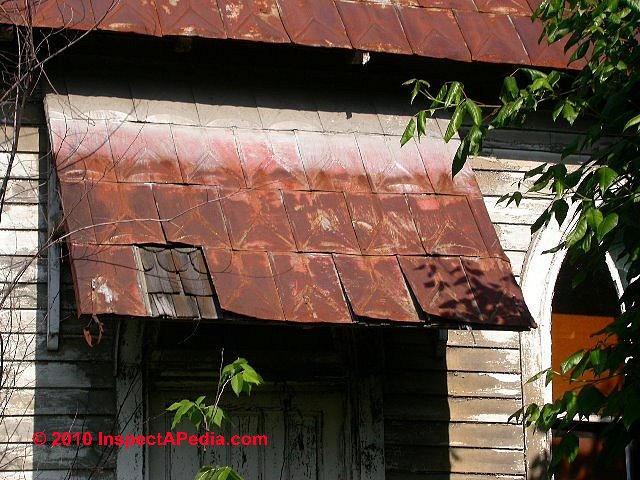

The rusted metal shingles on the church roof (Clintondale, NY) shown in our photo (above) demonstrate more about the history of how metal roofing was used in the U.S.

Metal roofing examples (C) Daniel Friedman

Below: we see that the original wood shingle roof was re-roofed using metal shingles, probably before 1900.

Metal shingle roof, Clintondale NY (C) Daniel Friedman

Quoting Grapefine Design Guidelines:

Metal roofing in America is principally a 19th-century phenomenon. Before then the only metals commonly used were lead and copper.

Tin-plate iron, commonly called "tin roofing," was used extensively in Canada in the 18th century, but was not commonly used in the United States until rolling mills were established in this country. The low cost, light weight, low maintenance and ease of shipping of tin plate made it a common roofing material.

Embossed tin shingles, whose Grapevine Design Guidelines – Roof Design Guidelines 4.9 - 2 surfaces created interesting patterns, were popular throughout the country in the late 19th century. Tin roofs were often kept well-painted in red or green to imitate the green patina of copper. Unfortunately, few of these roofs remain intact today.

Similar snap-together metal roof shingles made of copper are discussed just below and also at patents described

in this article: COPPER SHINGLE METAL ROOFING - soldered metal or copper shingle roofing on flat or low-slope roofs.

Also see MODULAR METAL ROOF SHINGLE SYSTEM.

Soldered Flat Shingle and Flat Copper Metal Roofs

Metal roofing examples (C) Daniel Friedman

Flat metal shingles with interlocking edges were produced in both steel and copper, then soldered when in place.

Usually we find these installed on flat or low-slope roofs such as at dormer insets on homes constructed in the U.S. before 1900, often in the mid to later 1800s, but on occasion even on new or newly restored homes as well.

Carson Dunlop Associates's standing seam metal roof sketch (below) includes a sketch of soldering used to connect flat metal roofing panels.

Watch out: large expanses of metal roofing with soldered connections may flex and break open the soldered joints due to thermal movement.

Details about soldered copper roofs and some suggested inspection points are

at COPPER SHINGLE METAL ROOFING - soldered metal or copper shingle roofing on flat or low-slope roofs.

Standing Seam Metal Roofs

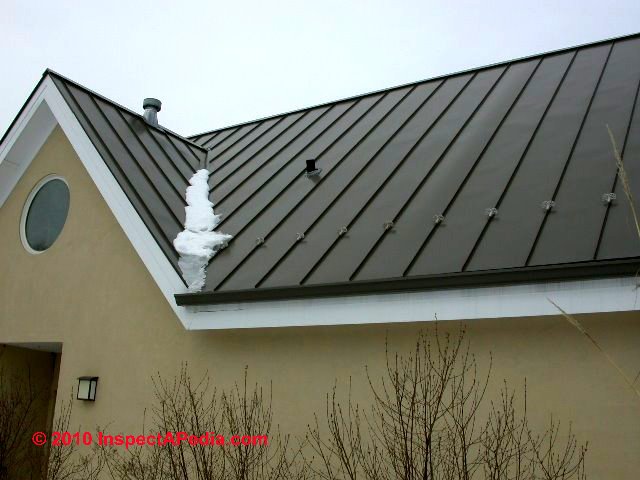

Standing seam metal roofs were widely used throughout North America and in modern forms remain in use today as a very durable roof covering, especially if the metal coating or paint is maintained.

Standing seam metal roofing (C) Carson Dunlop Associates

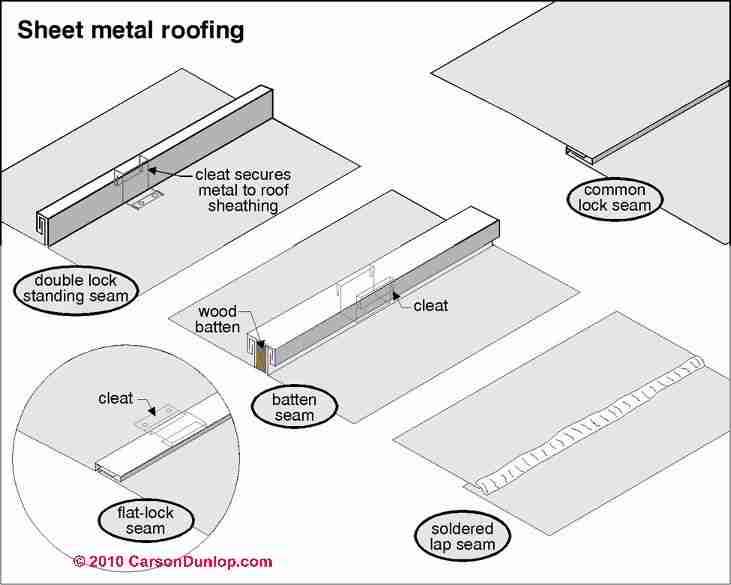

Carson Dunlop Associates's standing seam metal roof sketch (left) shows how sheet metal roofing is secured to the roof deck using cleats. Sections of metal roofing may be joined by

See  STANDING SEAM METAL ROOF INSTALLATIONfor details about standing seam roof installation, flashing, maintenance, repair.

Metal roofing examples (C) Daniel Friedman

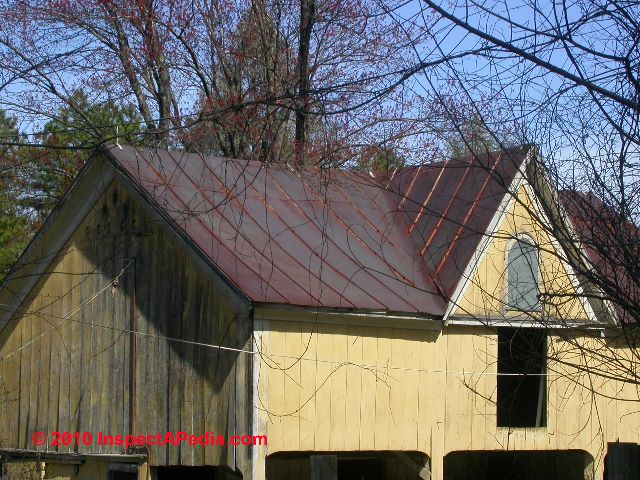

Our rusted standing seam barn roof photo (below left) demonstrates a common roofing sequence history: metal roofs were installed over worn-out wood shingle roofs as a more economical way to re-roof the building.

A second rusted standing seam barn roof is at below right, and our third standing-seam photo below shows a modern coated standing seam roof on North Henderson, the computing facility at Bard College, Annandale, NY.

Metal roofing examples (C) Daniel Friedman

Recommended distance between seams on a standing seam metal roof

Metal roofing examples (C) Daniel Friedman

Reader question: First, thank you for your excellent site. A great example of what makes up for the crappy stuff that draws so much criticism. This is for Vermont, where our 40 by 50 Seventies ranch house needs a new roof.

We were thinking of going from asphalt to standing seam, though it's not a highly pitched roof and the studs are 20 inches on center. Is there a recommended distance between the seams for a house like that, in a northern climate that sometimes sees heavy snowfall sometimes made heavier by subsequent rain?

Reply: Seam height vs. pitch on standing seam roofs

The spec for metal roofing seam distances is not about the horizontal distance between seams - that's pretty standard and up to the manufacturer.

But the seam height above the roof surface is of interest on lower slope roofs if we want to be sure the roof won't leak. You'll see Eric's hand and mine in the photo at below left, and a standing seam metal roof clip installed to the decking at below right.

Standing seam roof installation (C) Daniel Friedman Eric Galow

You want to discuss the slope of the roof with the roofing supplier.

For the metal roof we installed atop my office/lab a few years ago, as the slope was rather low (less than 4/12) we were assured that a standing seam roof would work perfectly well (New York) provided we installed one that had taller seams. I.e. taller, not closer together, on lower slopes.

Standing seam roof installation (C) Daniel Friedman Eric Galow

The metal roof is secured not to the rafters but to the roof decking which itself is secured to the rafters. As you may have seen, the connection of roof to deck is by clips that mount over a seam and are screwed to the deck. Then the clip is covered by the next overlapping seam cap of the next section.

That's why rafter spacing shouldn't be an issue.

Also as a metal roof is typically lighter than most other options (asphalt for example) the rafter spacing should be less of an issue than before - with respect to the weight of the roof.

See STANDING SEAM METAL ROOF INSTALLATIONfor details about standing seam roof installation, flashing, maintenance, repair.

Metal Roofing History, Manuals, Sources, Products, & Manufacturers

Best Practices Guide to Residential Construction listed producers and sources of metal roofing, metal roof fastening systems, and related metal roofing products to which we add additional resources.






ADVERTISEMENT





Reader Comments, Questions & Answers About The Article Above

Below you will find questions and answers previously posted on this page at its page bottom reader comment box.

Reader Q&A - also see RECOMMENDED ARTICLES & FAQs

On 2018-11-14 - by (mod) -

Paco

It sounds like an incomplete roof job; for most climates you want at the very least ceiling or under-roof insulation and a vapor barrier on the warm side of the insulation.

On 2018-11-14 by Paco

Our metal roof has no underlayment,no air spacer.it isn't insulated. It drips condensation inside. We are colder in winter and now we bake in the summer.and it's a simple 65 ft trailerhome.no plywood. .was this a bad install.job?

On 2016-08-11 - by (mod) -

Jill

Galvanised - is a process used to reduce the rate of rust and corrosion on metal components, not wood materials. See GALVANIZED STEEL ROOFS https://inspectapedia.com/roof/Galvanized_Metal_Roofing.php for an example.

You might mean pressure treated wood - see

PRESERVATIVE TREATED LUMBER https://inspectapedia.com/BestPractices/Lumber_Preservatives.php

if that's what your pergola and car port are using as a wood structure.

You wont' find "galvanized wood" - that's a mix-up of terms.

If indeed you're planning to use a metal roof you will probably enjoy a dark-colored coated steel roof, black, or dark green, as the stains will show up less.

Black will show stains the least but may be hotter than you want.

Indeed my read of the metal roof care instructions for the products I've used shows that the manufacturer warns that if you don't keep cleaning off the roof surface, leaves and organic debris will indeed discolor the roof and worse, accumulated debris left on the roof may lead to early corrosion and a shorter roof life.

My OPINION about the stain issue is that the level of risk depends on

- the proximity of trees or other sources of debris that may blow onto the roof

- the roof slope - steeper roofs drain faster and debris washes off more reasily

- the use of snow guards - that will catch debris and hold it on the roof

- ease of access to the roof for periodic cleaning

- and of course the manufacturer's instructions for metal roof maintenance for their specific product.

Watch out: some metal roofing systems that are to be installed atop treated wood or preservative treated wood may be corroded by interaction between the wood preservative and the metal roof product. Be sure to review this with your roofing manufacturer as they may require some additional installation details to assure a long roof life.

On 2016-08-11 by Jill

Hi can you help please? I need advise on what roofing product to buy for a car port and pergola? I am having the car port roof build in the same structure and the same galvanised wood as the pergola.

The pergola runs along the back of the garage and car port. I notice there are zinc, plastic coated steel and poly carbonate sheets.

Where we live is covered in trees and so everything goes green and I thought it may be best to have a green coloured roof product on both the car port and the pergola. Do you have any advice please? Kindest Regards Jill

On 2015-10-06 by Bill

What are the issues with installing composition shingles over metal roofing?


...

Continue reading at LIFE EXPECTANCY of METAL ROOFS or select a topic from the closely-related articles below, or see the complete ARTICLE INDEX.

Or see these

Recommended Articles

Suggested citation for this web page

METAL ROOFING at InspectApedia.com - online encyclopedia of building & environmental inspection, testing, diagnosis, repair, & problem prevention advice.


Or see this

INDEX to RELATED ARTICLES: ARTICLE INDEX to BUILDING ROOFING

Or use the SEARCH BOX found below to Ask a Question or Search InspectApedia

Ask a Question or Search InspectApedia

Try the search box just below, or if you prefer, post a question or comment in the Comments box below and we will respond promptly.

Search the InspectApedia website

Note: appearance of your Comment below may be delayed: if your comment contains an image, photograph, web link, or text that looks to the software as if it might be a web link, your posting will appear after it has been approved by a moderator. Apologies for the delay.

Only one image can be added per comment but you can post as many comments, and therefore images, as you like.
You will not receive a notification
when a response to your question has been posted.
Please bookmark this page to make it easy for you to check back for our response.
Our Comment Box is provided by Countable Web Productions countable.ca

Comment Form is loading comments...

Citations & References

In addition to any citations in the article above, a full list is available on request.



ADVERTISEMENT
