Tanner Daniel Gilligan points out a subsitution for roof-wall flashing over a bay window: the installer tried a wavy line of white caulk aghainst the gray stuco exterior. (C) Daniel Friedman Tanner Gilligan 2013Roof-Wall Flashing SNAFUs to Avoid

Roof-wall flashing detail specifications & SNAFUs:

This article illustrates and discusses alternate or rather goofy attempts at roof-wall intersection flashing to prevent leaks & water damage and points out where leak risks may remain.

In our page top photo my grandson, Tanner Gilligan points out the white caulk that was installed as a stopgap measure where the builder has installed a bay window into a stuccoed wall without proper roof-wall flashing (red arrow).

Tanner would have also pointed out the horizontal flashing (orange arrow) had he not needed his other arm to hold on to the building.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.

Wall Flashing & Step Flashing Snarl-Ups to Avoid

Roof Wall Flashing Detail (C) Wiley and Sons - S Bliss

This article series discusses best practices construction details for building exteriors, including water and air barriers, building flashing products & installation, wood siding material choices & installation, vinyl siding, stucco exteriors, building trim, exterior caulks and sealants, exterior building adhesives, and choices and application of exterior finishes on buildings: paints, stains.

[Click to enlarge any image]

Improper Roof-Wall Flashing Example: horizontal roof abutting vertical wall

In this photo we show a feeble attempt at flashing and counter flashing at the roof-wall intersection of a low slope roof.

The installer tacked a row of asphalt shingles to the wall, caulked their top edge, and hoped for the best.

What's wrong in this photo?

  1. Asphalt shingles are not durable flashing material
  2. And every shingle cutout slot is a potential "flashing" leak point.
  3. Caulking the upper edge of asphalt shingles to a vertica sidewall is not a durable nor water-tight seal

Use metal step flashing and counter-flashing where a lower shigle roof abuts a side-wall.

Proper Roof-Wall Flashing Example: horizontal roof abutting vertical wall

To install the roof-wall flashing above the builder bent the top edge of the flashing into a 90-degree lip about 2 cm in width.

That lip is then set into a reglet or groove, in this case cut into the mortar joint of the brick wall above.

Above the flashing lip the groove is sealed with mortar or with a sealant to prevent water from running behind the flashing and to hold it in place.

Roof-wall flashing properly installed on a home near Goodrich Castle in Ross on Wye in HErefordshire (C) Daniel Friedman

Just above, at a similar abutment of a roof to a vertical wall, we illustrate a proper installation of flashing, in this case lead, installed at the abutment of a lower roof to a masonry wall on a building near Goodrich Castle in Ross on Wye in Herefordshire in the U.K.

Also see CAULKS & SEALANTS

More Questonable or Ugly Roof-Wall Flashing Examples

Exposed nails in flashing, not sealed

Below we illustrate that using a single piece of metal flashing where the uppermost edge of a shed-roof abuts a vertical building sidewall works fine, though the use of exposed nails (see our photo below) may form leak or wear points in the roof.

Shed roof to wall flashing (C) Daniel Friedman

Below we discuss the very different case of the use of single-piece versus step flashing at the abutment of the side of a sloping roof to a building sidewall.

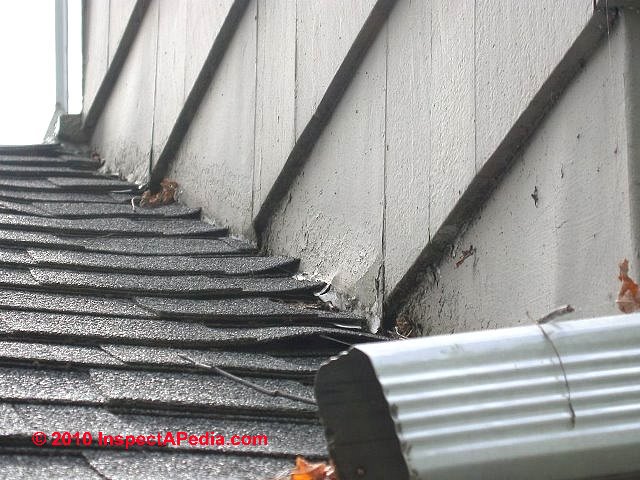

Re-Using Step Flashing When Re-Roofing?

Step flashing at re-roof (C) Daniel Friedman

At re-roofing time, when the old shingles are to be torn off, it's not always so easy to re-use the original step flashing that extends up under the building siding.

The new shingle courses have to line up exactly with the original shingle course/step flashing placement, the old step flashing is often bent-up during old shingle removal, making it hard to get the new shingles to lay flat.

As we see in our step flashing re-use at re-roofing time photo (left) the installer cut the new shingles too long so they have two reasons to be buckled, lifted, and vulnerable to wind-blown rain leaks at this building wall.

Installing step flashing but no counterflashing at a sloped-roof to sidewall abutment

Step flashing on a log cabin (C) Daniel Friedman

Flashing against irregular sidewalls such as this up-state New York cabin (above left) can require some thought.

Against a curved log wall where counter-flashing is needed, we'd need to use custom-formed lead counterflashing as is done on tile roofs, or cut a reglet into the wall deep enough to bend the counterflashing and hook it into the wall to keep wind-blown rain and wall run-down rain from moving behind this step flashing.

Step flashing on a log cabin (C) Daniel Friedman

Our photo above shows leak stains on the interior of the building wall where this log wall-roof-flashing installation had no counterflashing.

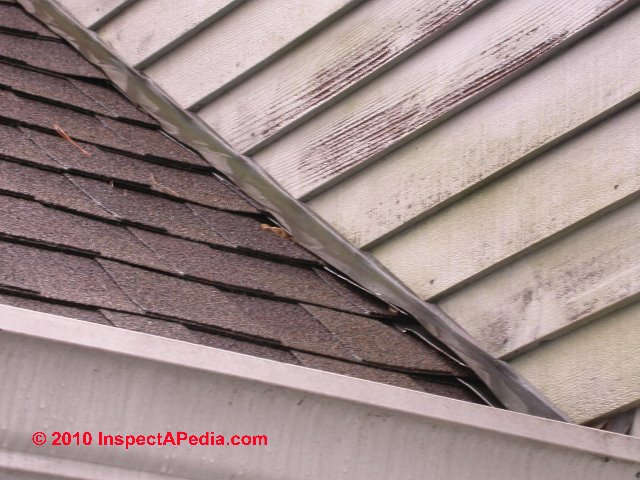

Use of Continuous Single-piece Solid Metal Flashing vs. Step Flashing at Roof-Wall Abutments - Steep Slope Roofs?

Single piece wall flashing (C) Daniel Friedman

Our photo shows the bottom end of a single-piece of (damaged) sloped-roof-wall flashing. In our OPINION it's not likely that this flashing installation will long resist any significant quantity of water at the lower roof edge, and both blowing wind and any backup due to gutters, ice, or snow will exacerbate the leak risk.

NRCA (Berg) points out that while continuous metal flashing is used at wall junctures in certain steep-slope roof installations, special flashing installation details are required that are different from a step-flashing sealed roof, and even when installed according to specifications, this approach can leave the roof vulnerable to leaks or moisture damage from wind-driven rain.

If single piece flashing is to be used, according to Mr. Berg, [paraphrasing]

Berg continues that "Because the hook edge and cleats tend to raise the shingles above the flashing, the detail is somewhat vulnerable to wind-driven rain and from moisture trapped in debris that may accumulate in lower areas of the flashing".

OPINION: DF: inspecting thousands of residential properties we have encountered quite a few attempts to use a single piece of metal flashing instead of step flashing at roof-wall abutments, virtually never installed according even to the not-entirely-reliable NRCA recommendations above.

And in our experience, when a single piece of flashing extends only a few inches under the shingles, especially on a long roof slope, and worse on a roof that happens to slope slightly towards rather than away from the abutting vertical building wall, the accumulated roof drainage water near the bottom end of the roof-wall intersection will overwhelm the width of the flashing and, because it is not directed back out on top of successive shingle courses, it leaks into the building or building wall.

In sum, single piece roof-wall flashing is a bad idea in the hands of typical residential roofers and re-roofers, and this approach has been found by home inspectors to be unreliable in practice.

Proper Roof-Wall Abutment Flashing Examples

Step flashing slate to brick wall (C) Daniel Friedman

Above we see roof-wall step flashing, completed and effective of a slate roof against a brick wall.

Roof wall flashing against brick wall (C) Daniel Friedman at InspectApedia.com

Above: lead counter-flashing has been let into stepped reglets cut into the vertical brick wall. This is the right approach to adding counter-flashing over the step flashing between shingle courses.

Even though it's "correct", a few details could have made this a better roof-to-wall flashing job.

  1. It appears that this installer drove nails thorugh each bit of counter-flashing into one of the mortar joints to try to secure it in place.

    Each of those nails is, of course, a penetration of the flashing and a possible leak, especially in heavy wind-blown rain or if there is snow piled up against (and later melting against) this wall.
  2. To resist frost damage and provide a better seal the roofer could have used mortar or a sealant in those horizontal reglet cuts above the bent-over flashing after it was set into the brick wall.

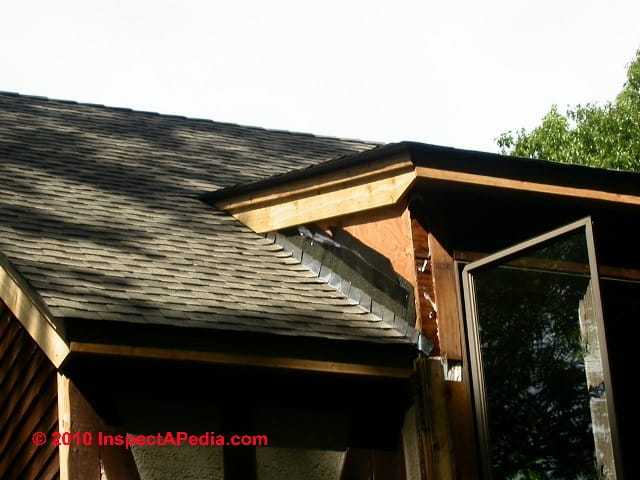

Below we see, flashing in-process, with step flashing against a dormer sidewall before the dormer siding has been put in place - the dormer siding and counter-flashing over the step flashing remain to be installed..

Also see FLASHING ROOF WALL DETAILS for more details about proper exterior wall flashing specifications.

Step flashing under construction (C) Daniel Friedman

This article is an addendum to FLASHING ROOF WALL DETAILS [live link just below] adapted from BEST ROOFING PRACTICES.






ADVERTISEMENT





Reader Comments, Questions & Answers About The Article Above

Below you will find questions and answers previously posted on this page at its page bottom reader comment box.

Reader Q&A - also see RECOMMENDED ARTICLES & FAQs

On 2021-05-2 by (mod) - step flashing and counter-flashing let into brick wall mortar joints is good practice

Roof splash-up on sidewall (C) Daniel Friedman@Sarah,

There's absolutely nothing wrong and absolutely everything right if the roofers installed step flashing (under shingles, against wall) and counter flashing (upper edge let into the mortar joints and then sealed).

I'm sorry if something in the article above was confusing and I will review the text against your question.

This illustration shows step flashing at the shingles and counter-flashing whose top edge is set into the mortar joints - this flashing approach would pertain at the intersection of a roof sloping along a brick wall.

The illustration also shows how rain splash-up on the lower roof stains the brick wall (actually it's probably a black algae growth

- but that problem is caused by the absence of a gutter along the upper roof eaves, and has nothing to do with the flashing ...

except that if the lower roof-to-wall flashing had not been well-sealed water from the rain splash-up might well have leaked behind the flashing and into the ceilings below that lower roof section.

Below we illustrate a similar situation, using Steve Bliss's sketch of step flashing and counter-flashing along a brick chimney.

Chimney saddle or cricket (C) Carson Dunlop Associates

Details are at FLASHING, CHIMNEY MISTAKES & LEAKS

And below, from that same article, I'm pointing to what happens when counter-flashing is omitted and the installer tries to get by using blobs of roofing mastic over the tops of the step flashing: it leaks.

Photograph of a brick chimney cracked exterior, possibly due to heat.

The roof - to - chimney side flashing shown above is a mess, but it's main crime is the omission of counter-flashing let into the brick mortar joints or adequately sealed to the vertical brick wall.

  1. The use of roof mastic did not provide a durable long-term seal: you can see it dries, cracks leaks behind the step flashing (my pen is showing that separation)
  2. There was no counter-flashing
  3. The step flashing against the chimney has been "supplemented" by more flashing, bent up just about 1/2" under the new roof shingles - but again, wind-blown rain and rain water running down the chimney side will simply run under that "add-on" flashing material.
  4. It looks as if that supplemental flashing runs under the upper shingle tab but I'm not clear what's under that? Normally we'd extend flashing under the single course below, not over-it.

On 2021-05-24 by Sarah

Regarding the first few paragraphs and photos in the "Wall Flashing" section, I'd like to better understand the reasoning for why one type is not recommended and the other is?

I ask because we recently had the flashing above the "eyebrow" above the garage door replaced. The top recommended roofers in our area both suggested "tuck pointing" the flashing which involved removal of mortar (front of the house is brick), bending the top edge into the space (as you noted, they bend it at a 90 degree angle) and then filling w/new mortar.

There were actually two different pieces of material used: one was installed on top of the edge of shingles and then the other was installed along the front of the brick and tucked into the space where the original mortar was removed as I described. It looks awful, but the aesthetics are besides the point right now. I'd like to know the functional reason why you don't recommend this approach.

We thought it sounded like something that would provide a tighter seal. I have photos if that would help.

On 2020-11-01 by (mod)

Arnel

This sounds a bit like a quiz question; if so, good luck on your test.

The question is, in my view, so broad that I have no idea how to answer. Tools, fasteners, types of flashing materials, components, underlayments, sealants, etc. ?

On 2020-11-01 by Arnel tejada

What are the accessories in installation of flashing?

On 2016-08-27 by (mod)

Sorry Polly, I don't know what's meant by "aluminum soakers", nor what kind of wall we're discussing. If you mean that a new stucco wall has cracked, that sounds as if the stucco job was defective, but I can't say if the underlying problem was a flashing error or a stucco mix/application error.

On 2016-08-27 5 by Polly

Hi my builder has used aluminium soakers and rendered the wall. It already has cracks. Shod it have lead flashing on it?


...
