This slate roofing photo library shows various kinds of roofing slate, slate roof colors, slate
roof patterns, and roofing slate defects. This photographic dictionary of roofing slates is a supplement
to our detailed article (links at page left) describing procedures for evaluating the condition of slate roofing.
How to inspect, identify defects, and estimate remaining life of slate roofs are addressed.
InspectAPedia offers impartial, unbiased advice without conflicts of interest.
We will block advertisements which we discover or readers inform us are associated with bad business practices,
false-advertising, or junk science. Our contact info is at
InspectAPedia.com/Contact.htm.
An online photo dictionary of roofing slate colors, types, and conditions
This article series assists home inspectors, building buyers or building owners, and roofing contractors in
evaluating the condition of slate roofs by providing photos of various slate materials, patterns, defects,
and conditions. Also see How to Inspect & Repair Slate Roofs for a detailed article about evaluating the condition of slate roofing and repairing worn or damaged slate roofs.
A Photographic Guide to Slate Roof Patterns
As we emphasized at
SLATE ROOF INSPECTION & REPAIR our main article on slate repairs, opinions run heavier than actual data.
The abandonment of good slate roofs which should have been repaired
is a financial shame and the destruction of a valued asset. At the
same time, careless optimism about a bad slate roof which is at the
end of its life risks an angry inspection client.
SLATE ROOF INSPECTION & REPAIR reviews
types of slate, common defects, inspection topics, and some repair
tips.
Photographs of Closed Lap Staggered Slate Roof Pattern

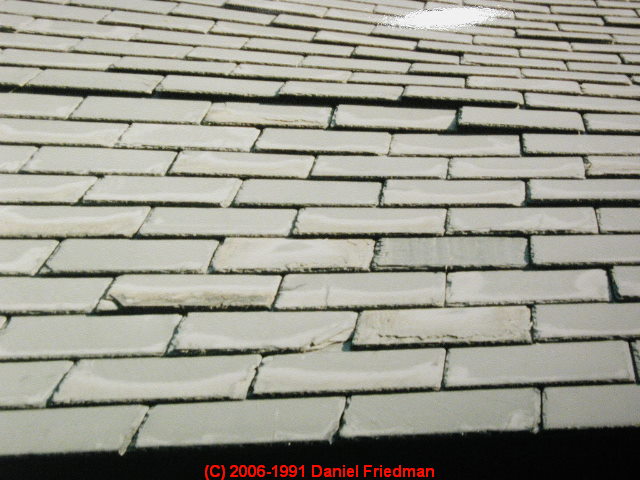

Closed lap staggered slate pattern, don't mistake this for the leak-prone "Dutch lap" which too often was installed with minimal side lap between slates

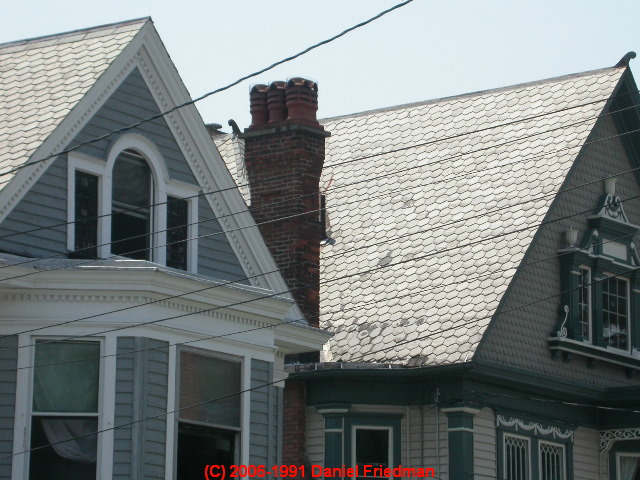

Diamond pattern slate roofs, tar patched, a few missing slates, this roof may seem OK, but what about all of that tar/mastic patching?
Photo Guide to Diagonal Pattern Slate Roofs

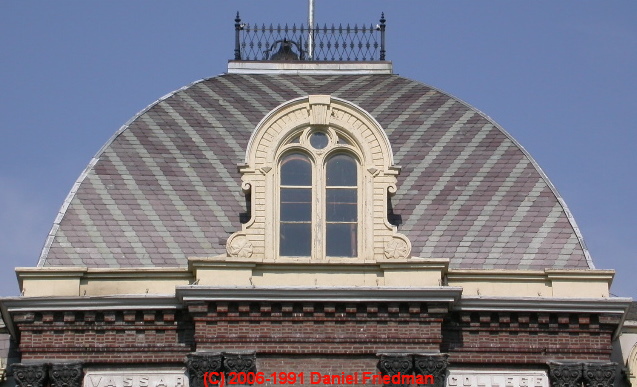

Diagonal pattern roof slate, red and green, good condition, shown here on a building on the Vassar College Campus, Poughkeepsie, NY
Slate Roof Dutch Lap or Staggered Slate Lap Roofing Pattern Photographs

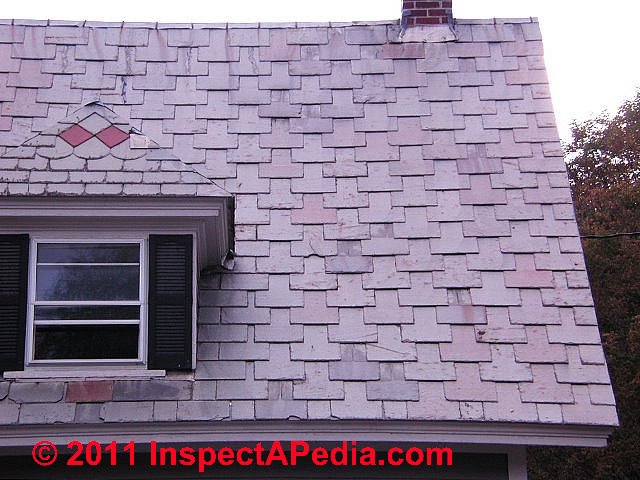

Dutch lap pattern with good side lap, adequate side lap makes leaks less likely but quite often shingles were installed in this pattern with just an inch of side lap and very little head lap, making for a leaky roof. Our Dutch lap slate roof at above left is on the Vassar College Campus, Poughkeepsie, NY, and at above right is a Dutch-lap pattern slate roof on a home in Putney Vermont.
Photo Guide to French Pattern Roofing Slates

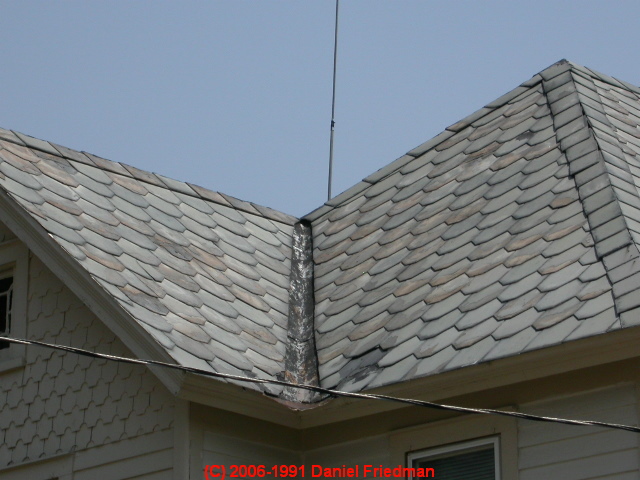

French Pattern Slates, generous side lap visible where slate is missing, tarred valley, thin, delaminating slates

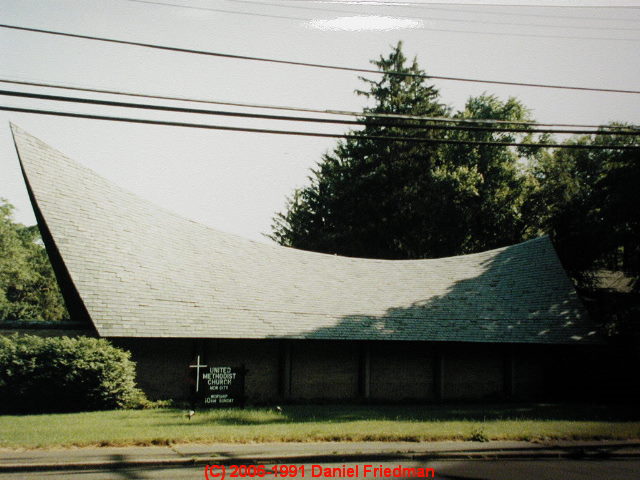

Photo Guide to Graduated Slate Roofing Patterns

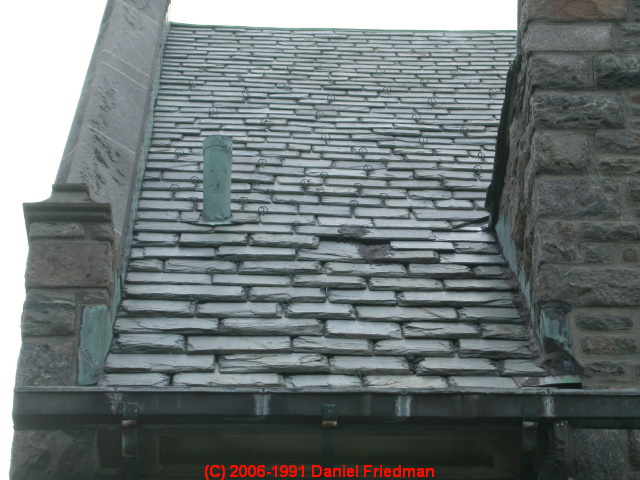

Graduated Slate Roof, generally good, some roof mastic patching at a missing slate; note the mastic at sidewall step flashing?

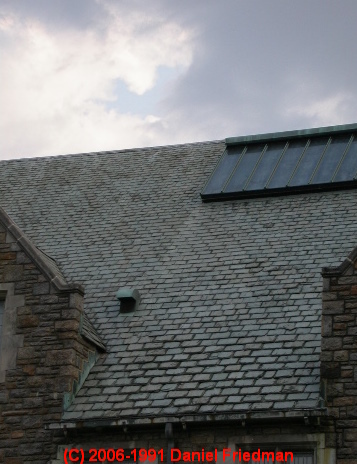

Graduated Slates, green slates, generally good condition, note less algae below copper salts washing down from skylight
