Septic Tank Pumper Truck Operation Procedures
|
Septic pumping trucks are specialized vehicles which combine a powerful vacuum pump with a holding tank
for sewage and wastewater.
The vacuum pump is activated, suction confirmed, the
pumper is connected to a 4" or larger vacuum line, and the operator uses the line to empty the
septic tank.
Common septic pumper truck vacuum pump brands include Battioni & Pagani vacuum pumps, Conde vacuum pumps, Hertell vacuum pumps, Masport vacuum pumps, Moro vacuum pumps, NVE (National Vacuum Equipment) pumps, PB vacuum pumps, Juro vacuum pumps. Contact information for the manufacturers or distributors of all of these pumper truck vacuum pumps are at the end of this article. [3][4][5][6][7][8][9][10]
An example of the type of vacuum pump used on septic tank service vehicles is the Masport HXL400 System - Water cooled 400 CFM unit. Various pump sizes and pumping rates are available, all of them that work on septic pumper trucks will be similar in effect however.
This is a very powerful pump, typically weighing 470 pounds, using 6-vanes, water cooled, and pumping sewage at 400 cubic feet per minute. It should be readily apparent that septage moving through the unit and into the pumper truck will be highly agitated and mixed in the truck. This agitation effect will be true with any pump used for this application. |
A Photographic Step by Step Guide to Pumping or Cleaning a Septic Tank
This is a chapter of "Septic Tank Pumping Procedure" which provides a step by step, photo-illustrated guide to opening, pumping, and inspecting septic tanks,
how a conventional septic tank is
located, opened, pumped out, cleaned, and inspected. This guideline is intended for septic pumping tank truck
operators and as general information for homeowners or septic service companies concerned with septic system care.
The steps in servicing a septic tank are listed below, accompanied by
photographs that show each of the critical steps in pumping, cleaning, and inspecting a septic tank.
Readers should see Septic Tank Pumping Frequency Guide for a table explaining when to schedule a septic cleanout.
Citation of this article by reference to this website and brief quotation for the sole purpose of review are permitted. Use of this information at other websites, in books or pamphlets for sale is reserved
to the author. Technical reviewers are welcome and are listed at "References."
This is a chapter of Inspecting, Testing, & Maintaining Residential Septic Systems an online book on septic systems.
|
Before placing the septic tank pumping lines or performing any other steps with the
septic pumping truck the operator locates the septic tank and removes its cover (discussed above.)
With the septic tank opened the operator performs an initial action to begin breaking up the
septic tank floating scum layer and settled sludge layer as shown in the photo here. |
|
The septic pumper operator lays out the pumping vacuum lines from the tank
to the septic tank.
The vacuum lines are not yet connected to the pumper
truck nor has the vacuum pump been turned on. |
|
|

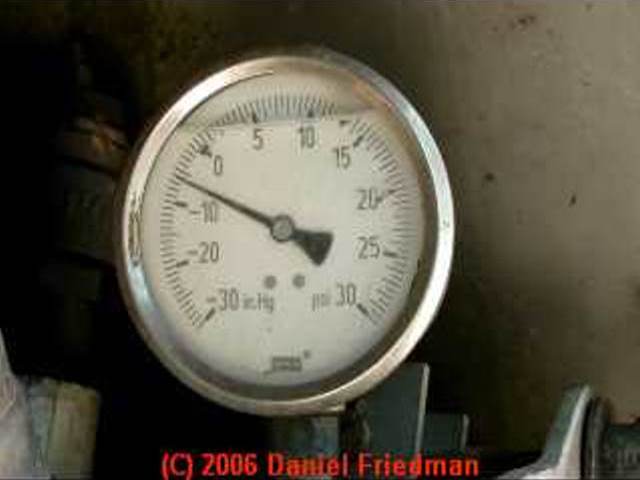

These photographs show the septic pumper truck's vacuum pump assembly. The second
photo of the vacuum pump gauge indicates that the pump is running at about
-6" of mercury.
In preparing to connect the pumper hose to the truck's transport tank,
the operator must
first turn on the vacuum pump.
You will only forget to do this once, as opening the
valve at the bottom of the pumper tank without first turning on the vacuum pump
can permit sewage to flow back out of the tank onto the operator!
|
|
The operator listens to the truck's vacuum pump motor to assure that the
vacuum pump is operating correctly.
If the pump is blocked or jammed it will need
to be cleared or repaired. |

Once the vacuum pump is operating satisfactorily we're ready to remove the pumper truck
tank valve cover and to attach the vacuum line to the pumper truck.
In the first photo at left the
operator is holding a bucket under the tank valve to catch the small amount of
effluent that may fall out of the valve body when the valve cap is removed in order
to attach the pumping hose.

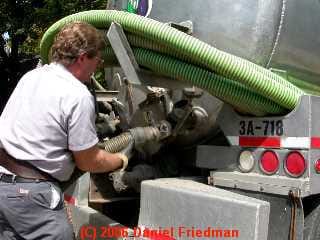

The second photo shows the operator attaching the
first length of septic tank pumping hose to the tank truck.
|
|
With the pumper truck's vacuum pump operating properly and the septic pumping hoses laid in place, and with
the first hose section already connected to the pumper truck, the operator connects the remaining sections
of the vacuum line.
Watch out: the operator in these photos is not wearing personal eye protection equipment nor an apron. Those are recommended to protect from hazards of sewage contaminant splash-back. |
