This document describes how visual evidence of septic repairs such as recent excavation or dirt piles can indicate a septic system failure
These pages are part of our SEPTIC DYE TEST PROCEDURE for testing septic system function.
Technical review by industry experts has been performed and is ongoing - reviewers are listed at References. Comments and suggestions for content are welcome.
Use of this information at other websites is prohibited; reproduction in electronic or printed form is prohibited.
The observations described here can be performed regardless of whether or not a septic test is planned at a property.
How to Inspect for Evidence of Recent Work on a Septic System
Anyone buying a property or owning a property and needing to assess the condition of the septic system should first perform a simple visual inspection of the site, as we are discussing in these articles. Simply paying attention to a building site's shape, slope, size, and evidence of recent work are clues about septic system condition.
Evidence of recent work:Is there evidence of recent pump-out such as a maintenance record, information from the property owner, or
evidence of recent excavation that could mark an access to a septic tank?

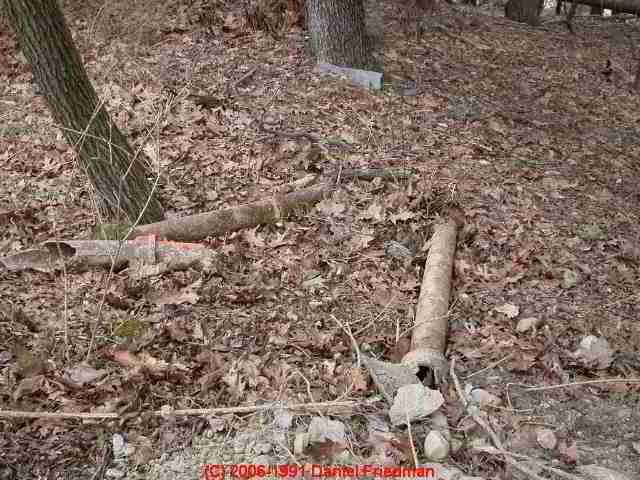

In the photo shown here, discarded waste pipes left on the property
surface were a strong indication of recent septic work.

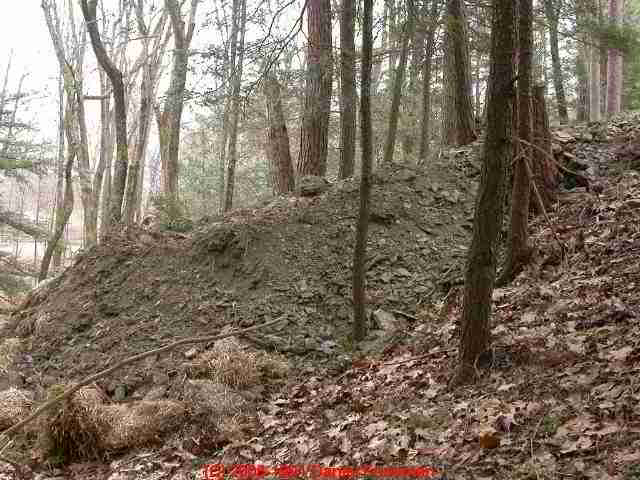

In this photo of freshly piled soil, dirt had been pushed over septic system components located at the top of a steep slope, suggesting possible
system operating problems which the contractor hoped to "correct" by burying a wet area.
If he/she had gotten off of the backhoe
to walk into the woods and look at the far end of this new dirt pile, s/he'd have seen that the dirt push was inadequate even to
disguise a problem much less fix it.
These measures are disappointing in their ineffectiveness and on occasion are suggestive of malfeasance too.
The straw bales in the last photo were an ineffective prior attempt to ameliorate the effluent flow out of this system.
The septic "pumper" or homeowner had tried to "fix" this collapsing septic tank access by piling up concrete blocks helter-skelter over the septic tank, covering these with a round concrete septic tank access cover. This was a very dangerous condition, risking septic tank collapse. The area was immediately roped-off and covered pending repairs.
