Sewer or Septic drain line replacement procedure: beginning here, this article series describes in detail all of the steps in diagnosing & repairing or replacing a broken or damaged main drain between building and public sewer or building and septic tank, including when, where, how, and why a sewer pipe or "drain line" is replaced.

How to determine that a sewer or septic system drain pipe needs replacementStep by step main drain piping repair or replacement, between the house and septic tank or sewer connectionHow to document the location of buried plumbing & septic components
Final site restoration guide after sewer or septic pipe replacement

Diagnosing the Cause of a Blocked Building Drain or Sewer Line

Photograph of an overlowing toilet caused by a blocked building drain

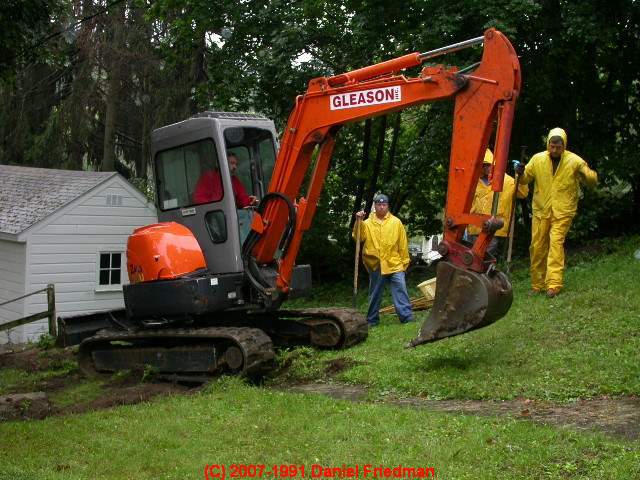

The sewer drain line which was replaced in this photo-illustrated case runs from the building exterior to a septic tank located downhill from the home.

We present an actual case study, illustrated with photos of each step in the diagnosis and replacement of a blocked sewer line. The waste line in this case was found to be blocked, damaged, old, and needing replacement in the course of an attempt to clear a blocked drain between the house and septic tank. Technical reviewers are welcome and are listed at "References."

Also see CLOGGED DRAIN DIAGNOSIS & REPAIR and see Backups and Clogged Drains diagnosing septic backups and septic system failures versus clogged drains.

The first signs of a main building drain clog or breakage & leak problem

How to diagnose slow drains & toilet backups: The first signs of a drain problem was the report by our tenant that the toilet was slow to flush in the home.

Is the slow drain problem at a fixture, the whole building, or main drain? Following our own advice on diagnosing clogged drains and how to distinguish a clogged drain from a failed septic system (online at Diagnosing Clogged Drains & Septic System Backups we asked if all the drains in the home were slow or just the toilet. The answer: all of the drains were slow.

The toilet would show the most dramatic blockage because it sends a large sudden discharge volume of water and waste into the sewer line. We flushed the toilet and watched the water rise right up to the bowl brim. (If the toilet had begun to overflow we'd have reached inside the tank to manually close the tank flapper valve to stop the flush.)

Though not optimistic that it would make any difference, we tried plunging the toilet aggressively with a manual toilet plunger. It didn't help. Plunging the toilet made no difference. We already suspected a main drain or system problem (all drains were slow). So we needed a plumber to help with further diagnosis of the drain blockage. [Continue this article using the links shown below.]

The details of this sewer line replacement article are divided as shown just below:

SEWER LINE REPLACEMENT
  Diagnosing a Blocked Drain
  When to Call a Plumber
  How to Locate the Main Building Drain
  How to Use a Power Snake on Building Drains
  How to Find Distance to Drain Blockage
  Determining Need for Replacement
  Replacing the Sewer Line, Step by Step
  Making Other Septic Repairs
  Installing the new sewer line
  Bedding the sewer line in Sand
  Final Backfill of the Sewer Line Trench
  Documenting Buried Components
  Final seeding and soil restoration
  Sewer or Septic Line Installation at Steep Sites

...

Frequently Asked Questions (FAQs)

...
