When to call a plumber: this article describes when, in diagnosing a blocked drain, you need to call a plumber. We present an actual case study, illustrated with photos of each step in the diagnosis and replacement of a blocked sewer pipe.Technical reviewers are welcome and are listed at "References." This is a chapter of Inspecting, Testing, & Maintaining Residential Septic Systems an online book on septic systems. Also see Backups and Clogged Drains diagnosing septic backups and septic system failures versus clogged drains.

Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.

When to call the plumber about a blocked building drain

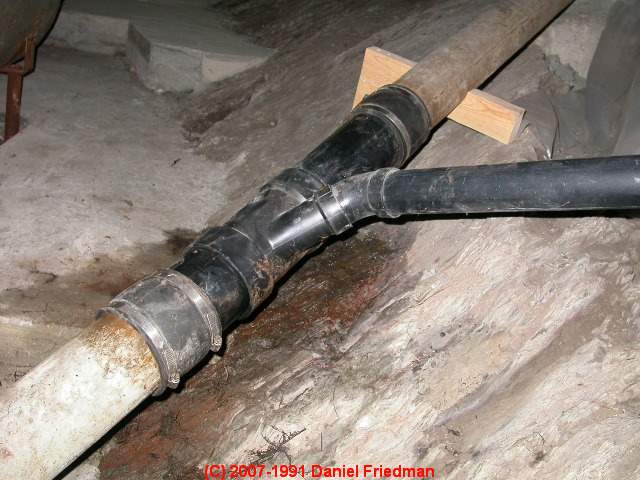

Photograph of the waste line where opened in the basement during drain blockage diagnosis and cleaning.

When plunging the toilet made no difference, and because we already suspected a main drain or system problem (all drains were slow), we knew we needed a plumber to help with further diagnosis of the drain blockage.

We suspected a blockage between the house and the septic tank because the septic tank and seepage pits were pretty new and unlikely to be blocked themselves.

The plumber obliged with the next two steps in diagnosing our drain problem: first he opened a convenient coupling in the waste line in the basement. You can see where we made this opening in the photo at left.

This would give an easy access to the drain line nearest to the toilet itself in case the blockage was nearby in the home.

Opening this connection was diagnostic for a second reason as water spilled out of the coupling as it was disassembled. This told us that the waste line was blocked sufficiently to hold a large volume of water backing all the way up into the home.

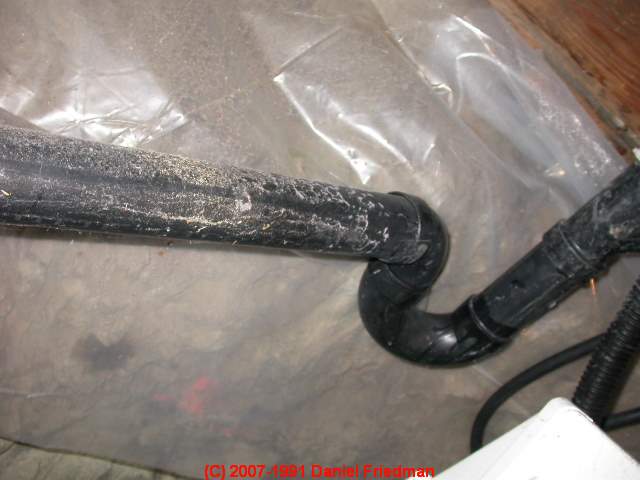

Photograph of backup drain spillage clues on a washer drain.

That diagnostic fact explained why we saw evidence of drain backups coming out of the open top of the clothes washer drain line where it spilled onto and disturbed dust atop the main waste line nearby. You can see evidence of drain overflow on the washer drain piping in the photo just above.

By simple visual inspection, following the pipes in the home, we could see two interesting facts:

  1. first a main drain and cleanout were located in the house rear foundation wall, and
  2. second, the toilet drain passed separately through the same rear foundation wall just a few feet away.

While we never bet big on where buried drain lines run, the geometry of the basement of this home made for a small, cramped space.

It seemed likely to us from the angle of the pipes and the ultimate destination of the piping (a septic tank downhill in the rear yard), that the two lines joined outside the home, near the house rear wall, using a wye connector. (That later proved to be the case.)

...


Frequently Asked Questions (FAQs)

...

Ask a Question or Search InspectApedia

Use the search box below to ask a question or to search the InspectApedia.com website.

Ask a Question or Enter Search Terms in the InspectApedia search box just below.

Technical Reviewers & References

Related Topics, found near the top of this page suggest articles closely related to this one.

  • Thanks to Thomas Gleason, excavators, Poughkeepsie, NY 845-454-3730, for the excavating work at the project photo documented here in September 2006
  • Thanks to Cleveland Plumbing, the prime plumbing contractor, Staatsburgh, NY 845-485-7700 for the plumbing work and drain clog diagnosis work documented here in September 2006
