Testing Toilet Paper for Septic System Breakdown

At TOILET TISSUE CHOICES we explained that in a conventional septic system using a tank and drainfield, ordinary toilet tissue does not harm the septic system. The toilet tissue remains in the septic tank, kept from flowing into the drainfield by septic tank baffles, and eventually toilet tissue breaks down in the septic tank and is not a solid bulk problem at normal levels of usage. To see just what actually happens to toilet paper in a septic tank produces photographs that some readers may not wish to examine closely, so in our forensic laboratory we made the simple toilet paper test illustrated here. One square of Rite-Aid® low-cost bathroom tissue was inserted into a quartz-glass test jar containing approximately 100 ml of tap water (photo at left).

We capped and shook the jar of water and toilet paper for approximately 30 seconds (photo at left). This agitation is more violent than what happens in a septic tank, but there too the incoming and out flowing sewage, combined in some systems with bacterial action and mechanical aeration, produces agitation of the sewage in the tank, including toilet tissue. You can see that very quickly the toilet tissue separated into a large number of very small, fine paper fragments suspended in the water. Still, we would not want even these small fragments to flow out of the septic tank into the drainfield, as soil clogging would follow, reducing the drainfield life. The job of septic tank baffles is precisely that of keeping floating scum and solids in the septic tank.

But what keeps these small particles of toilet paper (or other waste) in the septic tank if they are agitated into and mixed with septic liquid effluent that will indeed flow out through the septic tank outlet baffle and into the drainfield? Time is the answer, or in septic-speak, settlement time. During periods of inactivity mechanical agitation of sewage in the septic tank is reduced, allowing solids to either settle out into the sludge at septic tank bottom, or coagulate in the floating scum layer at the top of the septic tank. You can see in this photo (left) of our toilet paper test that after just 1/2 a minute the toilet paper fragments have already settled out and begun to collect on the bottom of our test jar. See EFFLUENT RETENTION TIME for details about septic tank settlement time. Further septic tank agitation during use may re-mix these toilet tissue fragments, causing them to break into still smaller fragments that again will settle out of the liquid, moving towards the septic tank bottom. Eventually the cycle of agitation and settling will virtually dissolve the toilet tissue to very small microscopic paper fibers that may be digested further by fungal or bacterial action in the septic tank or drainfield. Our toilet tissue test shown here was performed in simple tap water, without the benefit of septic tank microorganisms that would be expected to further break down bath tissue into ever smaller, septic-tank-digestible, fragments. That is why when the septic tank is opened for pumping and cleaning (see SEPTIC TANK PUMPING SCHEDULE), only the most recently-used toilet tissue is going to be found visible in the septic tank.

We will keep this test in our laboratory and will provide here further updates and photos on what happens to toilet paper in plain tap water.

Testing RV-Type Toilet Paper Designed for Chemical Toilets

In February 2010 we began a parallel study of RV type toilet paper (Coleman® brand) in tap water to watch for the rate of fiber breakdown.

Keep in mind that this version of toilet paper breakdown testing has (for now) excluded

• The effects on toilet tissue of bacteria or fungi found in the septic tank
• The effects on toilet tissue in the septic tank as it is agitated whenever new wastewater enters the tank
• The effects on toilet tissue of agitation in the septic tank caused by aerobic or other wastewater treatment processes that also agitate and oxygenate waste in the treatment tank
• The possible effects on toilet tissue breakdown of other chemicals or gases found in the septic tank
• The anticipated effects on toilet tissue breakdown in the wastewater holding tank when exposed to the manufacturer's recommended dose of chemical toilet additive used in portable toilets, or in boat and camper RV type sewage holding tanks.

But our lab photo (above) shows even without microscopic examination that by no means does this toilet tissue simply dissolve when it is placed in water.

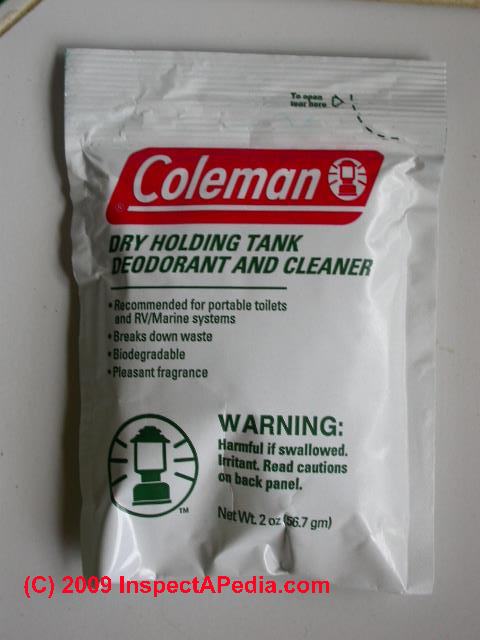

Be Sure You are Using the Proper Treatment Chemical for RV Tanks, Chemical Toilets, or Graywater Holding Tanks

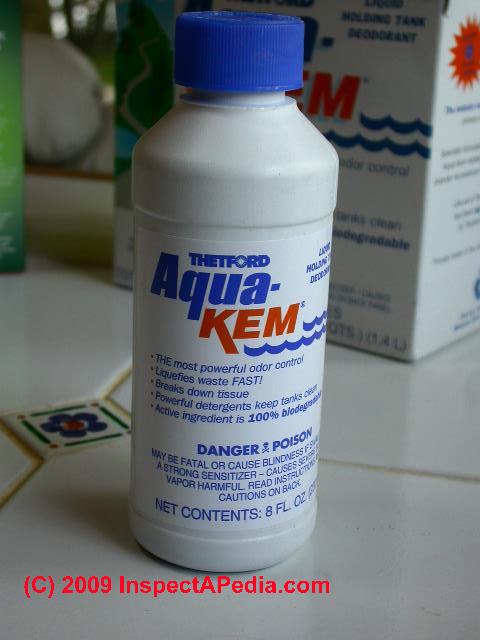

Chemicals intended as deodorants for chemical toilets, RV and marine sewage holding tanks, and similar equipment are produced by several companies including Coleman(see below) and Thetford's (Aqua-Kem®). As Coleman® points out right on their Dry Holding Tank Deodorant and Cleaner, that product is intended for use only in portable toilets and RV/Marine toilet systems.

In sum, this is a deodorant and sewage stabilizer intended for portable toilets (chemical toilets) and RV sewage holding tanks where it is intended for brief (5-day) holding periods. Longer holding periods for sewage in these systems, or holding at higher temperatures may require a higher dose of the product.

The company's product labeling indicates that this substance

• will break down waste (presumably sewage) in the tank
• is biodegradable (presumably harmless to the environment when used as directed)
• provides a pleasant fragrance
• contains paraformaldehyde and thus could be poisonous to children - "keep this product away from children" (and presumably pets or other animals) and don't get the treatment chemical or its liquid mixture in your eyes or on your skin.
• "contains a chemical known to the state of California to cause cancer. Formaldehyde-free product is also available."

For graywater holding tanks in RVs and marine systems, Coleman® indicates that a separate product, Coleman® liquid deodorant and cleaner, is recommended in stead. See How to Use & Maintain a Chemical Toilet.

For more about chemical toilets, RV toilets, and toilet alternatives, see:

TOILETS, INSPECT, INSTALL, REPAIR
TOILET ALTERNATIVES
  General Categories of Waterless
  Camping & Emergency Toilets
  Chemical Toilets
    How to Use & Maintain a Chemical Toilet
    Dump into Septic Tank?
  Composting Toilets
  Disabled or Elderly-Use Toilets
  Greywater Septic Systems
  SEPTIC SYSTEM FLOOD REPAIR
  Incinerator Toilet Systems

See WASTEWATER TREATMENT BASICS for a simple explanation of how septic systems work.

Frequently Asked Questions (FAQs)

...

Ask a Question or Search InspectApedia

Questions & answers or comments about choosing toilet paper for use in home septic systems, chemical toilets, RVs, etc.

Technical Reviewers & References
