FAILURE SPOTS - Where Septic System Trouble is Likely to Show Up
Understanding the Site Can Point to Areas of Risk of Septic System Failure
Arlene Puentes has pointed out that a septic inspection for failure spots starts with an examination of the whole building site, considering its size, terrain, neighbors, rocks, streams, etc.
Based on property size alone, a very tiny building site should raise an alarm about what septic components could possibly fit and work in the available space. Add considerations of property age and soil conditions and the septic system story may become yet more clear.
Puentes reports inspecting a property with a tiny lot, a deck built over the entire back yard, and not much space for a septic tank and drainfield. Starting a normal septic loading and dye test (septic dye placed into the system through a toilet) she soon found water, but not dyed effluent, running out from under the deck.
Placing some dye tablets into a bathtub drain she discovered that all building graywater was directed not into the septic tank but onto the ground surface under the deck. Puentes continued to test the septic tank and drainfield by simply forcing the building toilet to run continuously to place water into that system. In minutes a sewer odor dominated the deck area.

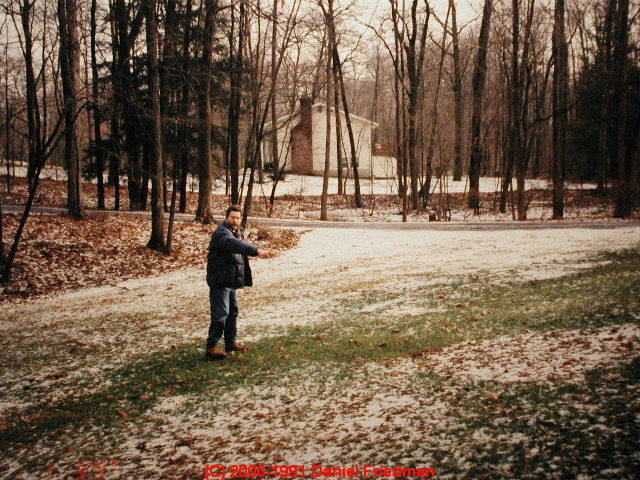

Signs of Trouble in the Septic Leach Field or Drainfield Area: Look in the area where you think the leach field is or is most likely to be. Look over the edges of mound systems, steep banks, and nearby culverts.
In the photo shown here, where the most-likely leach field location was
on the flat filled area above the landscaped bank shown, we were concerned about effluent breakout under the dense shrubs (where it would be hard to spot).
But we suspected (age, size of fields, etc) that

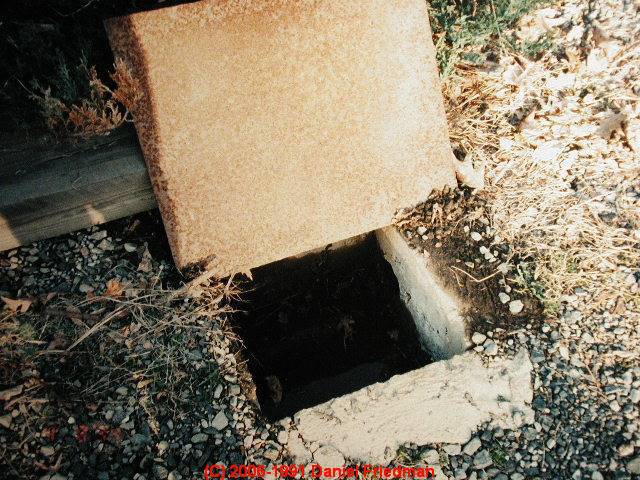

septic problems might be present. In what was reported to be a drain system installed to remove water from the driveway a simple lift of the
driveway drain cover on a concrete box found at the bottom of the bank and edge of the drive, you can just see this component at the lower right of the photo by the bush in the larger version of the photo above,
showed our septic dye running happily along. The "driveway drain" had actually been installed to carry effluent from the failed leach field across the drive to a nearby storm drain.
Mound septic system failures: Look over the edges of mound systems, banks, and nearby hills, slopes, or culverts. In this photo our client is pointing to a mound system which
was installed across a natural drainage area.
Surface runoff water from nearby properties, and originally this property, used to run along a natural drainage pathway between the road and the lots. When the builder placed this mound
system in the front yard he set it atop that drainage pathway - which means that underground water was running a foot or less below the level of the leach field trenches.
The system delivered its effluent right into the
surface runoff and together they appeared as dyed effluent at the down slope end of the mound.
Common but illegal effluent discharge pipes: Some "repairs" to a failed septic system are made by simply running a hidden pipe to
a nearby pond, stream, or public storm drain. If there is a nearby common improper pipe target or an unexplained pipe sticking out of a bank, have someone watch this area from the moment dye is placed in the system since if there is a direct
drain carrying effluent to such an improper (and illegal) destination, the dyed effluent may pass by quickly.
Streams, ponds, storm drains: These are common illegal septic effluent discharge targets, especially at sites with limited space, remote country properties, wet areas, and old properties.
Look at near by streams, ponds, wet areas that were present before the test. Warning: If you're looking in a nearby stream or storm drain, watch
or have someone watch this area from the moment dye is placed in the system.
Some "repairs" to a failed septic system are made by simply running a hidden pipe to
a nearby pond, stream, or public storm drain. If there is a free-running pipe carrying effluent to an illegal destination it may flow so easily and quickly that your dye may pass by in just a few minutes, so watch suspect areas closely early in the test as well as throughout.
Examine low areas near the septic drainfield, soggy areas, areas of dense or lush vegetation, edges of mound systems, and any nearby pond, stream, storm drain, or other surface drainage systems for signs of leakage or dye. Leaf and brush piles or grass clippings are often piled atop "trouble spots" where there has been a history of septic problems and breakout.
If the ground surface around the septic system is frozen solid at the time of a septic test (which is not usually the case over an in use drain field, the system is stressed in a different
manner, as the leach field does not have the option to relieve its failed absorption area by sending effluent to the surface.
In this condition we have produced backups in the building or at the septic tank during
the loading and dye test, so be sure to watch lower floor drains for backups if your test water is being run at upper floors of a building.
(Warn clients about the help but also the hindrance provided by snow cover in this regard.)
Look more than once: Do this visual check before starting the test, during the test, after the test, and up to five days after the site inspection (an added service or an admonition to
the client) since it is possible in odd cases for effluent to appear on a property days after the initial test. Fortunately, in cases of a failed or marginal system this procedure often shows breakout in 20-30 minutes.
