This document page describes where you will be most likely to find septic dye outside when conducting a septic loading and dye test - if the system is failing, here's where you're likely to see the dyed effluent appearing. A visual inspection of these locations before and after a septic dye test is performed can give key information about the condition of the septic system.
You should look everywhere on and around a site being
tested but here are the most-likely locations of dyed effluent or un-dyed effluent appearance at a property with a failing septic system.
These pages are part of our SEPTIC DYE TEST PROCEDURE for testing septic system function. Technical review by industry experts has been performed and is ongoing - reviewers are listed at References. Comments and suggestions for content are welcome. Use of this information at other websites is prohibited; reproduction in electronic or printed form is prohibited.
SPOTTING SEPTIC DYE TEST BREAKOUTS - Where Will You Most Probably Find Dyed Septic Effluent Outside
A septic effluent "breakout" is the visible movement of septic effluent to the surface of a property. Effluent may appear as an area of wet soil or as an actual puddle of liquid on the ground surface. It may also appear as dyed effluent flowing into a stream, lake, or other waterway.
Septic effluent appearing on the surface of a property or in nearby ponds or streams, is incontrovertible evidence of a failure in the septic system.
Breakouts of septic effluent may occur during normal system usage when the absorption bed has failed, when the system has been overloaded, or during a septic loading and dye test.
Dyed Septic effluent breaking to the surface may be pale red or green depending on the dye color used. Whether a septic loading and dye test is performed with or without tracer dye, effluent may appear
under various circumstances. For example, if the septic system has been pre-loaded with bleach, septic dye may not appear in the effluent.
This occurs if someone has shocked the well or perhaps attempted to
sabotage a septic test. It would also occur if the inspector attempted to use septic dye on a septic treatment system which injects chlorine into discharged effluent.
Before a system is tested using
a loading and dye procedure, the inspector should attempt to determine the type of septic system installed. In very dilute conditions septic dye can also be detected using a "black light" (UV) if you inspect in dark or low
light conditions and use a portable light source. (I have never seen anyone take this step.
Look for Effluent or Dyed Effluent Breakout before, during, and after the septic loading and dye test. In the photo shown here, green septic dye is quite visible in this wet area among leaves.

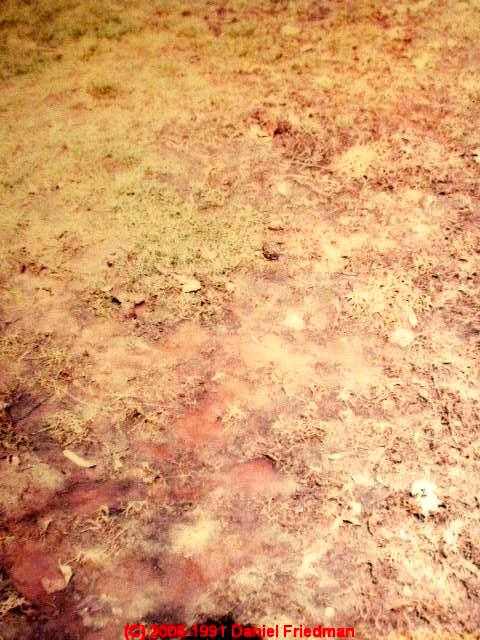

This photo shows red septic dye appearing in a worn area of a grassy yard. More dramatic red dye appearance was shown in the basement walkout septic dye photo at the top of this page.
If there is snow cover, walk a test grid pattern around the inspection area, scuffing to the ground surface. If there is dyed effluent breakout your scuffing in the snow will kick up green or red snow from the underside of the snow layer.
If there is frozen snow cover and the ground surface is not accessible the loading and dye test effectiveness is reduced but not eliminated.
We have produced wet areas, sags in snow cover, and even stained snow and ice with this procedure.
Here is another photo of septic dye showing up in snow-cover at a property, demonstrating that dye breakout and septic failure can often be demonstrated even in winter weather.

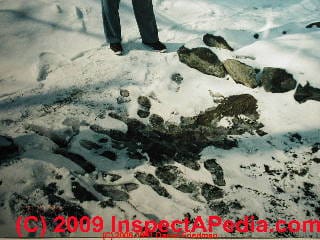

Non-dyed effluent may also appear during a septic loading and dye test so be alert for any increase in the size of previously-found wet areas or for the production of new wet areas or puddles or odors.
Non-dyed septic effluent may appear due to dilution, to the presence of bleach in the system, or by extended soil filtration combined with dilution of pre-existing water in the leaching area.
Watch Out: Any probing of wet or suspect areas should be performed carefully to avoid any charge of damaging piping. Probing can be useful in a suspect area, but since the exact location, depth, design of buried components is unknown, this is not a reliable comprehensive inspection method.
Avoid using heavy steel wrecking bars or similar probing tools which can damage septic tank top or other components.
