This article describes tools and instruments used to measure indoor humidity, relative humidity, and temperature - also giving the dew point. We discuss choices and accuracy of equipment used to measure indoor humidity level as a step in avoiding indoor condensation trouble, mold and other
indoor pathogen growth in buildings. This article answers the question "How do I maintain to avoid mold and indoor air quality issues?"
We also discuss where and how to measure indoor humidity, what indoor humidity targets to set, and we explain
relative humidity, dew point, and moisture condensation in and on building materials.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Choices of Instruments to Measure Temperature and Relative Humidity Indoors - Hygrometers
When you buy an instrument to measure indoor humidity, you must either buy one which reads the result in relative humidity or you'll have to do some calculations to factor in temperature. The old, amusing, but very
accurate sling psychrometer made an "end run" around the calculation problem by swinging a wet bulb thermometer
through the air, literally slinging it around in a circle at the end of a string. This motion
caused the water on the bulb to evaporate. The instrument then measured the
temperature drop from evaporation and enabled reading of the relative humidity.
Portable hand-held hygrometers or thermo-hygrometers are widely available, accurate to +/- 2.5%, some more accurate to +/- 0.5%, and are used by many home inspectors, environmental inspectors, hygienists, as well as industrial specialists.
Manufacturers of portable hygrometers include the following:
- Autotronic Enterprise Co., Ltd.,
- BB Instruments,
- Chauvin Arnoux,
- Chino Instruments,
- Delta OHM,
- EE Electronik,
- General Electric Corporation,
- Kimo,
- Mitchell Instruments,
- Ro-Tronic Instruments,
- Shincluster Electronics Co., Ltd.,
- Tekhne,
- Tecpel Co. Ltd.,
- Testo,
- TMI,
- Vaisala.

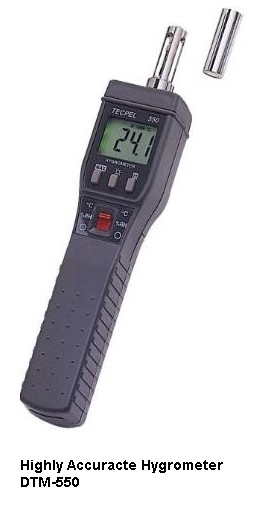

Shown (left) is the Tecpel model DTM 550 hand-held thermo-hygrometer accurate to +/- 0.5%
|
Modern electronic instruments which read
relative humidity are available from many suppliers and read out immediately in relative humidity, or "RH".
We have found that the less costly instruments, perhaps in the $40. to $100 range, are not precise "lab-grade"
instruments, but they'll generally be within 1-3 percentage points of one another - accurate enough for our purposes,
particularly if the instrument is consistent in its behavior.
Since these instruments have to know the
temperature as well as the humidity in order to calculate the relative humidity of the
air, they'll usually give the temperature reading as a bonus along with the RH reading.

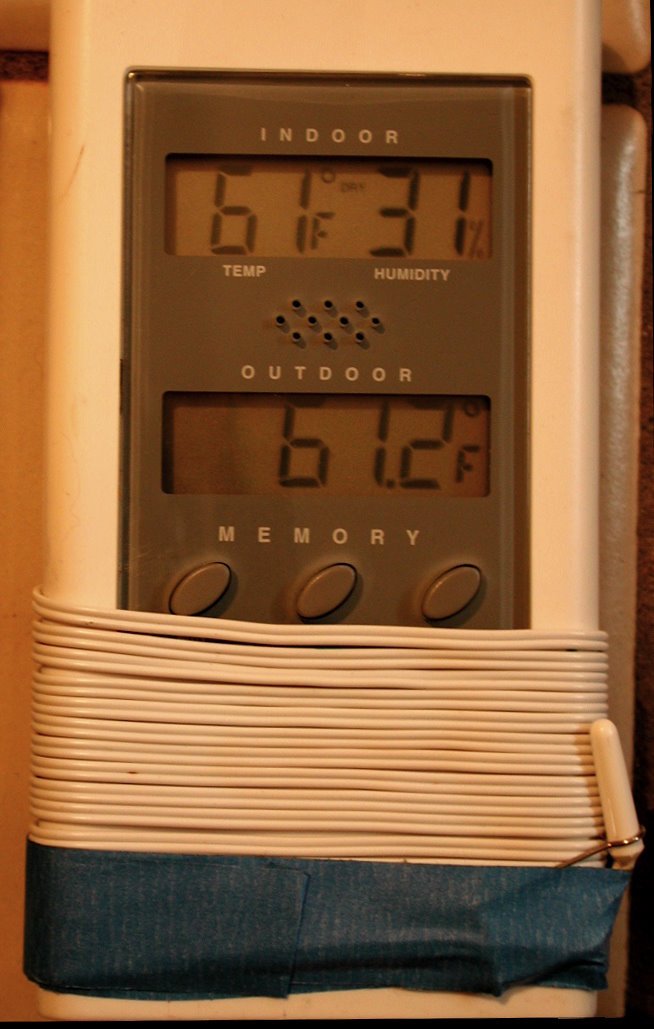

At left we show a low cost Radio Shack™ indoor-outdoor temperature and humidity monitor.
Readers should see DEHUMIDIFICATION PROBLEMS and MOISTURE PROBLEMS: CAUSE & CURE and also DEW POINT TABLE - CONDENSATION POINT GUIDE for an explanation of dew points and indoor humidity in buildings. HUMIDITY LEVEL TARGET explains the proper indoor humidity levels we should be trying to achieve. If you need to measure indoor humidity levels, see Tools for Measuring Humidity. If high indoor humidity is causing mold contamination, also see HUMIDITY CONTROL TO PREVENT MOLD.
Also see WATER ENTRY in buildings where we describe the cause and prevention of water leakage into buildings. ROT, TIMBER FRAME describes severe damage due to indoor moisture, insulation, and vapor barrier defects. INDOOR AIR QUALITY IMPROVEMENT GUIDE includes details about whole house ventilation systems.
Variations in Indoor Relative Humidity by Building Area and Surface Type
The relative humidity, or "RH" will vary significantly in a building at a given moment, depending
on where you make your observations.
Here are some example RH measurements from
a recent investigation at a 1970's wood frame two story home in generally good condition, after an extensive
mold remediation and dryout project, where the owner had been running two dehumidifiers in the basement, and
where there were no building leaks:
- RH 48% - Outdoors
- RH 45% - Indoors, main floor kitchen, center of room, 5 ft. from floor
- RH 49% - Indoors, basement, center of single large area, 5 ft. from floor
- RH 57% - Indoors, basement, 1" from rear wall, 3/4" from floor
- RH 49% - Indoors, basement, at intake side of the dehumidifier, with the machine operating
- RH 35% - Indoors, basement, at the outlet side of the dehumidifier, with the machine operating
Notice, with no surprise, that the RH is higher close to the (cool) masonry surface? This explains our reasoning in suggesting a fairly low basement RH target for buildings if we're going to measure the RH
in the center of the room.
Some dehumidifiers have an RH meter built right into the machine, so it will
tell you what RH level it's seeing in its incoming air. But for operating efficiency you'll often run the machine
in the center of the room.
The target humidity for a building, if measured at room center, needs to be low enough to avoid
condensation out on cool surfaces at the room perimeter or floor.
MEASURING Indoor HUMIDITY - How do you measure indoor humidity and relative indoor humidity?
Relative Humidity vs. Absolute Humidity in buildings
A variety of instruments can measure the amount of moisture in air, which we call "humidity." For example an inexpensive
indoor "weather station" often includes a "humidity" gauge along with a barometer and thermometer. But just knowing
the level of moisture in air (absolute humidity) is not enough. Usually, the humidity targets
we use in these articles, and in academic
or scientific texts are numbers expressed as relative humidity which takes into account not only the absolute
water level in the air, but also the air temperature.
Relative humidity, by taking into account both the absolute humidity in the air and the temperature of the air,
is telling you the humidity level as a function of the maximum amount of water that the air is capable of
containing at a given temperature.
If we're trying to control mold and other indoor pathogens for which water is a gating
factor, it's relative humidity that is important. Why? Because water condenses out of air onto a
building surface (and thus supports mold or other indoor pathogens) only when the air at that surface contains
more water than it can hold at that temperature.
When warm, moist air contacts a cool surface, your basement drywall
near the floor, for example, the air touching that surface may cool and give up some of its moisture to condense
on the surface.
See HUMIDITY LEVEL TARGET and also DEW POINT CALCULATION for WALLS and DEW POINT TABLE - CONDENSATION POINT GUIDE for details about indoor humidity, relative humidity, and the dew point in buildings.
Watch out:
We recommend use of dehumidifiers and
humidity instruments or humidity transmitters to monitor your building. But no dehumidification system will be up to the task of preventing mold if a building has serious leaks, flooding, or water entry.
No dehumidifier, no "air cleaner," no "ozone generator," nor other magic machine, spray, or air treatment will correct a mold problem
in a building if there is a significant problem reservoir.
For that case, what's needed is to find the mold problem, remove it,
and correct its cause. And as a last warning, there are about 1.5 million mold species - some of them may be able to grow in very
dry or very wet or other inhospitable conditions.
