 Montgomery Ward Vinyl-Asbestos Floor Tiles Identification Photo Guide
|
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
Montgomery Ward Asbestos Floor Tiles: here we provide a photo guide to Wards or Montgomery Ward asphalt-asbestos flooring &Wards or Montgomery Ward vinyl asbestos floor tile identification photographs, a list of product names, styles, colors, and vinyl-asbestos floor patterns, and colors for asbestos-containing floor tile products - flooring materials that are reported to or have been confirmed to contain asbestos in asbestos fiber or asbestos powder-filler form.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Montgomery Ward Asbestos-Containing Floor Tiles, Photo Guide
Our Montgomery Ward floor tile photos below include images of the original packaging and information it provided about this product.
Above: photographs of Montgomery Ward Style-House Vinyl-Asbestos floor tiles and floor tile packaging, ca 1965
Asbestos is safe and legal to remain in homes or public buildings as long as the asbestos
materials are in good condition and the asbestos can not be released into the air.
For a detailed photo guide to individual vinyl-asbestos floor tile patterns, brands, sizes, and years of manufacture, see ASBESTOS FLOOR TILE PHOTO ID GUIDE.
At left is our photo of an asbestos-containing floor tile sold by Montgomery Wards®.
In additional photographs below we show the examination of this "asbestos floor tile in the lab" as well as photos of the original labeling on the package in which these tiles were distributed.
We discuss the history of vinyl-asbestos floor tiles in our Age of House articles at Flooring Materials. We discuss the inspection and diagnosis of various flooring defects, including vinyl asbestos tiles, at FLOOR TYPES & DEFECTS.
According to Rosato, even when vinyl or other synthetic organic resins were used as the binder to produce light colored floor tiles, asbestos fibers continued to be the main ingredient in these floor tile products, and may be present at levels as much as 70% by weight.
|
Above: photographs of Montgomery Ward Style-House Vinyl-Asbestos floor tiles and floor tile packaging, ca 1965.
Our photograph of a similar floor tile that may also be a Montgomery Ward vinyl-asbestos floor tile (left) was provided by reader Marc Daniels. Mr. Daniels reports (4/28/11) that lab tests of this floor tile did not find evidence of asbestos.
Reader comments & questions are invited. CONTACT us.
Additional photographs of Montgomery Wards asbestos containing floor tiles are also described and photographs of these (and other brands of floor tiles and sheet flooring containing asbestos) are provided at ASBESTOS FLOOR TILE IDENTIFICATION |
Magnified View of Edge of Vinyl-Asbestos Floor Tiles
This stereo-microscopic view of the edge of this asbestos-floor tile shows the combination of binder and other silicate materials.
At ASBESTOS FLOOR TILE LAB PROCEDURES we describe preparing a lab-test sample of this Montgomery Ward floor tile for microscopic examination by using procedures recommended by Walter McCrone, McCrone Research.
There you can see both asbestos fibers and very fine granular particles of asbestos filler material that make up much of the white "paste" you can make out in our floor tile edge photograph above.
|
Montgomery Wards asbestos containing floor tiles and are also described and additional identification photographs of these (and other brands of floor tiles and sheet flooring containing asbestos) are provided at ASBESTOS FLOOR TILE IDENTIFICATION.
For a detailed photo guide to all brands of vinyl-asbestos floor tile patterns, sizes, and years of manufacture, see ASBESTOS FLOOR TILE PHOTO ID GUIDE.
I

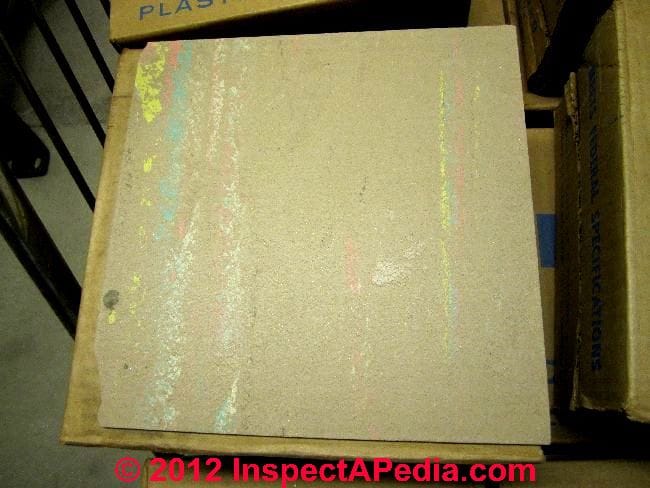

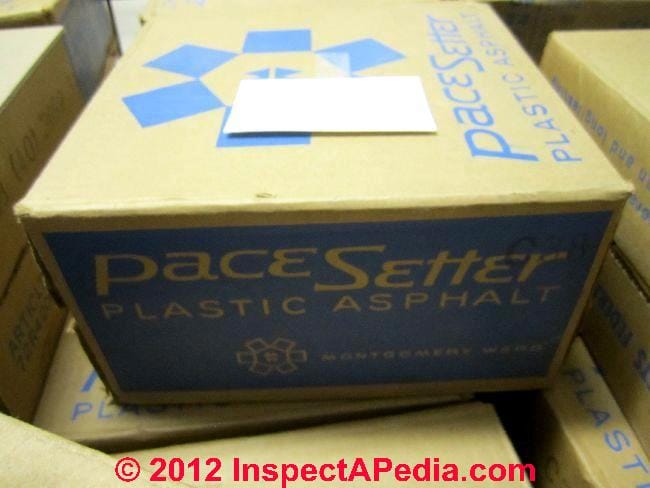

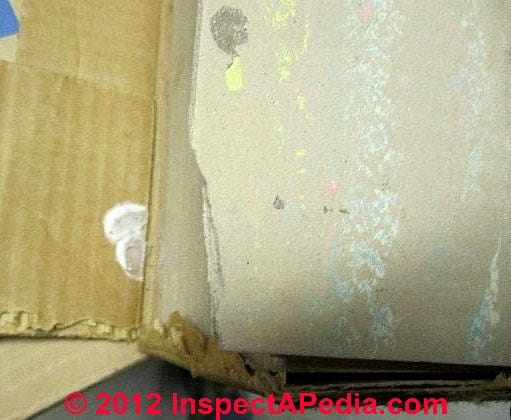

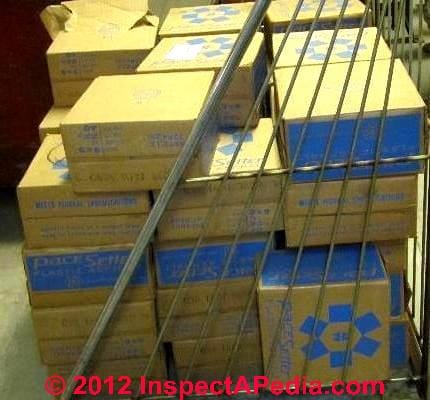

came across boxes of these Montgomery Wards floor tiles. The packaging does not
say VAT (Vinyl Asbestos Tile) but instead Plastic Asphalt. These are Mongomery Ward Pace Setter Series floor tiles. - Keith Daenzer 11/17/12
These look like 1/8" thick tiles; I can't tell from the photos but I'm guessing they're 12"x12" and based on age and labeling most likely are asbestos-containing. Many of the early vinyl based flooring products used the word "plastic" rather than vinyl - it was considered a modern space-age material. More details are pending - Ed.
(Additional Montgomery Ward vinyl asbestos tile floor covering photos wanted - CONTACT US)
How to Find Your Floor Tile or Sheet Flooring in this Flooring Reference Photo Guide

Asphalt asbestos and vinyl-asbestos floor tiles were produced in 9" x 9", 12" x 12", and even 18" x 18" as well as in decorative strips, and in thicknesses of 1/16", 3/32", and 1/8", also in 0.08 gauge. Some sheet flooring or resilient flooring also contained asbestos, as did floor tile mastics.
This photo guide to asphalt asbestos & vinyl asbestos floor tiles for each year shows at least one color photo of each floor tile style or pattern in an example color. A list below each group of photos includes the names of and links to additional photos for other colors of these styles.
Asbestos is safe and legal to remain in homes or public buildings as long as the asbestos
materials are in good condition and the asbestos can not be released into the air.
To identify a particular asphalt-asbestos or vinyl-asbestos floor tile pattern & color, start in the image group most likely to be the same age as your building.
If you don't find your floor tile or sheet flooring by looking forward from that that year, you should also look backwards in the earlier years as your specific flooring pattern & color may have first appeared in an earlier year. For other tile brands than Armstrong, see the brand name floor tile links included in this list.
If you can identify your floor tile collection name or model number, or if you recognize it in the extensive library of flooring color and pattern photographs provided in these pages, laboratory testing of the sample to screen the flooring for asbestos may be unnecessary. Our home page for asbestos-containing floor tiles is at ASBESTOS FLOOR TILE PHOTO ID GUIDE To send us photographs of possible asbestos-containing flooring that you are trying to identify, use the email address found at CONTACT. |
We have split this guide to Armstrong Asphalt Asbestos or Vinyl Asbestos Floor Tiles into the individual year range pages (dates of production) below in order to cut web page load time. If you prefer to see all of the reference photos in a single scrollable file, contact us and we can provide the full list in a single big and slow-loading file.
Many of the colors and patterns of asphalt-asbestos or vinyl-asbestos floor tiles were manufactured over many years and may appear in more than one of the floor tile photo collections listed by date range here.
For each year we list the names of the tile patterns sold during that year, we include representative color images of the floor tiles, and throughout the entire floor tile pattern & color history series we include each floor tile color & pattern of the floor tile in the first year that it appeared , and we include representative colors and patterns in other years.
Examples of floor tile packaging, labeling, and other information can be found throughout the flooring photo collections listed here.
Frequently Asked Questions (FAQs) about how to identify asbestos floor tile sold by Montgomery Wards

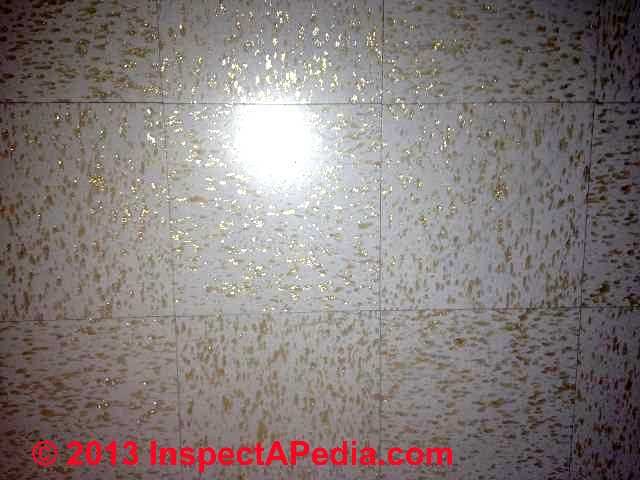

Question: can you identify this floor tile from a 1963 house?
 I have attached a photo of the tile in a 1963 built house in Las Vegas, NV. I looked through the tiles in your guide, but didn't see the exact same time - although there were a few that were perhaps in the same family. Can you tell me if you can identify these tiles?
They are in remarkably good shape and show no wear and tear, however, if we remodel this house we will most likely remove this tile and replace it with ceramic tile or cement flooring. - D.M. 2/25/2013 |
Reply:
D.M.
I can only GUESS but your flooring looks so much like the Montgomery Wards tiles shown in the article above that I've posted it here - perhaps other readers will also have comment.
If you take a look at ASBESTOS FLOORING HAZARD REDUCTION you'll see that you may not have to and may not want to remove presumed-asbestos-containing flooring.
...
Ask a Question or Search InspectApedia
Questions & answers or comments about how to identify Montgomery Ward floor tiles that contain asbestos.
Ask a Question or Enter Search Terms in the InspectApedia search box just below.
