Using Vacuum Cassettes or Spore Traps to Collect Mold or Particle Dust Samples from Building Insulation InspectAPedia® -
How to test building insulation for mold contamination
Guide to use of vacuum cassettes for mold screening
Find mold hidden in building insulation that looks clean
Photographs of mold contaminated fiberglass insulation
This article explains the advantages and shortcomings of using vacuum cassettes or spore traps to collect mold test samples (or other dust or particle samples) from building insulation where mold, insect, or other contamination is suspected.
InspectAPedia offers impartial, unbiased advice without conflicts of interest.
We will block advertisements which we discover or readers inform us are associated with bad business practices,
false-advertising, or junk science. Our contact info is at InspectAPedia.com/Contact.htm.

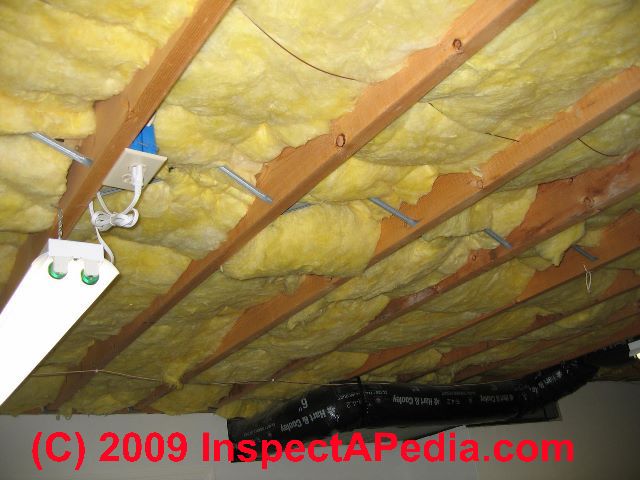

Our photo (page top) shows what looked like clean fiberglass insulation located over a basement that had been subject to chronic flooding and ultimately, mold contamination that was visible on other basement surfaces. Vacuum tests confirmed that the insulation contained high levels of Penicillium/Aspergillus mold spores and was acting as a mold reservoir in the building.
Usefulness of Vacuuming exposed Building Insulation for Mold Contamination
15th Annual North Carolina/South Carolina
Environmental Information Association Technical Conference
Myrtle Beach, SC
Daniel Friedman 23 September 2005, Updated 4/14/2009
At many investigations we have found a large hidden mold reservoir in
building insulation, particularly fiberglass insulation in attics under roof
leaks over drywall, and in crawl spaces which have been damp or wet. We have also
found very moldy fiberglass in basement ceilings after moldy surfaces and
debris have been removed (such insulation should have been removed during the
remediation).
Our photo (left) shows insulation that did not display visible mold but that our vacuum test found to be very mold-contaminated (see our lab photo below). (The dark stains on this fiberglass insulation were not mold but house dust deposited from air movement - see THERMAL TRACKING & THERMAL BRIDGING for details.)
Our method is to agitate the target insulation (simply poke it
with your flashlight or a ruler), followed by holding our vacuum cassette an
inch or two away from the insulation surface. This reliably picks up particles
from the insulation without overloading the sample with fiberglass. (A baseline
comparison sample collected in nearby building air before any such agitating
sampling is also needed.) This method has been remarkably successful in finding
and allowing the removal of several "mystery" problems in buildings where
severe mold-related complaints were heard.
Any of several types of vacuum cassettes are used to collect dust from a
surface. We use Air-o-Cel ™ cassettes and MCE filter cassettes. We am
experimenting with vacuum cassettes loaded with high-adhesive tape.
The
contents of the mold test vacuum cassette may be examined by light microscope or may be used for
preparation of cultures. One special (and costly) cassette method collects dual
samples permitting both direct examination and culturing.
Our lab photo (left) shows insulation that did not display visible mold to the naked eye when examined in place in the building (photo above) but that our vacuum test found to be very mold-contaminated.
This method may be
used for both qualitative and quantitative analysis, depending on collection
method details. It is best suited for sampling dust from surfaces and from soft
goods such as carpeting or upholstered furniture.
It's strength is its use in
examining multiple hard surfaces with relatively low levels of debris (avoiding
sample overload) or individual soft surfaces where tape may not collect
particles imbedded in the surface, and in collecting dust from multiple
locations in a single cassette as a building dust scan for mold.
Shortcomings of vacuuming insulation for mold
We love this method, but one must take care not to overload the sample.
If
insulation is not exposed for testing one needs to make a sufficiently large
opening to agitate and then vacuum the insulation - we use a 4" square opening
and take care to avoid vacuuming up simply a collection of drywall dust.
In this article series discuss the validity of nearly all of the popular mold testing methods currently in use, pointing out the strengths and weakness of each approach to mold sampling in the indoor environment, beginning with air sampling for airborne mold levels indoors. Because mold test validity and mold test accuracy are often confused, readers should also see ACCURACY OF VARIOUS MOLD TEST METHODS. People who need to conduct mold inspection and testing indoors should see MOLD TEST PROCEDURES and TECHNICAL & LAB PROCEDURES.
Our MOLD INFORMATION CENTER includes more broad discussions of the overall approach to building investigation, as do many expert references cited at that web. For a more
comprehensive collection information about mold test methods see INDOOR AIR QUALITY METHODS COMPARED.
For more on "mold classes" (Cosmetic mold vs. allergenic mold vs. toxic or pathogenic mold) see MOLD CLASSES, HAZARD LEVELS and more references such as a Mold Action Guide are at the end of this document.
