Asbestos in Good Condition, when to leave it alone
Photographs of asbestos in building products
InspectAPedia offers impartial, unbiased advice without conflicts of interest.
We will block advertisements which we discover or readers inform us are associated with bad business practices,
false-advertising, or junk science. Our contact info is at
InspectAPedia.com/Contact.htm.
This article illustrates asbestos insulating and other products which are in good condition and discusses what to do
about the asbestos material in that case.
This document assists building buyers, owners or inspectors who need to identify asbestos materials (or probable-asbestos) in buildings by simple
visual inspection. We provide photographs and descriptive text of asbestos insulation and other asbestos-containing products
to permit identification of definite, probable, or possible asbestos materials in buildings.
While an expert lab test using polarized light microscopy may be needed to identify the specific type of
asbestos fiber, or to identify the presence of asbestos in air or dust samples, many asbestos-containing building products
not only are obvious and easy to recognize, but since there were not other look-alike products that were not asbestos, a visual identification of this material can be virtually a certainty in many cases.
The ceiling tiles at left may contain asbestos. They are in good condition and are not subject to mechanical damage by the occupants of the building.
If these ceiling tiles are to be removed, the demolition could release high levels of asbestos fibers - appropriate asbestos removal procedures would be wise.
Also see Asbestos HVAC Ducts a field identification guide to
visual detection of asbestos in and on heating and cooling system ducts and flue vents. Also see Micro-Photographs of Dust from the World Trade Center collapse following the
9/11/01 attack. Links to U.S. government and other authoritative research and advice are included.

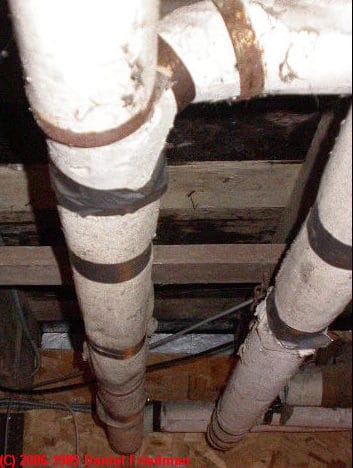

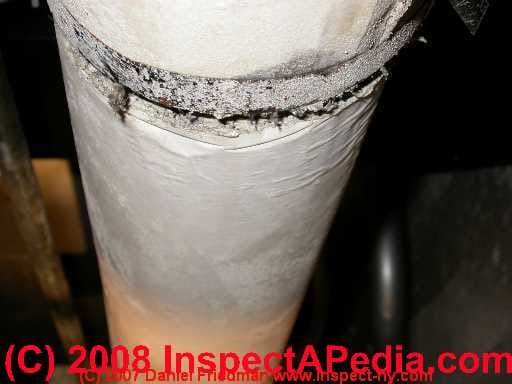

When asbestos pipe insulation is in good, un-damaged condition like this, and when it is found in an area not subject to mechanical damage,
current advice is to leave this material alone.
However where this material was used on heating or other plumbing pipes, there remains the possibility that
some of it will eventually have to be disturbed and removed when leaks occur and repairs to the piping are necessary.
Leaks in heating pipes should occur
less often than in other plumbing lines, so this risk may be pretty small.
Use of asbestos for pipe coverings has been banned in the U.S. since 1975.

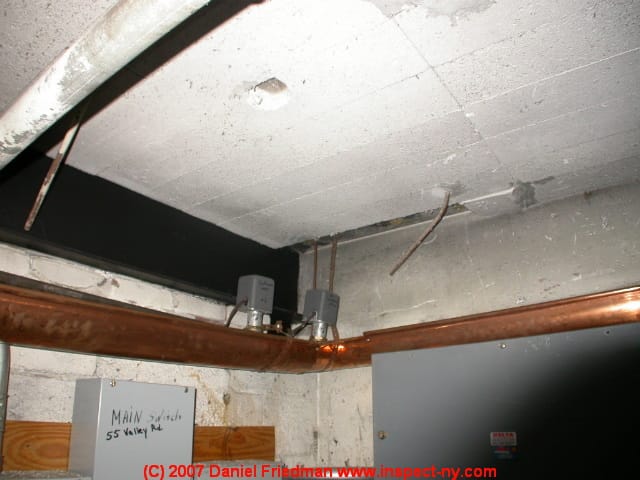

This ceiling fireproofing used in an office building basement storage area was readily identified as tremolite and was considered hazardous even though it was in good condition.
This product was quite friable, subject to being disturbed by ongoing work in the area, and needed professional asbestos removal.
Critique, contributions wanted: Contact Us to suggest corrections or additions to articles at this website, and if you wish, to receive online listing and credit as a contributor. Particular thanks are due to the many experts and also consumers who read and critique technical articles at InspectAPedia.com.
Additional technical contributors & reference sources for this article are listed below.
Use links just below or at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.
06/07: thanks for photographs of transite asbestos heating ducts, courtesy of Thomas Hauswirth, Managing Member of
Beacon Fine Home Inspections, LLC and (in 2007) Vice President, Connecticut Association of Home Inspectors
Ph. 860-526-3355 Fax 860-526-2942 beaconinspections@sbcglobal.net
