 Crawl Space Access
Codes, standards, methods when crawl space access is limited or none
- CRAWL SPACE ACCESS - what are the access opening requirements for crawl areas & what do we do if there is no safe crawl space access?
- Questions & answers about entering crawl spaces and similar tight building areas: what if there is no access or if access is unsafe?
- References
|
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
Access to crawl building crawl spaces: this article describes the accessibility requirements & codes the required size & location for crawl area openings in buildings, the standards & procedures for entering crawl spaces, and we explain how can we inspect a crawl area and building conditions when safe, ready access are not already provided.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
How to Get Into a Crawl Space That Has No Ready Access
Watch out: Before entering a crawl space to inspect its condition or to clean up the crawl space or make repairs in the crawl area.
At CRAWL SPACE SAFETY ADVICE we list a variety of reasons not to enter a crawl space. And even if you think the crawl space is not obviously dangerous, limited space or other risks often mean that you should not work alone and not enter the crawl area without assistance and aid standing by.
Ultimately home inspection associations and standards, even if they describe minimum crawl space opening sizes, also must allow that an inspector can and should refuse to enter a crawl area that s/he considers unsafe for any reason.
The decision not to enter the crawl area and the reasons should of course be documented and appropriate follow-up steps should be taken as well.
While some crawl areas under buildings are safe, roomy, dry, and easy to move around in, other crawl spaces can be really ugly or hard or even impossible to enter without making an access opening and wearing protective gear.
Building codes require that crawl spaces be made accessible.The 2012 IRC describes the minimum crawl space accessibility requirements as follows:
R408.4 Access.
Access shall be provided to all under-floor spaces. Access openings through the floor shall be a minimum of 18 inches by 24 inches (457 mm by 610 mm).
Openings through a perimeter wall shall be not less than 16 inches by 24 inches (407 mm by 610 mm). When any portion of the through-wall access is below grade, an areaway not less than 16 inches by 24 inches (407 mm by 610 mm) shall be provided.
The bottom of the areaway shall be below the threshold of the access opening. Through wall access openings shall not be located under a door to the residence. [4]
Photo at above left is of the author, Daniel Friedman, peering into an inaccessible crawl space while suffering from a broken leg. Photo courtesy of Arlene Puentes.
Entering a hard-to-access crawl space: if necessary, make an access opening and while there fix everything you can
At a home where there was no crawl space entry whatsoever, and where inspection was necessary, we pulled back carpeting, found the floor joists by noticing the nail pattern in the subfloor, cut a removable subfloor panel at the center of joists (so it would be easy to replace), and made our own crawl space entry door.

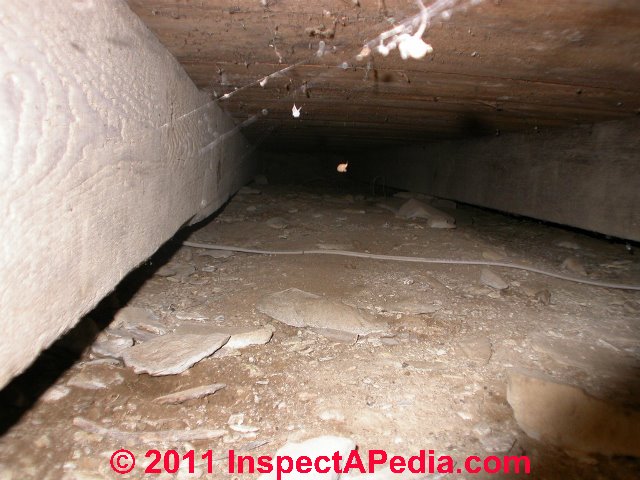

In a different building investigation, the crawl space shown in our photos (below) turned out to be clean and dry. But access to the crawl space very tight and like the home in our photo at left, the second building originally it had no entry opening whatsoever.
We needed to get in to the crawl area to inspect (and repair) floor framing support (shown in our photo at below left) as well as to understand house conditions.
We took advantage of a bathroom renovation project to make an opening through the flooring above.
An alternative crawl space entry could have been made from outside with a bit of digging and cutting an opening through the foundation wall. We left a removable panel to enter the crawl area. If an outside entry had been made through the foundation we'd have made sure that the entry itself didn't become a water entry pathway by protecting it from surface and roof water.
Once going to the trouble of making an access to get into the crawl space we don't waste the effort. We reinforced existing floor supports that had not been checked since the home was built in 1920 and we added a few improved posts ourselves (above left).

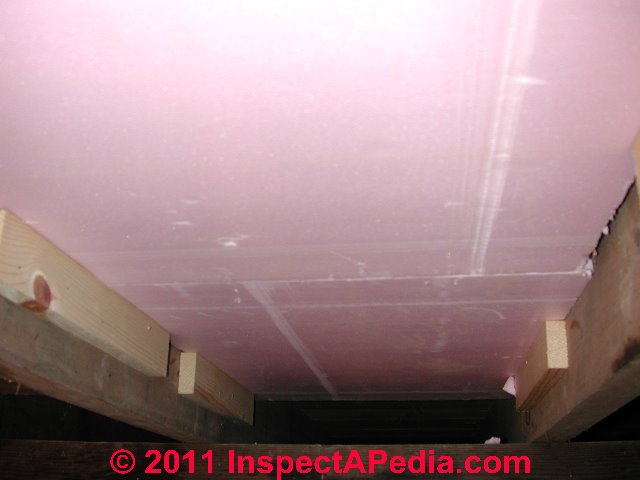

We then added insulation (above right) under the floors and even though this crawl area was dry, before leaving we put down 6-mil poly on the dirt, making crawling (slithering in this case) easier for the next person who would have to work in the area.
What to do if a crawl space is literally inaccessible
If a crawl area is literally inaccessible because there are only a few inches between the floor framing and the crawl space surface, no one can enter it.
If there are crawl space vents it may be possible to remove the vent screen to permit a partial view into the crawl space, but it's not easy.
Crawl space vent covers were typically installed and secured from inside the foundation wall during construction. I'd consider destroying the vent cover if necessary, replacing it from outside later.
For such areas we have made inspection openings through the floor above. If on inspection we find conditions that absolutely need repair such as toxic mold, sewage, rot, insect damage, then the floor will have to be removed to permit repairs.
What if there are no crawl space entry openings and no holes to even peek into the area?
Our pro-bono inspection of a church crawl space (you couldn't pay anyone enough to do this) began at the floor opening shown at above left. Our second photograph (above right) shows how little space there was between the floor joists and the soil below. This crawl space is impossible to enter.
Inaccessible Crawl Spaces: using secondary clues about building condition
When a crawl area is impossible to enter and when view is quite limited we have to rely on secondary clues of crawl space condition. Examples of such clues that are collected from above include:
Outside: drip lines below roof eaves indicating a history of gutter overflow and water spillage by the foundation - high risk of water entry, rot, insect damage.
Indoors: sagging floors, crunchy flooring (termite damage), odors, evidence of insects coming up through the floor, evidence of recent structural repairs, evidence of insect pest treatment;
When in the judgment of an experienced building diagnostician the accumulation of clues suggesting hidden trouble is sufficient, it becomes cost justified and appropriate to begin further invasive inspection by making test openings and where those inspections confirm trouble, more flooring will need to be removed.
Watch out: be sure to also read CRAWL SPACE SAFETY ADVICE
Frequently Asked Questions (FAQs) about crawl space accessibility requirements, codes, safety & suggestions
...
Ask a Question or Search InspectApedia
Questions & answers or comments about crawl space accessibility requirements, codes, safety & suggestions.
Ask a Question or Enter Search Terms in the InspectApedia search box just below.
