This article explains critical and poor construction details that led to a catastrophic residential deck collapse. Our page top photograph shows the results of a poorly-constructed deck that collapsed and fell eight feet to the ground, sending three people to the hospital. Luckily there were no serious injuries but children playing below the deck ran out as it collapse - otherwise they may have been killed. Also see DECK FLASHING LEAKS, ROT Case Study for an example of an older deck with rot and collapse due to improper construction and missing building flashing, and see Deck & Porch Construction for Safety for a comparison of good and bad deck or porch construction methods.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

Deck Collapse Case Demonstrates Poor Residential Deck Construction

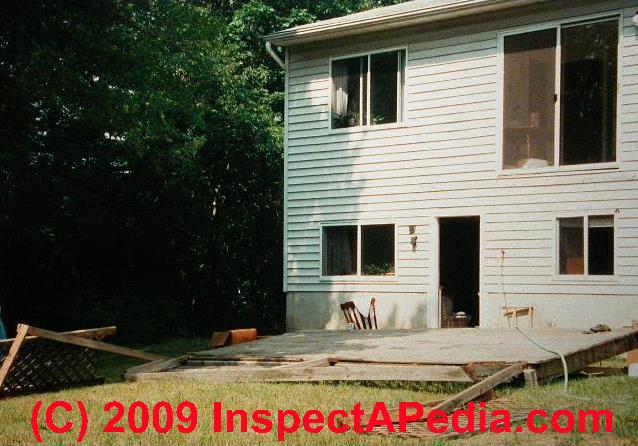

Our photograph at left shows the results of a poorly-constructed deck that collapsed and fell eight feet to the ground.

During a home inspection we found these unsafe structural details:

The deck ledger was simply nailed to the building wall over vinyl siding, using common nails; no bolts were used.
Some deck joists were secured to the deck ledger board using steel connectors (not joist hangers) and with roofing nails. Hammering a roofing nail home against a steel joist hanger cracks the thin nail head and risks connection failure. Roofing nails are not structural fasteners.
Other deck joists were "set" into steel joist hangers with no nails whatsoever.
The deck joists were not all nailed to the deck outer girder.
The deck girder was simply tacked to the top of 4"x4" wood posts with no structural connections.
The deck posts went into the ground to an un-known depth. If the deck posts were not buried to an adequate depth that detail added to the risk of deck collapse.

Deck collapse details (C) Daniel Friedman

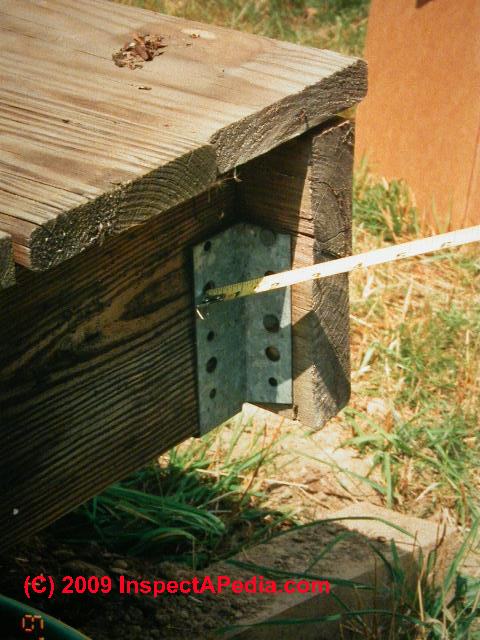

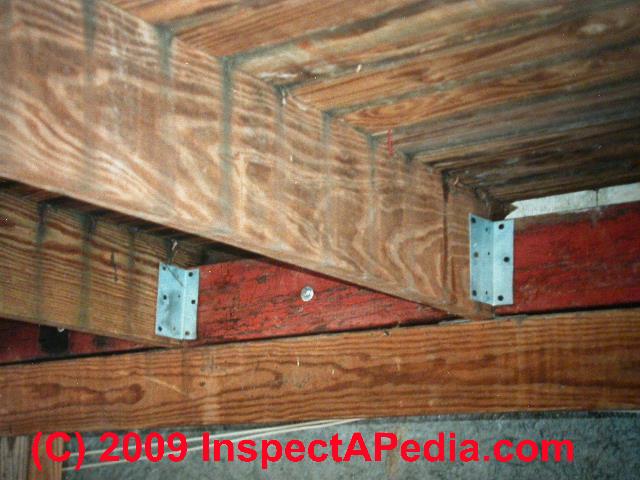

Our photos above show non-structural angle brackets used to connect deck joists to a bolted ledger at a different property (above left), and a steel joist hanger used to connect a deck joist with no nails whatsoever (above right).

Despite our strong warning to the home buyer to stay off of the deck and repair it before use, a statement that it was very dangerous, and that it should be repaired immediately, on moving into the home the new occupants celebrated with a deck party. Sipping a beer, a heavy guest stood at the outer deck railing and idly bumped his weight against the guardrail.

The deck detached from the building and fell to the ground, sending three people to the hospital. Luckily there were no serious injuries but children playing below the deck ran out as it collapse - otherwise they may have been killed.

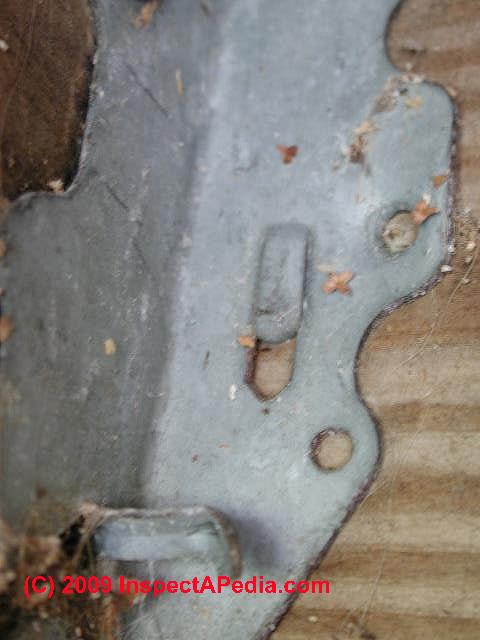

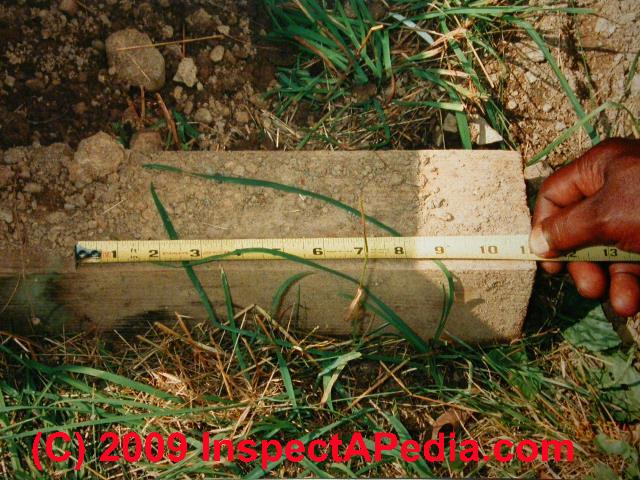

Our deck defect photos above are close ups of the collapsed deck. They show a questionable-application deck joist connector with roofing nails instead of structural fasteners (above left), and a deck post that extended only 11" inches into the soil (above right). Other deck posts were only 7" into the ground and none were anchored nor connected to piers.

Deck ledger nails exposed (C) Daniel Friedman

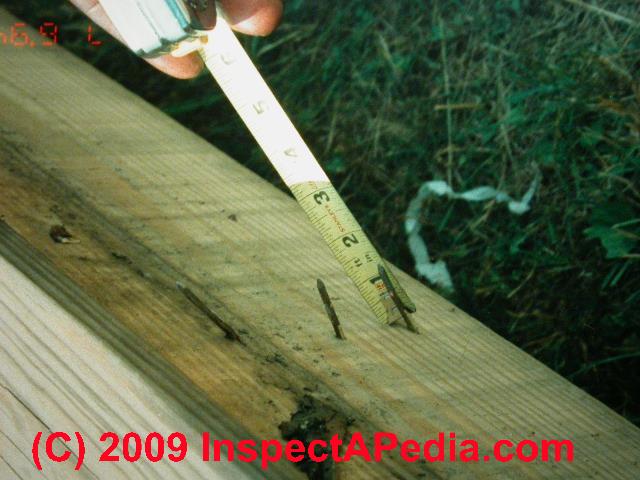

Our photo (at left) shows the common nails protruding from the inner face of the deck ledger board. These are the (inadequate) fasteners that pulled out of the house wall as the deck separated from the building and fell to the ground.

Despite multiple inadequate deck construction details and despite the deck having a "CO" issued by a local authority, our opinion was that had the deck ledger been bolted to the building this collapse may have been avoided.

Proper deck flashing at the building is also important to avoid both leaks into the structure and rot or weakening of this critical structural member that secures the deck against falling.

See Deck & Porch Construction for Safety for a comparison of good and bad deck or porch construction methods.

Also see Manual for the Inspection of Residential Wood Decks and Balconies for an excellent guide to deck construction inspection and deck safety.
