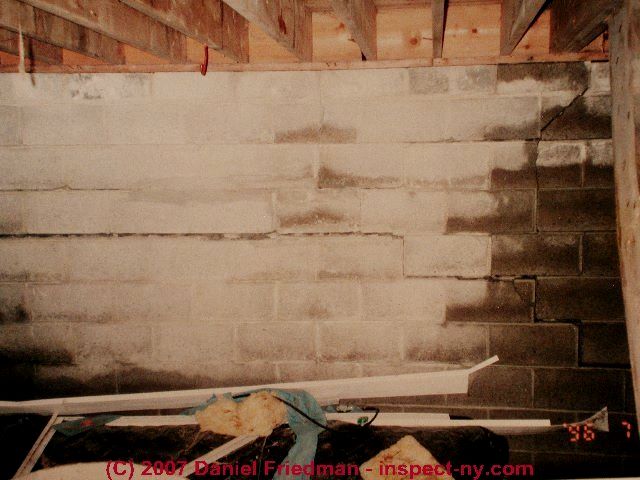

Photograph of a bowed concrete block foundation wall, probably from frost cracking. Drop a plumb line to measure total inwards bulging of this block foundation wall.How to Distiguish Foundation Bulging vs. Leaning


  • How to Distiguish Foundation Bulging vs. Leaning Movement by Type & Location of Cracks & Bends in Foundation Components
    • Different causes of foundation leaning, bulging, cracking
    • How to Evaluate and Diagnose Foundation Movement by Type & Location of Cracks, Bends, Leans, or Shift in Foundation Components
  • FOUNDATION BULGE or LEAN MEASUREMENTS - separate article
  • BULGED FOUNDATION REPAIR METHODS - separate article
  • Questions & answers about the difference between foundation bulging & foundation leaning: different causes, effects, risks, & repairs
  • References

Click to Show or Hide Related Topics

  • FOUNDATION DAMAGE & REPAIR GUIDE - home
  • BUCKLED FOUNDATIONS due to INSULATION?
  • BUILDING DAMAGE ASSESSMENT & REPAIR
  • EARTHQUAKE DAMAGED FOUNDATIONS
  • FLOOD DAMAGED FOUNDATIONS
  • FOUNDATION CONSTRUCTION TYPES
  • FOUNDATION CONTRACTORS, ENGINEERS
  • FOUNDATION CRACK EVALUATION
    • BULGE or LEAN MEASUREMENTS
    • CRACK MONITORING Methods
    • DIAGONAL FOUNDATION CRACKS
    • HORIZONTAL FOUNDATION CRACKS
    • SHRINKAGE vs EXPANSION vs SETTLEMENT
    • Sinkholes & Building Damage
    • Thermal Expansion Cracking of Brick
    • VERTICAL FOUNDATION CRACKS
  • FOUNDATION DAMAGE REPORTS
  • FOUNDATION DAMAGE SEVERITY
  • FOUNDATION DRAINS / FRENCH DRAINS
  • FOUNDATION FAILURES by MOVEMENT TYPE
    • ACTIVE vs. STATIC FOUNDATION MOVEMENT
    • BUCKLED FOUNDATIONS due to INSULATION
    • BUILDING SETTLEMENT
    • BULGED vs. LEANING FOUNDATIONS
    • COMBINATIONS OF FOUNDATION MOVEMENT
    • FOUNDATION SETTLEMENT
    • HORIZONTAL MOVEMENT IN FOUNDATIONS
    • SETTLEMENT IN FOUNDATIONS
    • SHRINKAGE CRACKS in CONCRETE
    • VERTICAL MOVEMENT IN FOUNDATIONS
  • FOUNDATION FAILURES by TYPE & MATERIAL
    • BLOCK FOUNDATION & WALL DEFECTS
    • BRICK FOUNDATION & WALL DEFECTS
    • BRICK STRUCTURAL WALL Loose Bulged
    • BRICK VENEER WALL
    • BRICK WALL DRAINAGE WEEP HOLES
    • BRICK WALL THERMAL EXPANSION CRACKS
    • COLUMNS & POSTS, DEFECTS
    • CONCRETE FOUNDATION, WALL, SLAB DEFECTS
    • CONCRETE PRE-CAST FOUNDATION DEFECTS
    • PIER FOUNDATION PROBLEMS
    • STONE FOUNDATION DEFECTS
    • WOOD FOUNDATION DEFECTS
  • FOUNDATION INSPECTION METHODS
  • FOUNDATION INSPECTION STANDARDS
  • FOUNDATION INSULATION OPTIONS
  • FOUNDATION MATERIALS, Age, Types
  • FOUNDATION MISSING INCOMPLETE
  • FOUNDATION MOVEMENT ACTIVE vs. STATIC
  • FOUNDATION REPAIR METHODS
  • FOUNDATION WATERPROOFING
  • FRAMING DAMAGE, INSPECTION, REPAIR - home
  • FROST HEAVES, FOUNDATION, SLAB
  • SINKING BUILDINGS
  • SINKHOLES, WARNING SIGNS
  • SITE FACTORS AFFECTING FOUNDATIONS
  • SLAB CRACK EVALUATION
  • SLAB CRACK REPAIR
  • WATER ENTRY in BUILDINGS
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.

Foundation damage evaluation: how to distiguish foundation bulging vs. leaning movement by type & location of cracks & bends in foundation components. We distinguish among vertical movement, horizontal movement, leaning, tipping, bending, differential and uniform settlement, earthquake and storm damage, and other foundation damage patterns. This article series describes how to recognize and diagnose various types of foundation failure or damage, such as foundation cracks, masonry foundation crack patterns, and moving, leaning, bulging, or bowing building foundation walls.

Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.

How to distinguish between a "bulged" foundation wall and a "leaning" foundation wall, and why we care

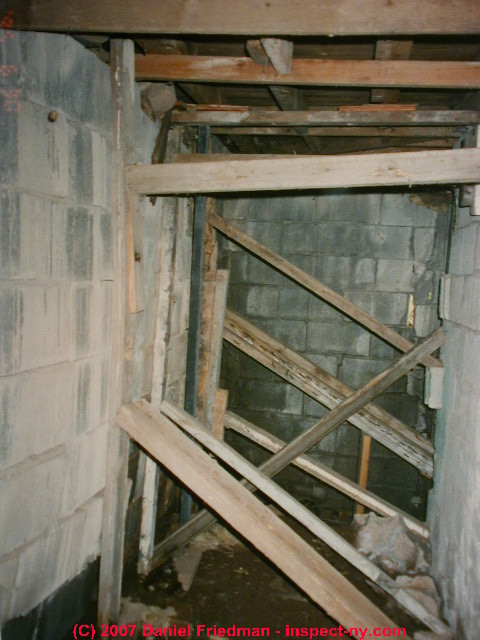

Photograph of a leaning foundation wall

Why distinguish between leaning and bulging foundation walls?

We care about the distinction between leaning and bulging because understanding the location and pattern of foundation wall cracking or movement may help us diagnose its cause and thus may help us understand what actions are needed to stop further foundation movement or perhaps to decide on a course of repair or reinforcement of the wall.

For example, recognizing that a foundation wall has bulged inwards at about the depth of the frost line at a building may tell us that the root cause of that particular foundation movement was frost pressure from spillage of roof runoff too close to and along the building wall.

Watch out: To be used properly, this information must be combined with specific on-site observations at the particular building in order to form a reliable opinion about the condition of that building's foundation. Anyone having concern regarding the structural stability, safety, or damage of a building, foundation or other components, should consult a qualified expert. Photographs of types of foundation cracks and other foundation damage: we have a large library of photographs which we're in process of adding to this document. Pending completion of that work, contact the author if assistance is required.

The same forces produce different effects on poured concrete walls compared with masonry block, brick, or stone walls

Even a concrete wall which is bulged is likely to be cracked horizontally, though perhaps not in such a straight line. But a bulged reinforced concrete wall would be very rare unless perhaps the concrete wall bulged, or its forms bulged, during the time that the concrete was being poured and was still wet.

It's more likely that a reinforced concrete wall will be caused to lean or to shift horizontally while a masonry unit wall or stone wall is likely to be bulged and cracked by the same external forces.

Also see FOUNDATION CRACK EVALUATION for a discussion of the diagnosis of specific crack patterns in masonry foundations, and see FOUNDATION BULGE or LEAN MEASUREMENTS which explains a simple method for determining how much bulge or lean is present in a foundation or wall, then see FOUNDATION MOVEMENT ACTIVE vs. STATIC which helps determine if the foundation movement is ongoing, and see FOUNDATION DAMAGE SEVERITY for a discussion of just how much foundation movement is likely to be a concern.

Characteristics of a bulging foundation wall

Photograph of ...



If our measurements anywhere between the floor and the top of the wall is greater than the distance measured (wall to string) at the floor bottom and at the wall top then the wall is "bulged" inwards at that point.

If the wall is masonry block in construction we'd expect to see horizontal cracks in one or mortar joints in the bulged area, with the widest horizontal crack at or close to the point of greatest inward bulge.

For details of a simple foundation bulge or lean measurement procedure using just string and a ruler, see FOUNDATION BULGE or LEAN MEASUREMENTS

Characteristics of a leaning foundation wall

Photograph of ...
If all of our measurements of inwards movements in the foundation wall increase in distance (wall to string), from floor up towards the top of the wall, the wall is leaning inwards.

In this case we'd expect to not see horizontal cracks (if the wall is masonry block, for example).

Watch out: in some cases a foundation wall may not lean in the direction you expect.

For example a reinforced masonry block wall or poured concrete wall which has been pushed inwards by earth loading might move inwards at the bottom of the wall rather than at the top.

The bottom of the wall will have been pushed in to the building basement or crawl space and the top may actually begin to lean out and may even become visible outside, protruding out past the building framed wall.

Earthquake damage which shifts a building off of its foundation can also produce something that looks like and can be mistaken for this condition.

...
