Types of foundation movement: this article discusses how to evaluate and diagnose foundation cracks and movement classified by the type of movement that is occurring: horizontal movement, vertical movement, bulging or bowing walls, leaning or tipping foundation walls, and other forms of foundation settlement or heaving. This chapter of the "Foundation Crack Bible" discusses in detail the recognition of different types and causes of building foundation movement and foundation damage. We distinguish among vertical movement, horizontal movement, leaning, tipping, bending, differential and uniform settlement, earthquake and storm damage, and other foundation damage patterns.

Use links just below or at the left of each page or the links just below to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Guide to Types of Building Foundation Movement as an Aid to Foundation Damage Diagnosis & Repair

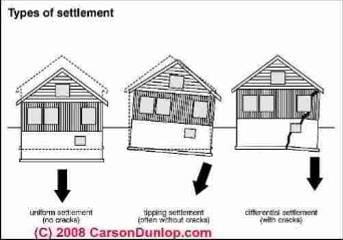

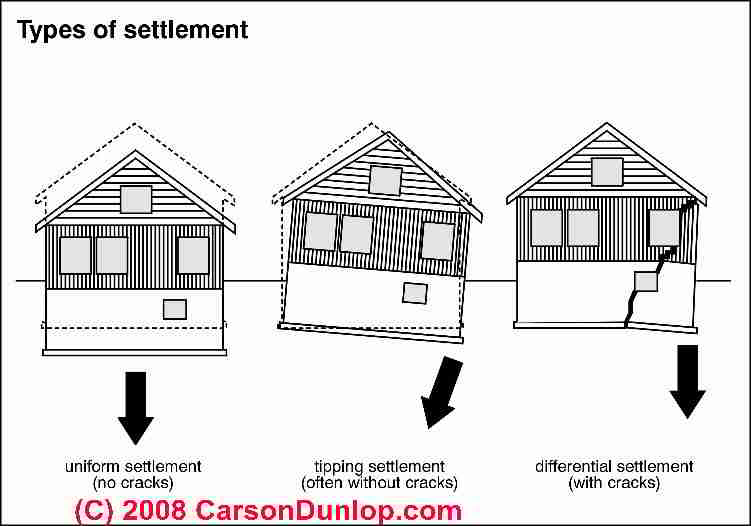

Sketch of types of foundation settlement (C) Carson Dunlop

This article series describes how to recognize and diagnose various types of foundation failure or damage, such as foundation cracks, masonry foundation crack patterns, and moving, leaning, bulging, or bowing building foundation walls. To be used properly, this information must be combined with specific on-site observations at the particular building in order to form a reliable opinion about the condition of that building's foundation.

Anyone having concern regarding the structural stability, safety, or damage of a building, foundation or other components, should consult a qualified expert. Photographs of types of foundation cracks and other foundation damage: we have a large library of photographs which we're in process of adding to this document. Pending completion of that work, contact the author if assistance is required.

Detailed articles on types of foundation movement are listed just below. The sketch is courtesy Carson Dunlop Associates

Strategy for Building Foundation or Floor or Slab Crack, Damage, or Movement Assessment

To understand the cause, effect, and remedy for all types of building foundation or masonry wall damage or movement we have categorized foundation damage into these broad categories:

FOUNDATION FAILURES by MOVEMENT TYPE: is the movement active or not, how is the foundation moving: bulging, leaning, settling, etc. ?
FOUNDATION FAILURES by TYPE & MATERIAL: how does damage show up in different types of foundation material & what are the implications for collapse risk or repair need?
FOUNDATION CRACK EVALUATION, what is the severity of foundation damage, what is its effect on the stability of the structure, and how urgently are foundation repairs needed?
FOUNDATION REPAIR METHODS discusses alternative ways to fix a damaged foundation or floor slab crack or movement

Vertical Movement in Foundations & Walls

Vertical movement in foundations, in the most general cases, is caused by downwards movement of the wall or wall footings such as when a wall footing sinks in soft soil, or by an up and down movement of the wall or wall footings such as when a wall is disturbed by frost in a freezing climate or by expansive clay soils which expand or shrink as their water content increases or decreases.

We discuss types of vertical foundation movement in detail at VERTICAL MOVEMENT IN FOUNDATIONS. Here are some classes of vertical foundation or building wall movement which we illustrate and discuss in more detail below:

Differential foundation settlement: one portion of a building foundation or wall moves up or down separately from its neighbor. See Differential vs. Uniform Settlement Cracks. Differential settlement will damage the foundation or wall by producing (usually vertical, possibly diagonal or stair stepped) cracks and other symptoms of wall movement. The large foundation crack in this poured concrete wall was caused by differential settlement in a new foundation wall. All of this movement occurred during the first 13 months after the home was built.
Uniform building settlement: an entire building moves up or down together, causing little or no foundation cracking or damage, though there could be important damage to mechanical connections to the building and even dangerous gas line leaks.
Building tipping or leaning: an entire building tips or leans out of level. For a detailed discussion of the diagnosis of specific crack patterns caused by wall bulging and leaning in masonry foundations, and see FOUNDATION BULGE or LEAN MEASUREMENTS
Vertical shrinkage cracks in foundation walls: If a vertical crack is fairly uniform in width we pose that it was produced either by a non-sloping vertical settlement of one section of the footing or foundation wall, or the crack was produced by shrinkage (in some wall materials like concrete) not by vertical movement at all. We discuss the types of crack or movement patterns produced by shrinkage, expansion, and settlement further at SHRINKAGE vs EXPANSION vs SETTLEMENT.
Earthquake or Storm Damage to Buildings: can cause complex building movement in multiple directions, as we illustrate at Foundation Movement due to Earthquake.

Horizontal Movement in Foundations & Masonry Building Walls

Horizontal movement in building foundations or walls is generally caused by an external lateral or "sideways" force applied to some portion of the wall. Depending on the construction materials used and the strength of a foundation wall, a force applied to the wall can cause it to move in any of several ways which we discuss in detail at HORIZONTAL MOVEMENT IN FOUNDATIONS.

Bulging foundation wall movement: the wall may bend or "bulge", tending to bulge away from the force (usually inwards into the building from earth, water, or frost pressure), with the greatest amount of inwards movement at or near the point of greatest pressure or force being applied.
Leaning foundation wall movement: the wall may lean away from the force being applied (usually into the building from the same forces listed above).
Shifting or creeping foundation wall movement: a foundation wall, or portions of it, may remain close to vertical, without leaning or bulging, but forces applied to the wall may cause the entire wall (or a portion of it) to move horizontally. We see horizontal shift or creep occurring in several cases:
Complex foundation wall movement: most of the drawings we see at seminars on foundation damage or used by companies offering foundation repair products are clear and helpful for understanding the concept of foundation damage and movement, but often they do not describe what we actually find in the field.

Combinations of Foundation Wall Movement, Horizontal & Vertical Crack Patterns Occurring Together

We discuss the inspection and analysis of foundation damage which shows a combination of different movement directions, forces, or crack patterns in detail at COMBINATIONS OF FOUNDATION MOVEMENT including the following examples of combination foundation damage:

Step cracks combined with bulging walls
Combinations of foundation wall movement during foundation collapse
Combinations of foundation wall movement due to earthquake, flood, impact, or explosion
Step cracks combined with leaning foundation walls

How to distinguish between a "bulged" foundation wall and a "leaning" foundation wall, and why we care

Understanding the location and pattern of foundation wall cracking or movement may help us diagnose its cause and thus may help us understand what actions are needed to stop further foundation movement. We discuss how and why we make this distinction between bulging and leaning foundations in detail at BULGED vs. LEANING FOUNDATIONS.

Even a concrete wall which is bulged is likely to be cracked horizontally, though perhaps not in such a straight line.

But a bulged reinforced concrete wall would be very rare unless perhaps the concrete wall bulged, or its forms bulged, during the time that the concrete was being poured and was still wet. It's more likely that a reinforced concrete wall will be caused to lean or to shift horizontally while a masonry unit wall or stone wall is likely to be bulged and cracked by the same external forces.

...
