• How to Evaluate and Diagnose Complex Combinations of Foundation Movement Cracks, Bends, Leans, or Shifts in Foundation Walls
• Different causes of foundation leaning, bulging, cracking, creeping, tilting, sliding, or other movements, what they look like, how to fix them.

This chapter of the "Foundation Crack Bible" discusses in detail the recognition of different types and causes of complex or combined building foundation movement and foundation damage. We distinguish among vertical movement, horizontal movement, leaning, tipping, bending, differential and uniform settlement, earthquake and storm damage, and other foundation damage patterns.

Our "Foundation Crack Bible" document, of which this web page is a chapter, describes how to recognize and diagnose various types of foundation failure or damage, such as foundation cracks, masonry foundation crack patterns, and moving, leaning, bulging, or bowing building foundation walls.

Also see FOUNDATION CRACK EVALUATION for a discussion of the diagnosis of specific crack patterns in masonry foundations, and see FOUNDATION BULGE or LEAN MEASUREMENTS which explains a simple method for determining how much bulge or lean is present in a foundation or wall, then see FOUNDATION MOVEMENT ACTIVE vs. STATIC which helps determine if the foundation movement is ongoing, and see FOUNDATION DAMAGE SEVERITY for a discussion of just how much foundation movement is likely to be a concern.

To be used properly, this information must be combined with specific on-site observations at the particular building in order to form a reliable opinion about the condition of that building's foundation. Anyone having concern regarding the structural stability, safety, or damage of a building, foundation or other components, should consult a qualified expert. Photographs of types of foundation cracks and other foundation damage: we have a large library of photographs which we're in process of adding to this document. Pending completion of that work, contact the author if assistance is required.

Combinations of Foundation Wall Movement, Horizontal & Vertical Crack Patterns Occuring Together

Wall bulge and step cracking

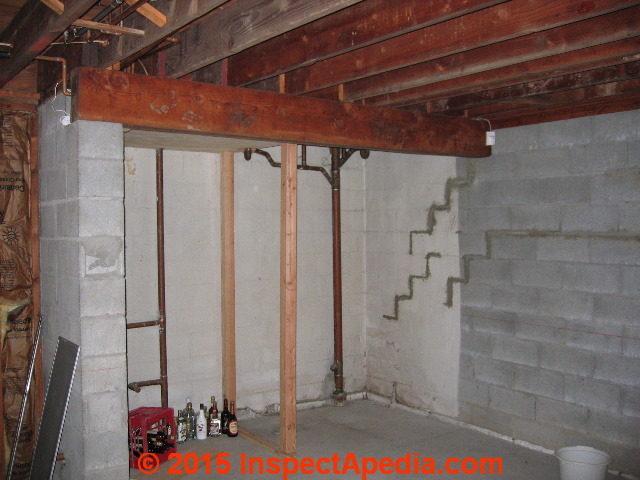

Step cracks may also be present in bulged, leaning, or horizontally pushed foundation walls if they were constructed of brick or masonry block, or possibly (though less common) of stone. In fact since the building foundation corners are stronger than the center portions of the foundation wall (the opposing wall at right angle resists movement of the wall being pushed), wall bulges, leans, and cracks tend to occur towards the center of the wall, resulting in step-cracking closer to the ends of the same wall. In the photograph above, frost push has bulged the center of the foundation wall inwards; as the forces of wet earth and or frost pushing on the upper 1/3 of this foundation wall were applied at the center of the wall, the wall bulged inwards and cracked horizontally at the point of most pressure. As the same forces causing this wall to bend were exerted closer to the building corners, the wall cracked in the step-crack pattern clearly marked in this picture by the "repairs" which have been done by filling the cracked joints. If the total amount of wall movement was minor and if the outside source of pressure (water and frost) has been corrected, further repair or reinforcement may not be needed.

Combinations of Foundation Wall Movement During Collapse

Examples of Flood Damage to Building Foundations

Flood damaged building foundation walls: just as earth pressure or the increased pressure from wet earth can lead to foundation damage or even collapse, flooding around buildings can lead to foundation damage or collapse from a combination of pressure on foundation walls and perhaps loosening of supporting soils. In flood prone areas local building codes may call for the installation of flood ports on building foundation walls to reduce the risk of building collapse. The principle of the flood vent is simple: in response to high water surrounding a building the flood vent opens to permit water to enter the building basement or crawl space, thus equalizing pressure on both sides of the foundation and reducing the chances of foundation collapse. See Flood Damage to Foundations for details about this topic.

Examples of other step cracks occurring in masonry walls or masonry foundations

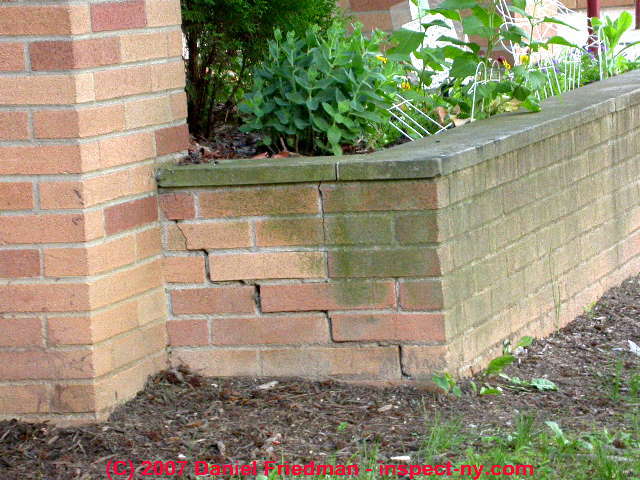

Other step cracks will of course also occur in building masonry block foundation walls and in brick masonry walls that are not leaning or bulging particularly, where frost or settlement have been causing an "up and down" movement in the foundation or footing. We will also encounter step cracks where earth pressure or frost have pushed such a wall horizontally, breaking the masonry courses near a corner or wall-end in a stair-step pattern such as we see in this little example of water and frost damage to a brick retaining wall.
