This article explains how to recognize, diagnose, & repair brick foundation & brick wall defects & failures such as cracks, spalling, movement, bulging, leaks, damage due to impact, settlement, frost or water damage, and other problems. We describe types of brick foundation or wall cracks, crack patterns, differences in the meaning of cracks in different brick wall types (veneer vs. structural or solid brick walls), and where there is brick wall damage, the role of site conditions, building history, and other causes of building movement and damage. This information helps in recognizing foundation defects and to help the building owner or inspector separate cosmetic or low-risk conditions from those likely to be important and potentially costly to repair.
Green links show where you are. © Copyright 2014 InspectApedia.com, All Rights Reserved.
Examples of structural & other failures in brick walls & foundations
Brick wall settlement: These photographs of a Canadian brick structure (courtesy Carson Dunlop) show what is probably old and recurrent structural damage to a brick building in its above-ground walls. We suspect there has been ongoing foundation settlement below these problem areas. [Click any image to see an enlarged, detailed version]
Watch out: Any movement in a structural brick wall which risks having broken the bond courses in the wall, and any movement in a brick veneer wall which has broken or loosened the connections between the veneer to the underlying structure are potentially dangerous and risk collapsing masonry! Also see BRICK VENEER WALL Loose, Bulged.

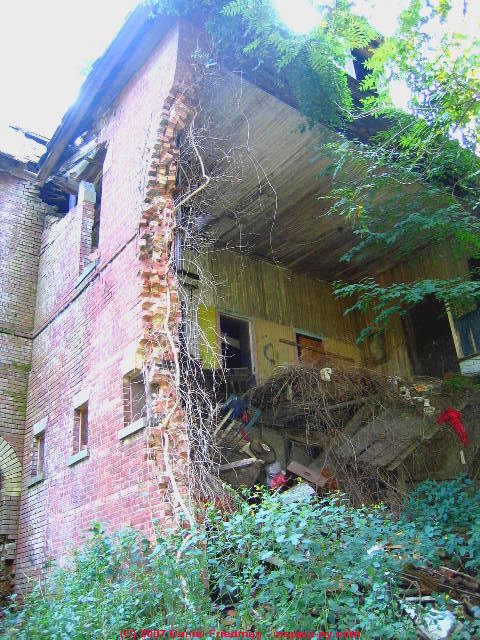

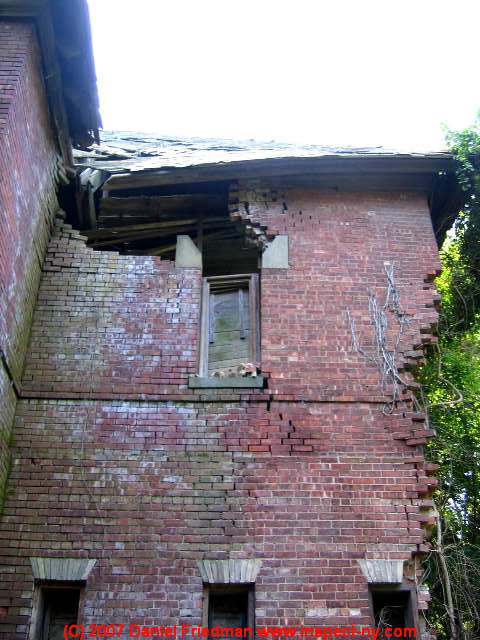

Structural brick wall collapse: This historic brick structure in Saugerties, NY, had already begun to collapse when we inspected its condition. The root cause of failure was water from roof leaks and at the building right side (not visible) in-slope grade and surface runoff which soaked the structure's lower foundation walls and permitted frost damage.
As bond coursed break and walls bulge, structures of this type are unstable and dangerous.
It is likely that considerable portions of this structure will need to be removed before repairs can begin. Inside we observed other evidence of collapsing foundations below other walls and we considered this building dangerous to enter.

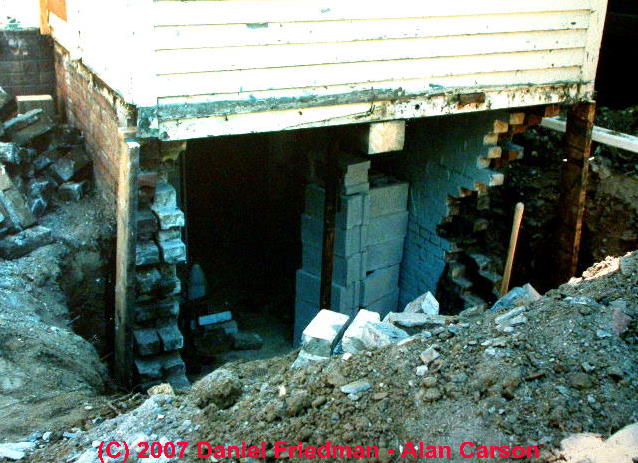

Structural brick foundation collapse
We can see that this collapsed brick wall was a structural brick foundation, and the soil piled up suggests it was done in by pressure from wet earth - a drainage or roof drainage problem may have been the root cause of this collapse.
[Photograph courtesy of Alan Carson, Carson Dunlop, Toronto]
Some common brick foundation wall or brick structural wall defects to be observed and reported include:
This sketch of the components of a preserved solid brick foundation with masonry exterior walls is courtesy of Carson Dunlop Associates.
Improper repair mortar used during "repair work", tuckpointing bricks, or re-pointing bricks can cause
surface spalling of bricks if the mason uses a too-hard mortar high-portland content mortar on soft brick in a climate
exposed to freezing weather.
We continue discussing how to inspect and diagnose brick foundations and walls at: BRICK WALL THERMAL EXPANSION CRACKS and how to recognize and evaluate it, and what causes thermal cracks in brick foundation walls or building walls is discussed and illustrated at BRICK WALL THERMAL EXPANSION CRACKS.
Also see this close companion article: FOUNDATION CRACK EVALUATION which discusses in detail the process of evaluating foundation cracks and signs of foundation damage by examining the crack size, shape, pattern, and location.
Green link shows where you are in this article series.
Frequently Asked Questions (FAQs) about brick foundations & brick walls: inspection, troubleshooting, & repair methods
Great article! Although this information isn't specific to Australia, it has still helped me understand more in my building contractor course. Thomas Wong, 11/29/2011
Thomas thanks for the nice comment about our website content. We know that we have many readers in Australia and New Zealand and I'm anxious to add terms and technical details that match those used in your area. While climate and constuction practices vary around the world, brick and masonry construction in general suffers similar problems in most places - often it's the local names for materials & construction methods that vary more than the materials and pracices themselves. One man's septic drainfield is another's soakaway bed.
We'd welcome specific questions, comments on different construction terminology used in different parts of the world, etc. We are dedicated to making our information as accurate, complete, useful, and unbiased as possible: we very much welcome critique, questions, or content suggestions for our web articles. Working together and exchanging information makes us better informed than any individual can be working alone.
Question: Solid Brick Wall Leaks, Troubleshooting, Repair Options for Sealing a Curved or Round Top Window in a Brick Veneer Wall, Stucco Surface, or Structural Brick Wall
We have a leak in an interior wall. We have torn out part of the inside of the wall and have discovered that the leak is coming through the brick mortar above the window.
If we completely seal and waterproof the brick wall, and install synthetic rock over the brick, could this cause any type of mold or mildew problem behind wall or the sheetrock wall on the inside of the house?
I have been told by some brick people a potential interior mold problem could be caused if we used a non breathable sealer on the brick wall. We just need to stop the leak and we never want it to come back again.
We have been working on this for several months and would greatly appreciate your help.
We feel you may have the expertise to help us correctly know what to do to correctly fix our leak and not cause any mold problem down the road.
We would greatly appreciate your help, - Anon.
[Our photo of a curved-top window in a stuccoed wall (above left) is from a different structure than the one described by the reader, though the sealing problems remain the same - Ed. ]
In general it is a better and more reliable strategy to fix building leaks from outside the structure rather than relying on layers of interior waterproofing. I presume you're talking about installing drywall over the brick interior surface of the wall - or perhaps you meant something like Permastone? I'm unclear on that step.
But I'd want to know that the wall is not leaking before laminating more stuff on its inside surfaces.
Even a small opening (photo at left) at a window set in a brick wall can result in a lot of water leakage into the building wall or interior, especially when the exterior wall sees a combination of wind-blown rain and heavy rainfall - a lot of water running down the vertical face of the brick wall finds and enters any opening that it can.
A window or door set into masonry and designed not to leak, uses a combination of careful attention to flashings, especially head flashings over windows and doors, sealants at vertical sides of windows and doors, and properly sloped as well as sealed window sills and thresholds.
Reader Follow-up: - Do we Need Weep Holes in a Solid Brick Structural Wall?
I had another couple of questions.
1. The brick around our house is solid and does not have any weep holes. I know now they also did not flash around any of the windows or bottom of walls. We have a raked finish. Our home is 9 years old. As I mentioned we have a leak through the mortar above one of our windows. Although we have no flashing, do we need to have weep holes put in the brick?
Should they be located above the interior floor level or as low as possible above ground level?
2. We have foundation vents, but we keep them closed because we have used a cleanspace encapsulation system in the crawlspace (we also have a dehumidfier).
3. Could the foundation vents be opened and turned into correct weep areas?
I appreciate your help. Thank you, - Anon.
1. Not if it's a solid masonry wall, but you may need to review mortar joints and tuckpoint any in bad shape, loose, fallen out; do not caulk or seal steel lintels over windows or doors against the brick; If the wall were a brick veneer wall or a brick wall that included a hollow rain space between wythes of brick (see Brick Veneer Wall Construction) then weep holes may be in order. Details about weep holes in brick walls are at Weep Holes in Brick Walls. Also see Brick Wall Drainage, Flashing & Ventilation Products.
2. I agree, better current wisdom is convert the crawl to conditioned space;
3. I must not understand your question as foundation vents don't weep nor drain a brick wall. Besides, solid brick? No.
Thank you very much for your reply. We also have a leak in a window we have not been able to stop. I have sent you a picture (at left) to help you see it. We have had the inside of the wall cut out to the brick. We have water that is coming in (possibly through mortar or brick or both). When we put a hose to it, it is like a small waterfall on the inside of the house, behind the brick wall, above the window (where the ladder is). We have a raked joint finish in the brick.
I have put an acrylic caulk (lexor) with my fingernail into the very small cracks in the head joints of the brick. I had thought about using a breathable brick water repellant called siloxane (prosco is the company). I am hesitant because I do not think this will permanently stop the leak.
My wife and I want to permanently stop the leak before we install a new window and fix the inside of our home.
My questions are:
1. If we completely waterproofed the brick wall and used synthetic (faux) stone over the wall, is there any way this method could cause a mold problem on the inside of the wall where the sheetrock is located?
2. We have several weak mortar areas around the home. If we have a mason dig them out and repoint them, could this cause any type of worse water damage? I would like to use brick mortar if it is possible to permanently fix the problem. One of our contractors stated digging out the mortar would cause void, and since we have a raked finish, it probably would not work.
What is the best way to fix the bad mortar areas with a raked finish?
3. If we did use siloxane based sealer and we tested it and it worked, do you think it would be work to stop the leak if we just reapply it every couple of years?
We have had several different contractors and window persons in our area try to help us, but we continue to get many different answers. I have also sought help from many others, but we can not decide how to correctly fix the problem.
We have been dealing with this problem for several months. After reading several articles on your site yesterday, I felt that you would have the expertise to help us decide the correct way to fix our water leak. My wife and I would very much appreciate your help with our frustrating problem. Thank you for your help, - Anonymous by request
Your photo (see above) reminded me of a prof I had who wrote on the board in 1/8" high letters - when we asked him to write bigger he wrote in 3/16" high letters. But I did see an archtop window in brick - difficult to seal or flash; When you install a new window look into a custom curved flashing with a counterflashing that is cut into the brick and that cut sealed;
Spray silicone ased waterproofing masonry sealant coatings (including Sure Klean® Weather Seal Siloxane PD) improve the water resistance of solid masonry surfaces like brick but they don't seal openings, gaps, leaks, and have about a one-year life in my experience.
If your brick wall exterior looked like the example we show at left, unfortunately the proper repair is removal and replacement of those adly worn, crumbling bricks, using a matched mortar in the replacement.
If the bricks in your wall are basically intact and retain their original hard fired surface, tuckpointing open mortar joints and flashing at windows and doors should be in your repair and maintenance plans.
A silicone or other brick sealant spray or paint-on coating won't help the waterfall-at-the-window leak you described. You can make a temporary seal from outside using geocel or a similar high grade sealant/caulk, pending window replacement.
At left we show a bad brick wall repair, using a too-hard (too high in portland cement) brick mortar joint repair that also is not matched in the slightest to the original wall's mortar joint color, texture, nor tooling. This building, on the Vassar College Campus in Poughkeepsie, New York, had enough deterioration that ultimately the college maintenance department rebuilt this collapsing wall section and fixed the roof spillage problem that was causing the damage.
The right repair for deteriorated mortar is to excavate the loose stuff to sufficient depth that new mortar can be tucked into the joints; be SURE to use mortar that is
Steve Bliss comments on brick wall leak and window head flashing concerns
Steven Bliss gave us a few helpful remarks and recommended the JLC articles I list below: Steve writes: "I am no expert on brick veneer or Drivit (aka, EIFS), but know that EIFS have generated numerous lawsuits for leaks, especially around windows. JLC has published several articles over the years on leaky synthetic stucco systems (ones marked FREE you can view at the JLC website without a password).
From my cursory reading of the above case, I can’t quite tell where to stucco ends and the brick begins.
Flashing of flange-type windows is another big problem in any type of wall. I’ve looked into this over the years and written about it in my book Best Practices Guide to Residential Construction, Wiley (November 18, 2005).
However, there’s still a lot of controversy about what is the best approach for integrating the flange, membrane, housewrap, flashing, and siding. Regarding the watertightness of brick veneer, it’s my understanding that it is never really watertight and depends on proper detailing of the weather barrier beneath and weep holes to protect the structure from water damage.
I have found a person to make a custom curved flashing (finding someone who has ever installed one will take a miracle).
I guess the frustrating thing for us is we had poor work done, I have spent several months researching to find the best and correct way to do the project. I understand what is correct, but the people in our area have either not heard of it, never done it, or have always done it a certain way.
A couple of examples:
Most in our area only use flashing tape to seal top of curved windows. The others I have found who flash windows, use black rubber because it is flexible and easy to work with - they say they have never had a call back for a leak.
I called the largest brick distributor in the state (Birmingham) and asked about the weep hole products they had. The brick company said the correct protocol was to use weep rope and run it to the weep holes. I talked with a dryvit contractor who just finished a large commercial job (church) in Huntsville. He said they used rope for weep holes.
I called tamyra (not sure on spelling) to buy weep hole inserts that was pictured in the weep hole article - their machine is broken, can not make the product, and do not know when they will start again.
These are just a couple of examples of what we go through. I greatly appreciate all of your help that you have provided.
Could you please tell me what the counter flashing is. Could you please provide a picture or tell me how to locate one.
Reply: - Counter Flashing & Metal Drip Caps for Windows & Doors
Most flashing designs for roofs (though not for many windows) are made of two pieces. An underpiece intercepts water at the vertical to horizontal (or sloping)( surface and directs it back onto the roof or other draining surface so that it can drain away from or off of the structure rather than into it.
The second or upper piece of flashing, counter-flashing, is designed to intercept water that might run behind the vertical surface of the first flashing.
Counter flashing, then, is a second course of flashing that overlaps the upper end of the vertical portion of roof or other flashings to prevent water that runs down a vertical surface (building wall, chimney side) from passing behind the under flashing.
The upper edge of the counter-flashing is either installed beneath building siding, or is bent over at a 90 degree angle and sealed into a groove cut into the building wall. Or some installers use a peel-and-stick membrane beneath the siding and sheathing wrap and over the top of the step flashing, as shown in the illustration at left, courtesy of Steve Bliss & Best Practices Guide to Residential Construction
Watch out: Some inexperienced installers omit counterflashing and instead rely on simply caulking that vertical upper edge - an unreliable solution.
Metal drip cap over window & doors:
Over windows and doors manufacturers such as Anderson often provide a single piece of flashing designed to do the whole job of keeping water from entering the structure at the top of a window or door.
In a retrofit window or door installation, such as the Anderson sliding glass door shown at left, the factory head flashing or drip cap is installed over the new door frame and inclorporates a vertical flange that will be sealed against the building wall using first flashing tape, and second a horzontal trim board whose top edge is caulked to keep water from running behind the trim.
For details on how to install window & skylight flashing & sealants take a look at Window Flashing & Sealing Guide
In new window or door construction (our photo at left), the uppermost edge of the window or door drip cap or head flashing is installed underneath the finish siding, and the lowermost edge of that head flashing extends out past the horizontal edge of the window or door top trim and is usually bent to include a lip or drip edge to direct water droplets off of the surface so that water doesn't simply run down it or weep back under the flashing by capillary action.
Obviously, you wouldn't try installing flashing tape against a brick wall or brick veneer wall surface.
On a brick wall or brick veneer the head flashing (or counter flashing if it's used) over a window or door are either installed to extend their vertical flange up the wall sheathing beneath the housewrap and beneath the brick veneer (new construction) or the head flashing is bent to a 90 degree and let into a groove cut into the brick wall and then that groove is sealed using a high grade sealant such as Geocel (retrofit or repair construction).
