Log home air & water leaks: Log home spline and sealant mistakes: here we dexplain methods to detect the omission of splines or gaskets during the construction of milled log or solid log houses, and we suggest repair methods to stop log house drafts and leaks.

Readers should also see Log House Leak Diagnosis & Cure. Our page top photo (discussed below) shows that without a doubt the butt joint of these two logs was not splined nor sealed against water leaks and air drafts. The stains on the log ends confirm that water has indeed leaked into the structure at this point.

This series of articles provides information on the inspection and diagnosis of damage to new and older log homes and includes description of log house and log siding insulation values and alternatives, and also a description of the characteristics of slab-sided log homes as well as all other types of log home construction. We include illustrations of log structures from several very different areas and climates in both the United States and Norway. Our page top photo shows a modern kit log home constructed in New York State.

For modern kit and factory-sourced log structures we include details of common construction and building defects that cause water and air leaks and ultimately rot damage and we point to key problem areas that need to be inspected carefully when buying or maintaining a log home.

Guide to Finding & Repairing Spline Gaps & Gasket Omissions in Log Home Walls

What goes wrong during construction of a log home wall? This article describes gasket and caulk omissions and failure to keep the wall plumb and true.

Rushing Log Set Crews Omit Sealants?

Log wall being framed (C) Daniel Friedman

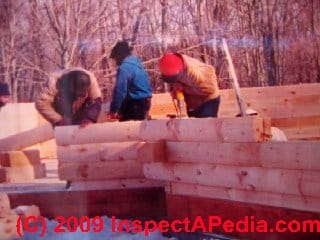

In this photo of a log home kit wall being assembled you can see the ends of between-log gaskets protruding out between every log course - or can you? Count down from the fifth log from the top and the sixth log from the top of this wall at the right hand end - was this log gasket forgotten? (Maybe not, it may have been trimmed "short" - we can't see for sure in this photo.)

In the speed and excitement of constructing a modern milled-log home, we can testify from first-hand experience that it's embarrassingly easy to make a mistake or two. Working in the assembly of a beautiful manufactured-log home years ago we split into teams. Paul Galow and we did the layout on the newly-constructed first floor deck, making sure that our measurements were exact - because the logs were cut to within 1/16" of spec themselves.

A second log house construction crew, the log set gang, began carrying logs up from the log stack onto the first floor decking, placing each log in numbered sequence according to the manufacturer's plans and instructions. (Yes we read the instructions, and no, this photo is of a different log home construction project that did not go as well as ours.)

A third log construction crew had the job of placing gaskets and caulk as the specs called for on top of each log course before the next course of logs was placed.

We followed the log-set gang with our log drill and log spikes to secure each new log course in place.

The log placement crew excitedly set each new log in place - but on a few occasions they were ahead of the caulk, and gasket crew. Some logs were placed without the proper sealant between log courses - something that was virtually impossible to correct after more courses had been set and spiked in place. Later it was up to us to find and fix these construction snafus. The new log home owner, Jeff B. (my daughter Michelle's soccer coach) was working like mad carrying logs, but Jeff didn't bargain for leaks and drafts in his new home.

Air & Water Leaks at Log Home Corners

Log home corner with missing gaskets (C) Daniel Friedman

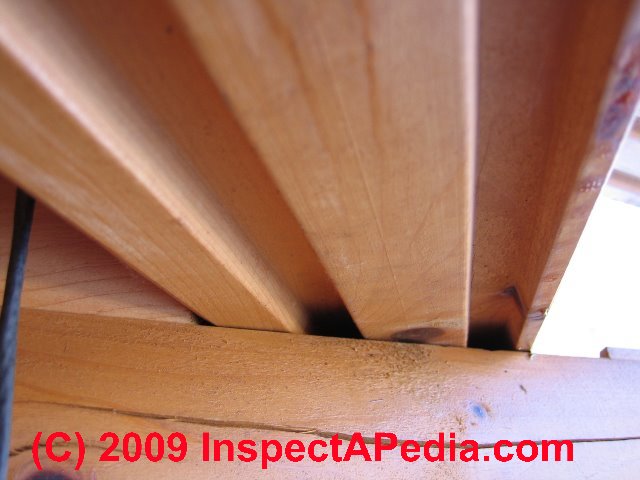

We couldn't see any sign of a gasket in this receiving groove at the corner of a log home where stains and draft complaints were traced to the building corners (photo above left). Often the builder will run the gasket wild past the end of the overlapping corner logs, then trim it off later, leaving a visible gasket end to confirm its presence. (Log home manufacturer instructions may vary on this detail.)

In our second photo (above right) the retrofit of caulk at the outside of the log home corners told us that someone had been trying to stop a draft.

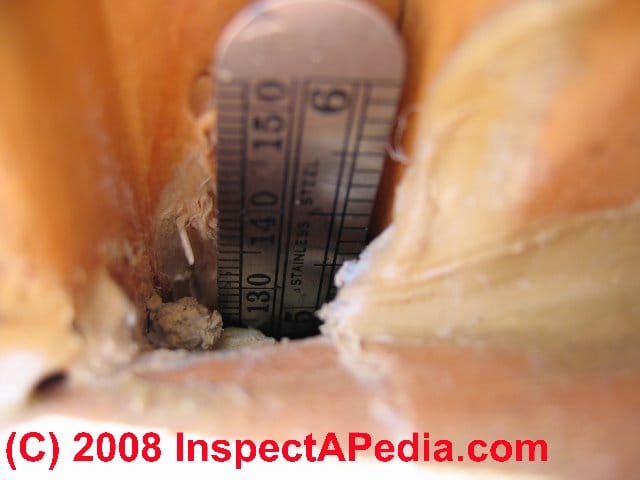

Probing behind the caulk (photo above right), or where there was no caulk showing at other corners (above left), if your probe reaches into the mating log faces for a distance greater than the overlapping intersecting log without finding any obstruction, the corner was not sealed with a gasket or caulk during construction. (Use a ruler longer than our little 6" unit here if you don't want to lose it inside the log wall.)

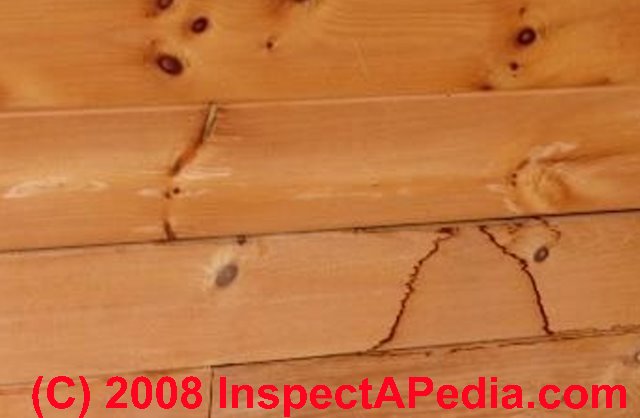

Inside this home near one of the intersecting log corners we can observe several leak stains over the collection of Marilyn Monroe souvenirs. Monroe died in 1962. Given the leaks and drafts in this corner, if Ms. Monroe were alive and visiting this particular home in winter, the leaks and drafts would surely have discouraged the striking of a suggestive pose.

Omission of Splines or Gaskets on Log Homes at Log End Butt Joints in Log Houses

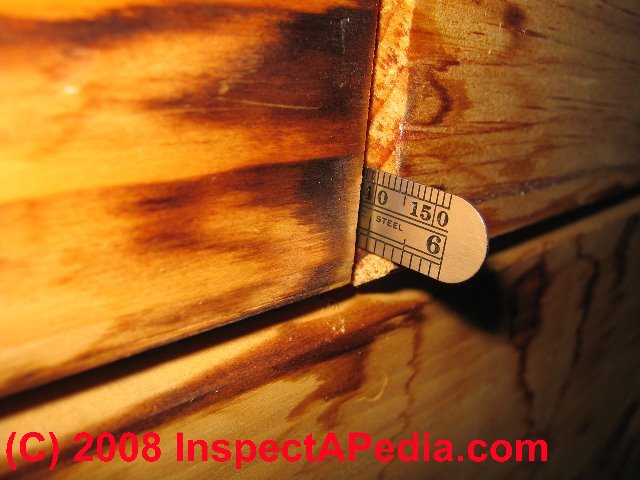

Splines, gaskets, or caulk are also specified between the ends of abutting logs. As you can see from our ruler in this photo, there was no obstruction between the indoor and outside surface of these butting logs in this leaky log home.

Without a doubt the butt joint of these two logs was not splined nor sealed against water leaks and air drafts. The stains on the log ends confirm that water has indeed leaked into the structure at this point.

Having worked on a log home construction crew we can testify that in the rush and excitement of keeping up with the crew setting logs around the building, the individual or crew whose job it is to place the caulk or gasket may fall behind. It's easy to place and fasten down a log without noticing that the spline or gasket was omitted.

Omission of T-jambs, Splines, Gaskets Causes of Leaks at Log House Windows

A little less common but still a problem among first-time log home builders is the omission of a T-jamb, splines or gaskets at window and door openings. Our ruler is being used to probe behind the window jamb to see if there was a spline or T-jamb used. (There was none.)

It is inherently tricky to mate a flat or rectangular window frame into a scalloped-surfaced log wall without leaks. Our photo shows use of a flat steel ruler as a probe to demonstrate that a flange, gasket, or even caulk were all omitted between this log wall window frame and the butt ends of the logs at the window rough opening.

But like most construction problems, the solution is well-known and at hand. Traditional log home windows and doors in Norway, for example, are constructed by placing a let-in rectangular board against the butt-ends of the logs at the window sides.

In the U.S. kit homes and manufactured milled log home designs typically include a "T-jamb" using a spline and rabbet grooved window jamb (or frame) to provide a positive seal (along with gaskets or caulk) between the window frame and the sides of the window opening where the butt ends of logs are exposed. Head flashing kits and sill flashing kits may also be provided by the manufacturer.

An outdoor view of the leaky log building wall at this window can be seen at Log Checking or Splitting.

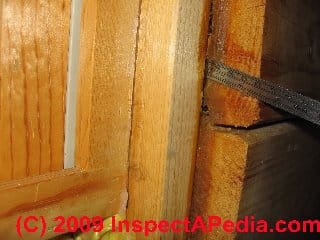

Where the window side splines are omitted, such as at this New York log home, the window will leak air and water around its frame. A retrofit project using caulk and custom window head and sill flashings might avoid having to completely remove every window and reinstall them with correct seals.

Probing horizontally into the openings cut for log splines you should be able to feel the presence of a gasket or caulk along-side or atop the spline openings.

From inside a building if you see daylight between logs of an exterior wall, or if you feel drafts during windy weather, or if you can probe all the way through the wall such as in our photo above, splines and/or gaskets may have been omitted.

Keeping Log Home Walls Plumb During Construction

Another detail about log home construction is worth mentioning, though it's not a spline or sealing defect.

Paul and we also used vertical braces nailed back to the floor deck and huge C-clamps along with levels, tape measures, eyes, string, other methods to keep our rapidly-rising log walls plumb and square. Log houses go up fast once everything is ready at the site.

If you do not keep an eye on your log walls during erection, unlike a platform-built wall that is constructed flat and lifted into place, it's possible for log walls to curve or lean out of plumb.

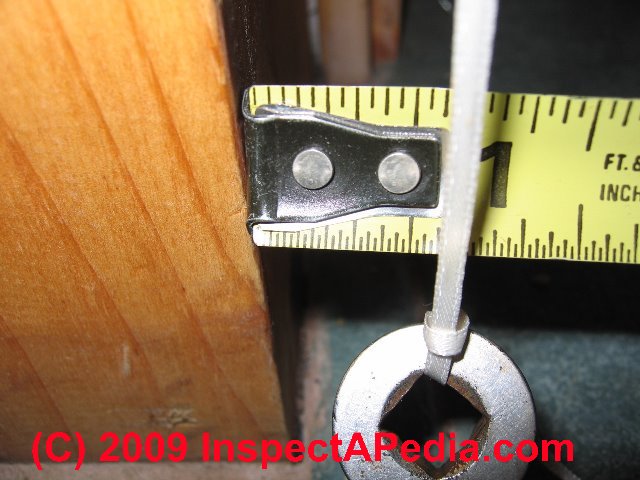

Our photo (left) shows a wall that was 7/8" out of plumb over 6'8 in height at a log home inspection (not one we built).

Out of plumb log walls on a home may also mean hard to seal intersecting building surfaces.

...
