How to Inspect the heating and cooling systems in mobile homes, trailers, double-wides, multi-wides: how to spot common and dangerous defects in heating equipment incuding furnaces and boilers, inadequate heat distribution, freeze-ups, and safety hazards. How to save heating or cooling costs for mobile homes and trailers or multi-wides.

Ver.3.5 - 04/25/07, updated through 2011 - Steve Vermilye, New Paltz NY and Daniel Friedman, Poughkeepsie NY, Hudson Valley ASHI Chapter Seminar, Newburgh NY, January 4, 2000, NY Metro ASHI Fall 99 Seminar, Holiday Inn Crowne Plaza, White Plains NY, October 2, 1999. Readers should also see MOBILE HOME PLUMBING where we further discuss oil tanks, oil piping, and water heaters for mobile homes. Page top sketch courtesy of Carson Dunlop.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

MOBILE HOME HEATING System Defects

General Characteristics:

• Hot air, gas-fired, central return heating units are most common ; oil & electric mobile home furnace-heaters are also used;
• 20% of mobile homes have problems with HVAC (C. r. survey);

Common Defects in Mobile Home Heating Systems

• fuel connection should have label indicating equipment and piping are ok for natural or LP gas or both; inadequate combustion air
• inadequate clearance to combustibles modified equipment, controls, flue-vent connectors, burners, duct work, venting
• Outside heating oil tank not protected from freezing (using more expensive kerosene mix?) or use of heating tapes on heating oil lines - a possible fire risk (photo above)

LP Tanks, copper gas lines are often left unsupported and exposed to mechanical damage; also check for LP gas leaks at tanks or fittings;

• Oil tanks at trailers and mobile homes - indoor-rated heating oil tanks are quite often placed outside, above ground, in ground contact, with heat tapes (a fire hazard), often leaking, and in cold climates, exposed to frost-risk which in turn risks loss of heat and related damage to the home
• Missing or still-covered-over spark arrestor on the heating flue on a mobile home - have your heating service technician check the safety of the entire flue and chimney, including the outside components

MOBILE HOME COOLING System Defects - Air Conditioning

General Characteristics of Mobile Home Cooling Ducts

• Heating or Cooling Ducts placed at one of these typical locations:
• cooling ducts placed in the floor along center line of the mobile home;
• cooling ducts placed in the floor along exterior walls (better heating in cold climates);
• cooling ducts placed in the in trailer or mobile home ceiling (better cooling in South); [The duct location may tip off the wind zone rating intended for the mobile home unit being inspected.]

Common Defects

• floor ducts often damaged; registers blocked or covered by carpeting

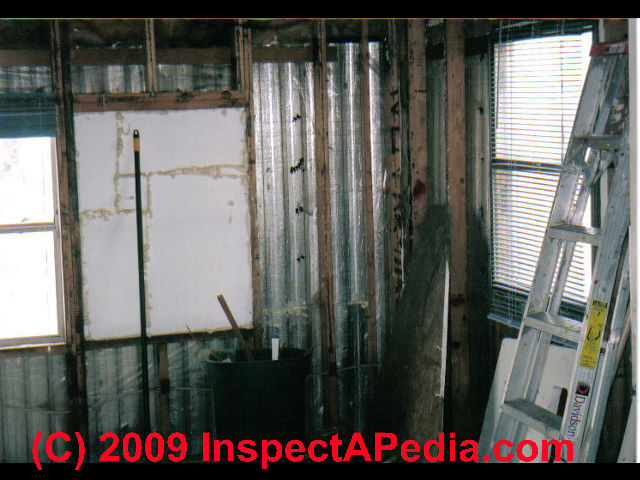

MOBILE HOME and TRAILER INSULATION and Ventilation Defects

• Crawl space area ventilation below mobile homes : sq ft/150 = min area and must cross vent on at least 2 sides;
• PVC plastic vapor barrier placed on soil below the mobile home is recommended to hold down moisture;
• Attic venting (sloped shingled roofs) - often omitted, shorter shingle life, voids warranty, etc.
• Attic venting (often none or just a few spot vents in flat roofs) - condensation, leaks, related damage.
• Check dryer vent routing and materials for fire hazards (blocked overheats dryer; or may collect water)
