How to Inspect Mobile Homes or Manufactured Housing for Plumbing System Defects: detailed procedures, defect lists, references to standards for mobile homes, trailers, double-wide home plumbing water supply & drain piping and oil or gas fuel piping. Mobile home septic systems are also addressed.

Ver.3.5 - 04/25/07, updated through 2011 - Steve Vermilye, New Paltz NY and Daniel Friedman, Poughkeepsie NY, Hudson Valley ASHI Chapter Seminar, Newburgh NY, January 4, 2000, NY Metro ASHI Fall 99 Seminar, Holiday Inn Crowne Plaza, White Plains NY, October 2, 1999. Our page top photo shows our associated Steve Vermilye inspecting an on-ground, tipping, heating oil tank at a mobile home occupied by farm workers in Ulster County, N.Y.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

MOBILE HOME PLUMBING Defects

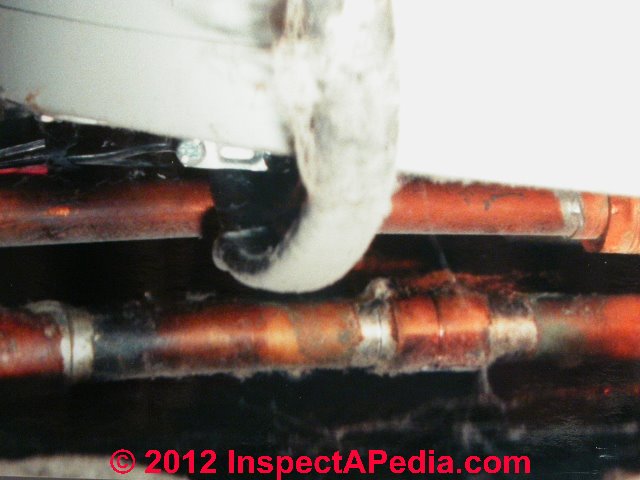

SUPPLY PIPING - Mobile Home Supply Piping Defects and Plastic or polybutylene water supply piping failures, leaks, and litigation

Freeze Protection Suggestions for Mobile Homes, Double-Wides and Trailers:

• Note on use of heat tapes on plumbing or oil piping: The US CPSC recommends that heat tapes be connected to a GFCI-protected electrical receptacle (or on newer wired-installations AFCI circuits) for fire safety but HUD rules do not allow connection of the heat tape to GFCI because they don't want to risk frost damage: so note conflict between frost damage and life-safety concerns. Heat tapes used on exposed plumbing at extra risk of freezing, e.g. below the units.
• If mobile home supply piping has frozen, burst, and leaked into the structure, you'll need to remove and discard any wet insulation - or else face a mold problem.
• Simply adding insulation, in any amount is by itself unlikely to be sufficient to protect a mobile home from freezing if it's left unattended with heat off. Rather people design the plumbing to be drained when the home is left.
• If the trailer or mobile the home is occupied then you'll need to look carefully at supply pipe routing and maybe even add heat in some areas. We dislike heat tapes - as they can be unreliable and possible fire hazards, but they can work in some cases.

  High-quality plumbing pipe heating tapes that can be crossed over one another without melting and shorting out (fire hazard) are available. Of course if the home loses electrical power this solution won't help much. To reduce the mobile home fire risk when using heat tapes, use metal-braid shielded heating cables connected to a GFCI protected electrical outlet so that if the heating tapes short out the circuit will trip.

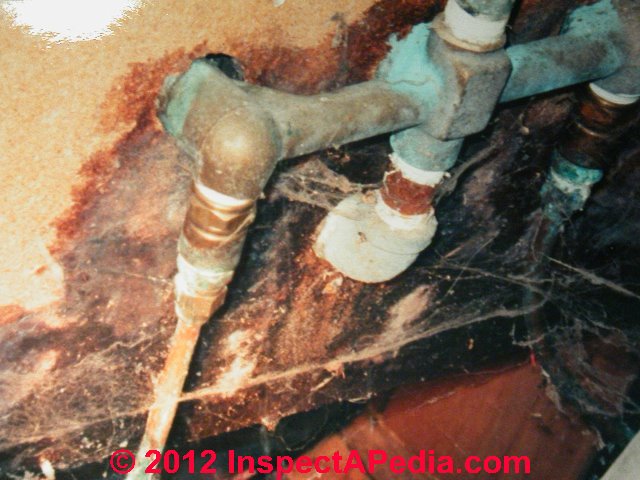

• Trailer & mobile home water entry lines are often exposed to freezing below the unit - (photos above left and right).
• If the mobile home water supply is provided by a pump and the pump is found to have cracked (and the home is located in a climate where freezing weather occurs, pump cracking probably means it froze and was not drained or protected from freezing.
• If mobile home drains are freezing the same frost protection or heating concerns need to be addressed as we've just listed.
• Open drains or leaky connections (crawl)
• Leaky supply main (crawl)

DRAIN WASTE VENT - Mobile Home & Trailer Drain Waste Vent Piping Defects

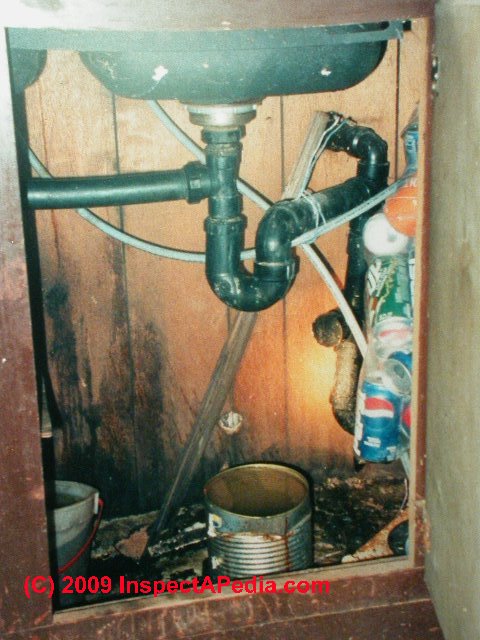

• leaky traps rot walls and floors faster than conventional construction especially where OSB or chipboard was used for subfloor material in the mobile home or trailer
• Drains added (added laundry or bath) not under unit or ? (photo at above left shows a laundry drain spilling onto the yard surface by the mobile home)

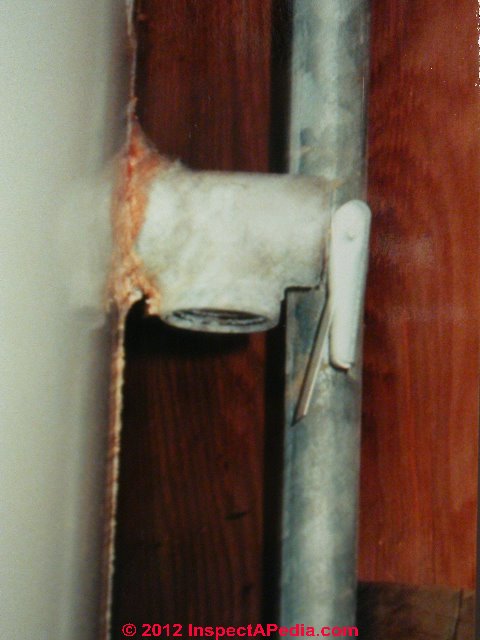

MOBILE HOME & TRAILER or DOUBLE-Wide Heating FUEL SUPPLY Defects & Concerns, gas and oil piping

Mobile home oil tank defects, problems, repairs

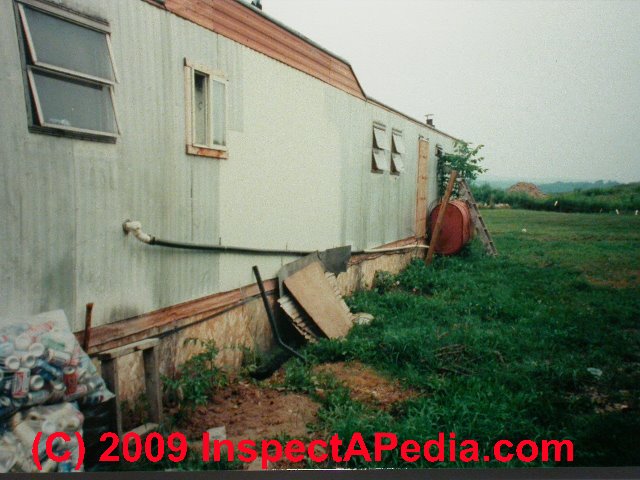

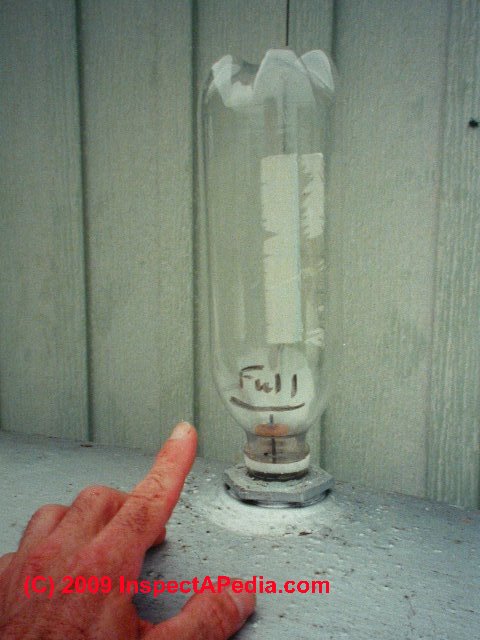

Oil tank support (often falling or in ground-contact) see our photo at page top Oil tank gauges and fill and vent piping - exposed to water entry from roof spillage or, as in our photo, from a makeshift repair to a fuel gage or other tank connection

WATER HEATER Defects in Mobile Homes, Trailers, Double-Wides

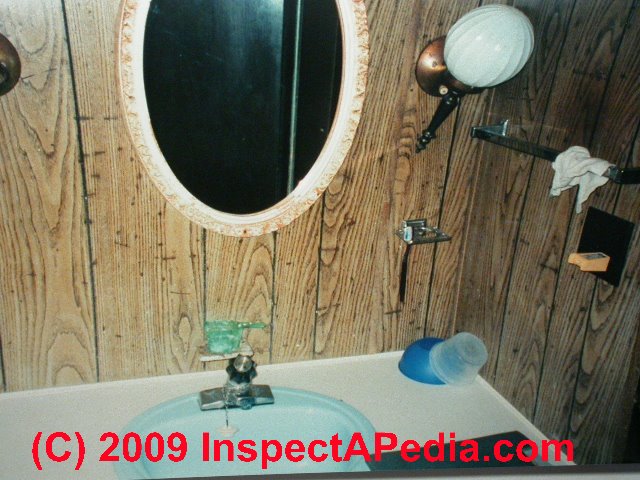

MOBILE HOME PLUMBING Fixture Defects

• Tubs: usual leaks at fittings; missing components,
• history of leaks and no maintenance;
• Fixtures or fixture drains damaged from freezing underneath the home in cold climates
