Mobile home pier (C) Daniel FriedmanHow to Inspect Mobile Home Structures - part 2, Piers, Stabilizers, Tie-downs, Multi-wide connections
InspectAPedia®  -

  • Mobile home structural inspection guide
  • Common mobile home structural defects: Piers, stabilizers and tie-down for mobile homes, trailers, double-wides, multi-wide connections
  • Safety and building codes for mobile homes, double-wides, and trailers, also some campers
Our site offers impartial, unbiased advice without conflicts of interest. We will block advertisements which we discover or readers inform us are associated with bad business practices, false-advertising, or junk science. Our contact info is at InspectAPedia.com/appointment.htm.

How to Inspect Mobile Homes or Manufactured Housing for Defects: detailed procedures, defect lists, references to standards. Ver.3.4 - 04/25/07 - Steve Vermilye, New Paltz NY and Daniel Friedman, Poughkeepsie NY, Hudson Valley ASHI Chapter Seminar, Newburgh NY, January 4, 2000, NY Metro ASHI Fall 99 Seminar, Holiday Inn Crowne Plaza, White Plains NY, October 2, 1999.

Use the links at page left to navigate this document or to go to Other Resources. The Green links show where you are in our document & website. © Copyright 2009 Daniel Friedman, New York State License # 16000005303 All Rights Reserved. Information Accuracy & Bias Pledge is at below-left.

MOBILE HOME PIERS - Mobile Home Pier Foundations

Abandoned mobile home (C) Daniel Friedman

  • slab preferred; assure good drainage away (risk undermined piers); (Floating or on frost footings ok)
  • missing or improper tie-downs against storm damage (Northridge disaster & in FL); tie-downs may be driven or screwed into ground; cables must be taut.
  • improper masonry piers-blocks on sides, stacked debris, removed chassis, water-undermined piers; footings/piers often not below frost line; reinforced floating slab may work ok;
  • piers at excessive intervals (more than 6-8 feet and/or closer than 3 ft. to the ends of the home)
  • piers missing at large sidewall openings (sliders) or at tip-outs or expanded units or under fireplaces.
  • masonry piers: properly-stacked blocks, hardwood or treated wood or concrete cap, shims; piers sit on 16"x16"x4" concrete pad, pre cast or poured in place, or 12" x 20" treated wood;
  • Piers less than 36" high can be single-stacked 8x8x16" block with the long 16" dimension perpendicular to the frame;
  • Piers 36" to 80" high and all corner piers of more than 3 blocks high shall be double-blocked with interlocking alternating courses and capped with 5x16x16 solid concrete block or equivalent;
  • Piers more than 80" high must be double blocked, alternating courses, laid in mortar and steel reinforcing rods set in block cells and cells filled with concrete.

Mobile home piers and shims (C) Daniel Friedman

  • NO more than 4" of wood in space between pier and frame; No more than 1" thick shims and must be tight;
  • Metal stands (jacks) on soil surface likely to shift/tip/settle; Steel piers should be on concrete soil pads/footings;
  • Settlement: may show up as hard-to-operate windows/doors;
  • Our photo (left) shows sloppy pier and shim installation, set on soft soil, tipping. It is important to take a look under a mobile home or trailer you're thinking of buying. Those hard-to-get-in spots often contain costly surprises.

Mobile home still on wheels (C) Daniel FriedmanSTABILIZING SYSTEMS - Tie Downs for Mobile Homes

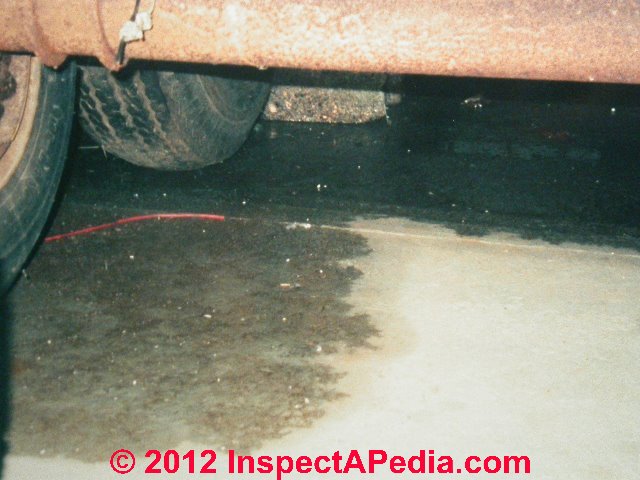

Our photo at left shows that although this trailer has been placed on a concrete slab foundation, it still rests on its wheels and on temporary jack stands. No piers, no tie-downs, no permanent support was provided.

DEFINITIONS:

  • Stabilizing Devices: all components of the anchoring & support systems
  • Support System: combination of footings, piers, caps, shims that support the home
  • Anchoring System: system to resist overturning and lateral movement
  • Anchoring Equipment: combination of straps, cables, turnbuckles, chains and tensioning devices.
  • Anchor: device secured in the ground (Screw or other)

Mobile home on blocks (C) Daniel Friedman

  • This mobile home frame (photo at left) has been set on dry-laid concrete blocks, with plywood shims. But the blocks rest directly on soil. This is not a reliable support system and may not be permitted by local building codes. The tie-down cables are in place but we could not find that their free end was connected to anything.
  • Tie down materials for mobile homes, trailers, double-wides: cable, chain, strap and tensioning device;
  • Diagonal tie downs for mobile homes, or frame straps, at 45 deg. angle attach to main frame at one end and to ground at other to resist lateral movement; Ground anchor should be about at same angle as the strap;
  • Tie downs for mobile homes may be vertical;
  • Diagonal tie downs for double-wide units are required only at outside rails of each unit; Vertical straps or ground straps resist uplift and overturn, required only for hurricane or wind zones;
  • The number and placement of tie downs for mobile homes and trailers depends on the wind zone in which the home is located and the length of the structure. For example, a 65' trailer would need 2 to 3 vertical tie downs per side, or 4 to 6 tie downs per side if diagonal tie downs are used, depending on which wind zone it's in.
  • Connection requirements for mobile home and trailer tie downs: the mobile home tie down is connected to the steel I-beam at specific locations provided by the manufacturer; typically strap wraps around the I-beam.

Tie downs for mobile homes, trailers, double-wides are usually expected to be placed and connected according to details provided in the mobile home installation manual (have you ever seen one?). If you know your mobile home or trailer model name and perhaps serial number, you may be able to contact the mobile home manufacturer to ask for an installation manual.

Links to more detailed mobile home or trailer tie-down installation specifications, methods, and advice can be found at Structural Advice.

MULTI-WIDE CONNECTIONS - Multi-Wide Mobile Home unit connections:

  • lag screws or through bolts at adjacent mate beams, especially important if the manufacturer has support columns under only half of the home;
  • hinged roof connections require that king posts be site-installed and metal uplift straps secured to the mate lien wall and roof assembly once the hinged roof is up;

[ See DRAWINGS from the NYS book]
