This article discusses in detail How to Evaluate and Diagnose Movement or settlement in pier or piling foundations supporting buildings. Illustrations compare friction piers and bearing piles, types of pier/pile foundation settlement, and we discuss the role of constructing on fill or on clay soils in pier or pile performance in supporting a structure.

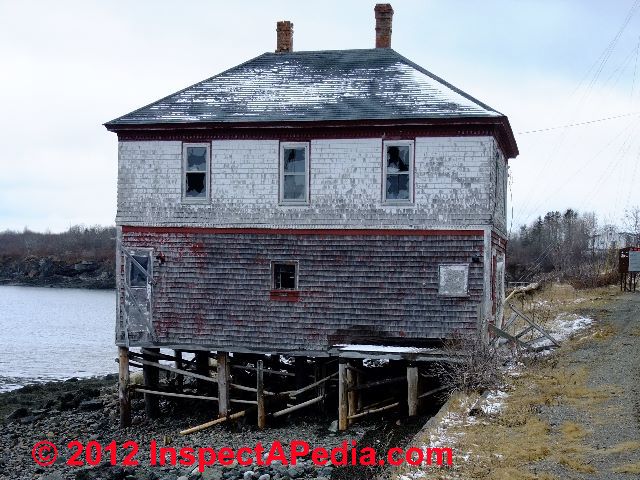

Pier or Pile Foundation settlement, movement, diagnosis & repair suggestions

Also see FOUNDATION CRACK EVALUATION for a discussion of the diagnosis of specific crack patterns in masonry foundations, and see FOUNDATION BULGE or LEAN MEASUREMENTS which explains a simple method for determining how much bulge or lean is present in a foundation or wall, then see FOUNDATION MOVEMENT ACTIVE vs. STATIC which helps determine if the foundation movement is ongoing, and see FOUNDATION DAMAGE SEVERITY for a discussion of just how much foundation movement is likely to be a concern.

To be used properly, this information must be combined with specific on-site observations at the particular building in order to form a reliable opinion about the condition of that building's foundation. Anyone having concern regarding the structural stability, safety, or damage of a building, foundation or other components, should consult a qualified expert. Photographs of types of foundation cracks and other foundation damage: we have a large library of photographs which we're in process of adding to this document. Pending completion of that work, contact the author if assistance is required.

Question about pier settlement in a New Mexico Home

I have an adobe home built in 1995. Each adobe is 10 3/4'' wide and lying on a 24'' wide X 24'' deep foundation built on soil in New Mexico with some clay.

House dirt pad was built up on original earth and 13 cement pillars were poured along the raised portion of earth. The house is 33' X 83'. Just recently the entire north portion of the house (83') has developed a crack along the tile floor and plaster wall.

The most noticeable part of this 'shift' seems to be more toward the end of the house that sits on the pillared foundation.

The bathroom wall is about half way along this wall and the sewer line sits under this portion of the house. There is a subtle but noticeable odor in this area and the tile has separated from the wall about 1''.

What is happening and how do I fix it? The doors and windows are not opening smoothly and the wall appears to be cracking at an alarming rate. I have homeowners insurance. Thanks, - L.C.

Reply: foundation diagnosis and repair suggestions for settling piers

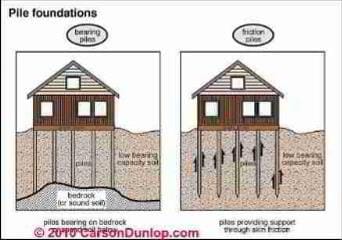

Our sketch at above left provided courtesy of Carson Dunlop Associates explains the difference between bearing piles (above left), and friction piles (above right). If your home is supported by either pile type and the piles were not properly installed, you can expect differential settlement, ongoing movement, and the crack pattern you describe. Below we discuss the details.

A competent onsite inspection by an expert usually finds additional clues that help accurately diagnose a problem. That said, here are some things to consider:

Your observation that a settlement crack is appearing in both the "tile floor and plaster wall" indeed suggests foundation settlement.
Your comment about movement pointing "toward the end of the house that sits on the pillared foundation" combined with this being a modern home built in 1995 suggests that the home or part of it is supported by piers rather than a continuous footing.
If one or more piers is settling due to inadequate or improper construction you'd have the problem you describe.
Your observation that at least some of the supporting foundation may have been constructed on fill "House dirt pad was built up on original earth and 13 cement pillars were poured along the raised portion of earth. " is a red flag raised to question the possibility that the home was constructed on improperly or inadequately-compacted fill.
The observation that doors and windows are sticking also suggest ongoing structural settlement. I emphasize that no one can accurately diagnose a concern like this by emailed text. You need an onsite inspection by a competent expert.
The role of construction on fill and on clay soils will be critical in correctly diagnosing your building settlement, as Carson Dunlop's sketch (above) illustrates, and as we comment further just below.

I'd be a fool to pretend to diagnose building cracks by email, not to mention sight unseen.

What to Do Next About Structural Cracking and Pier Repairs

#1 don't panic so much that an opportunist takes advantage of your worry to do something costly that may be unnecessary, inappropriate, ineffective .

The significance of a crack depends on many factors (described in our article below) such as length, width, pattern, location, building materials involved, position, etc. For example, a vertical 1 mm crack in drywall alone is unlikely to be enough movement to alone threaten an immediate catastrophe.

In general the level of risk of serious foundation or structural movement (and risk of costly damage or even collapse) depends on the total amount of movement that has occurred, where it is, over what time it occurred, what is the underlying cause, and what are the effects on the structure. Significant amounts of movement or things found way out of level and plumb are of course a bigger concern as are signs that movement is ongoing, increasing, or rapid.
You would do well to have someone with experience with building movement, structural questions, and foundation inspection take a look. Beware: a structural engineer who is not really familiar with foundations or residential construction may have great credentials but may give crazy and expensive advice that is safe for her but expensive for you.

So before hiring anyone ask what is their experience with building cracks and movement. You could call a home inspector who has experience, a foundation repair contractor, even a general building contractor, as a starting point. At VERTICAL MOVEMENT IN FOUNDATIONS we discuss methods for evaluating vertical foundation movement.

You might ask your insurance company to take a look, as they may do so without charging you. Of course their "expert" may not be one, and the company will certainly exclude certain types of building problems that they assert fall outside the scope of coverage of your insurance policy.

Sketch at left provided courtesy of Carson Dunlop Associates.
Inadequately-compacted fill construction? if this is the foundation problem cause diagnosis, which would not be a surprise given your description, the repair may require replacing or supplementing the existing piers with ones that are driven to adequate depth or are otherwise adequately supported.
Expansive clay soils? include in the diagnosis of your foundation settlement the possible role played by the clay soils in your area.

Homes built on expansive clay soils may need to include special measures to avoid seasonal or even continuous foundation movement due to moisture changes in the clay soil supporting a foundation or pier.

If the explanation and repair advice you hear just doesn't make sense to you let me know what you were told and I can suggest some follow-up questions. And don't do anything expensive before you understand what's going on.

Repairs? Typically, a building supported by piers that has one or more settling piers or columns is repaired by a combination of adding temporary support and then by replacing or repairing the settling piers or column footings, or by adding one or more additional piers designed for foundation repair.

A.B. Chance and others produce helical piers or driven friction piers. Helical piers are screwed into the soil and used to jack, level, and permanently support a settling structure. That may be a repair option your onsite expert may suggest.
More foundation repair suggestions for vertical movement, including a discussion of the use of helical piers, is found at Vertical Foundation Movement Repairs
Please keep me posted on how things progress, and send along photos if you can. Such added details can help us understand what's happening and often permit some useful further comment. What we both learn may help me help someone else.
