Guide to Shrinkage Cracks in Poured Concrete Slabs
This article series discusses concrete cracking in slabs, walls, floors, and foundations, and describes the types of cracks that occur in poured ("placed concrete" by some experts) walls, slabs or floors and explains the risks associated with each, thus
assisting in deciding what types of repair may be needed.
This article series describes how to recognize and diagnose various types of foundation failure or damage, such as
foundation cracks, masonry foundation crack patterns, and moving, leaning, bulging, or bowing building foundation walls.
Types of foundation cracks, crack patterns, differences in the meaning of cracks in different foundation materials, site conditions, building history,
and other evidence of building movement and damage are described to
assist in recognizing foundation defects and to help the inspector separate cosmetic or low-risk conditions from
those likely to be important and potentially costly to repair.
Shrinkage cracks such as shown in our photograph above are found in poured concrete, are easily recognizable, and can be distinguished from other types of cracks that occur
later in the life of a foundation wall or floor slab - as we explain here.
The photograph of cracks above were taken of shrinkage cracks in a concrete slab floor in a home built in 2006.
The cracks in this case ranged in width (measured across the crack) from "hairline" (less than 1/16") to about
3/32" in the basement floor slab of this particular home. They may appear larger.
What is unique about shrinkage cracks in concrete is that they usually appear to be discontinuous, as shown in
this photo. The crack will meander along in the concrete, taper to a stop, and then continue beginning in a parallel
line to the first crack, meandering again through the concrete.
This is characteristic of concrete (or mud) shrinking
while giving up its moisture.
You can see the shrinkage of even a perfect concrete floor slab with no visible cracks in the field of its surface if the floor was poured inside of an existing
foundation. Look for the gap between the edges of the slab and the foundation wall? Look also for the stains or concrete debris on the
wall at the slab level? These confirm that at the time the slab was poured it was touching the wall.
|
Causes of variation in width of shrinkage cracks in poured concrete
Why do concrete shrinkage cracks vary in width across a wall or floor? Probably because
concrete shrinkage cracks are meandering or "wandering" in their path, and are usually intermittent or
interrupted in their course, as you can see in the photograph above.
As the path of cracking caused by concrete
shrinkage wanders and stops and starts across an area of wall or floor, you will often see overlapping or
roughly parallel nearby cracks that represent the end of one crack line and the beginning of another.
The total width of the two close-by cracks is probably about the same as the total crack width
where a crack wanders in solitary along the concrete. The stresses producing the crack have simply shifted
slightly in the wall or floor as it cured.
Why cracks appear to originate in poured concrete walls at windows or at outside corners in concrete floor slabs
Why do concrete shrinkage cracks often begin near the corner of a window, or in a floor near a
corner in the foundation footprint?
If you think of the entire reinforced concrete wall or floor as a
rather uniform membrane, any discontinuity in the membrane, such as an opening for a window or the
placement of a corner projecting into the room in the case of a floor, creates a variation
in the distribution of (shrinkage during curing) forces in the wall or floor.
Shrinkage cracks may
have their origin at these points of discontinuity.
|
What is the significance of differences in concrete height on opposite sides of a crack?
Why are some "shrinkage cracks" at different heights on either side of the crack?
The floor on one side of this 3/16" wide crack was about 3/32" higher than on the other. This may be due to settlement of the broken slab section on poorly-compacted fill in the building's basement.
Multiple forces and movements may be present as a poured concrete foundation cures, such as a combination of
shrinkage and settlement, or shrinkage and outside pressures on a wall from backfill. (It's best to let any
masonry wall cure before backfilling, though that's most critical with masonry block (CMU) walls where
early backfill before the first floor has been framed in place has been known to lead to a total collapse of the foundation.)
In a poured concrete wall or floor if the surface of the concrete on opposite sides of a crack are also at different
elevations, that is if the concrete on one side of a crack is higher than the other, additional forces have been
at work and the crack is not a simple shrinkage crack.
Repair cracks that make trip hazards: If the height difference across a floor crack is 1/8" or more it forms a tripping hazard and it should be repaired.
Do we need to repair shrinkage cracks in foundation walls or slabs?
Small shrinkage cracks that are above ground level in a foundation wall, such as the cracks
in the inside corner of this poured concrete foundation are unlikely to be much of a problem except for
a few less common cases where water running down the wall is leaking in at the shrinkage crack.
[Do you think that the crack shown here is an initial footing or foundation settlement crack? Maybe so.]
|

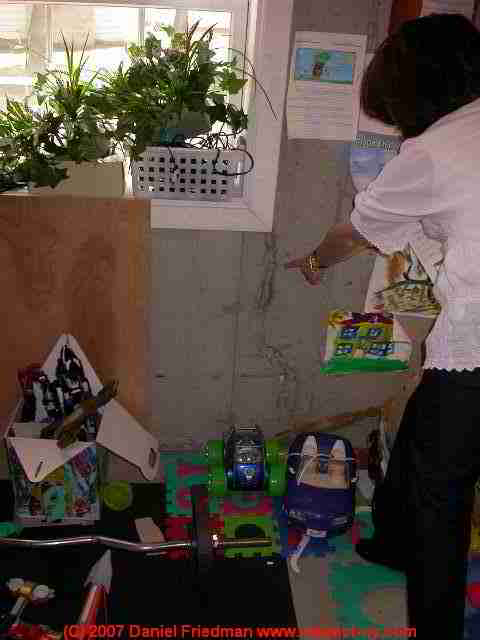

Shrinkage cracks in concrete walls or floor slabs that are leaking into the building interior such
as the one shown in this photograph, should be sealed.
However a careful inspection in this particular
case revealed that the window flashing and exterior siding had been installed so as to direct wind-blown
rain into a concentrated runoff pattern that [unfortunately] passed over and then through this
crack in the foundation wall. Some flashing and siding adjustments outside cured this problem.
Concrete cracks often occur at natural stress points where the uniformity of a poured concrete wall or
floor has been interrupted by placement of a window (in walls of course) or inside corners (in floors). You may
often find shrinkage cracks that trace across the concrete to these stress points.
|
Shrinkage cracks in a concrete slab or floor might need to be repaired to avoid water leakage from below
or to stop radon gas entering the building. In the photograph shown here the floor was badly cracked from a combination
of concrete shrinkage, settlement, and frost heaves (the building had been left un-heated in a freezing climate).
You
can see that lots of water was leaking into the basement up through the floor. In this case, while repairs to the basement
floor, or perhaps better, a new basement floor slab, were in order, the root cause of high water levels under the basement
floor needed to be addressed first. |
How are concrete wall, foundation, or floor slab shrinkage cracks avoided or repaired
While shrinkage in poured concrete walls or floor slabs is a normal property of curing concrete, shrinkage cracks
can be controlled, or where they have occurred, in some cases repairs are needed. In addition to
reading about repairing concrete shrinkage cracks (if crack repair is needed at all) at
Shrinkage Crack Repairs
also see how we prevent shrinkage cracks
in poured concrete floors and walls by reading Cracks at Control Joints in Concrete.
For detailed information about foundation repair methods, including repairs to various kinds of cracks in concrete, see:
Frequently Asked Questions (FAQs) about how to recognize shrinkage cracks in poured concrete floors or slabs.
...
