Frost Heaves or Expansive Soil Cracks in Poured Concrete Slabs

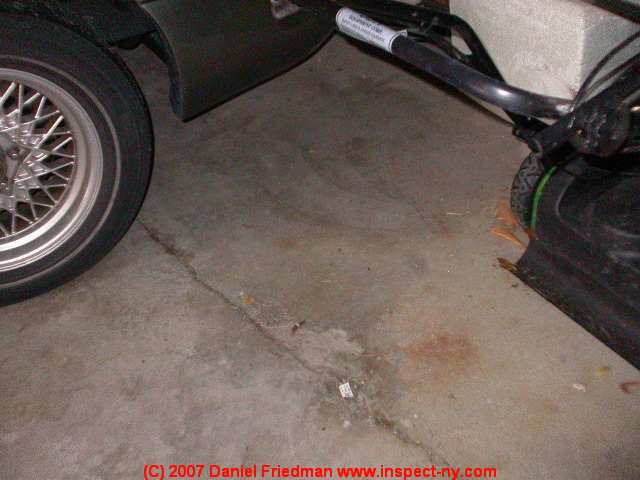

Frost heaves or expansive soils damage to building floor slabs can range from minor to extensive in buildings depending on soil and weather conditions, site preparation, and slab construction details, as we elaborate here. The photograph above shows a rather straight crack across a garage slab near the garage entry door. What is happening here and why is this particular crack straight if it's a frost or soil heave crack? In freezing climates building foundations include a footing which extends below the frost line. This is true for both the occupied space as well as garages. When a concrete slab is poured either abutting the top of such a foundation, or poured extending over the edges of such a foundation, there is risk of cracking across the concrete at the interior edge of the buried footing.

The combination of water under a garage floor (watch out for driveways and sites that slope towards the garage or home) and freezing can cause the portion of the slab which rests directly on the soil to move up and down during freeze/thaw cycles.

Since a garage is often colder near the garage entry door than in other areas, there is extra risk of these cracks occurring there, but they can occur anywhere. When there is freezing and heaving of a slab, particularly one which omitted reinforcing steel, or did not extend the steel over the footing, these garage floor slab cracks may appear during freeze/thaw cycles.

Similar floor slab damage might occur in areas of expansive clay soils if the proper moisture level is not maintained.

Basement floor heave patterns - frozen floor drains: Basement floors can be frost heaved in other patterns in buildings which are unheated or which lose heat. We have found basement floor slabs broken and heaved above buried drain lines which ran below the basement floor of a home which remained unheated during freezing weather. A clogged drain sitting full of liquid combined with prolonged freezing weather was the culprit in most of these cases. The heaved concrete was raised following exactly the path of the frozen (and burst) buried, clogged drain line. This problem can be epidemic in older homes which were constructed using a downspout drain line extending below the basement slab.
