This article describes the causes, evaluation, and repair of cracks at control joints in poured concrete slabs or floors.
This website describes how to recognize and diagnose various types of foundation failure or damage, such as
foundation cracks, masonry foundation crack patterns, and moving, leaning, bulging, or bowing building foundation walls.
Types of foundation cracks, crack patterns, differences in the meaning of cracks in different foundation materials, site conditions, building history,
and other evidence of building movement and damage are described to
assist in recognizing foundation defects and to help the inspector separate cosmetic or low-risk conditions from
those likely to be important and potentially costly to repair.
See SLAB CRACK EVALUATION. And although here we focus on control joints needed in poured concrete floor slabs and monolithic concrete foundations, control joints are also required in certain masonry walls, including brick walls and in some cases concrete block walls as well as poured concrete walls. See Brick Thermal Expansion Cracking.
How to Use & Inspect Control Joints in Poured Concrete Slabs
What is a concrete slab control joint & why do we need control joints in concrete?
Because concrete shrinks as it cures (about 1/16 inch for each 10 liner feet or by other sources, about .66 inches per 100 feet), and because there may also be some expansion and contraction of poured concrete in response to
temperature (about 0.25 inches per 100 feet per 25 degF temperature change, with a maximum of about 0.5" per 100 feet) and moisture changes in its environment, a large solid slab of poured concrete for a floor or slab is likely to crack.
Control joints, called "relief joints" by some builders and more loosely speaking, "expansion joints" by others, are built into a well-designed poured
concrete slab so that the occurrence of more random, ugly cracks is less likely.
Remember that concrete shrinkage itself is a normal process. If a pour and control joints are perfect, cracks caused by concrete shrinkage
will not be noticeable - they'll occur inside the control joints (as we show below), or if a slab shrinks perfectly with no internal cracks,
you'll see a gap opening around the perimeter of the slab where it abuts the foundation walls.
During the concrete curing process, a chemical process called hydration, concrete hardens, using some of the water molecules in its original content.
Concrete typically takes 28 days to reach its design strength; a considerable portion of concrete shrinkage is going to occur during this interval,
particularly during the first week or less. Even though the concrete's design strength is reached in about a month, concrete continues to harden
for days or weeks after that point too.
What do control joints or "expansion joints" look like?
The photograph at page top and the photo just above where Andy is walking away from the camera show expansion joints in a garage floor slab in Arizona. Even in a climate
where we do not anticipate freezing, control joints are needed to prevent random shrinkage cracks that would otherwise occur in a large
concrete floor slab pour like this one. Notice that we do
not see other cracks in this slab.
Control joints are likely to appear as straight lines at regular intervals across
a poured concrete slab (if they were used in the construction of the slab) such as we show in the sketch below, at the lines marked (G) at 4' intervals
or larger depending on the concrete materials and slab design used.
Shrinkage cracks that occur at control joints such as shown in the pair of close up concrete slab control joint crack photos here,
are occurring where they are supposed-to. The fine crack shown in the left-hand photo of a concrete slab control joint is normal - this crack
would have occurred in a random pattern instead of along the control joint if this floor slab (the same floor shown at the top of this page)
had been poured without any control joints.

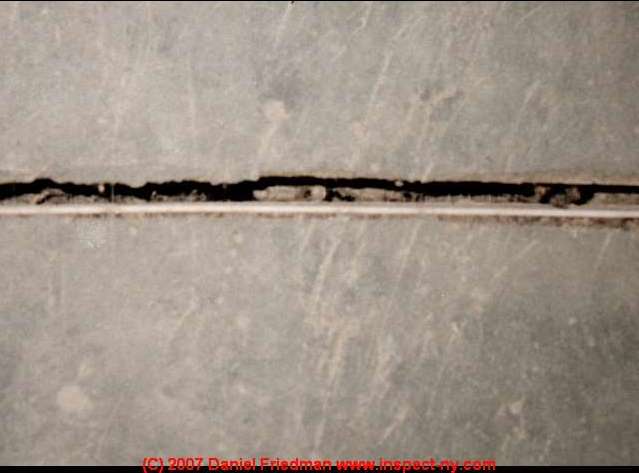

In a different building, the width of the control joint crack in the right-hand photo above was surprisingly large. These cracks are not normally a defect in the slab but may be
a source of water or radon gas entry into the building and may need to be sealed.
Frost Damage Can Cause Damage Exceeding the Capability of Concrete Control Joints
Uneven, heaved concrete: If if concrete surface of the floor or slab or sidewalk on either side of an apparent "shrinkage crack"
in a concrete surface is at two different heights, forces other than simple concrete shrinkage are at work. In this photo the outdoor slab
has been heaved by frost, probably exacerbated by wet soils and perhaps poor drainage below the poured concrete.
Notice the steel manhole in this photo. Our first guess was that a buried sewer drain became clogged, stopped, and frozen, causing
the ground (and concrete) to heave along the path of this pipe.
We sometimes find this concrete floor failure pattern in basements of homes built in freezing climates if
the home has been left un-heated during freezing winter.
If your
concrete slab or sidewalk cracks look like this, you should review the text at the following diagnostic articles:
The mason who is pouring a slab greater than twenty feet in any direction has to prepare the site for the pour, including
the provision of control joints in the slab when its concrete forms are being placed or else during the pour itself.
An individual control joint is made by inserting a flexible
material (plastic or in the old days, jute or strips of Homasote™) which is 1/4" to 1/2' in thickness (width) and which runs the length of the control
joint. The same material may be placed around the perimeter of a floating slab where it contacts the perimeter of an existing building foundation wall.
Similar control joints are often used where a concrete sidewalk abuts a building or other structure.
Methods for providing control joints in concrete slabs
Flexible joint inserts in poured concrete floors or slabs, using 1/4" to 1/2" thick flexible control joint material
V-tool trowel can be used to score a groove in the still flexible poured concrete floor or slab before it has fully hardened, creating a pre-defined
and straight "weakened" point in the slab which invites shrinkage cracks or other cracks to occur at that location. The depth of the "vee"
cut by this trowel is much less than the thickness of the concrete slab, running from about 3/16" to 1" in depth of cut.
Sawn control joints are cut into a cured and hard poured concrete slab (and into other masonry surfaces) after the concrete (or other masonry)
has hardened. We've recommended this approach (along with other repairs) where we found destructive thermal expansion of large brick masonry walls that were
constructed without expansion joints. Sawn control joints are normally filled or partly filled with a special caulk or masonry sealer
(described below).
The page top photograph above shows an outdoor poured concrete slab that had control joints or something that looked like them. Even the best control joints
were no match for having poured this concrete over episodically wet, frost-heaving soil.
Only by providing excellent drainage would the cracking
and heaving visible in this photo have been avoided.
How deep and wide should a concrete control joint be? At what intervals should we place control joints in concrete slabs?
The width of a concrete slab control joint is the same as the control joint insert (1/4' to 1/2" in width) or of the vee-trowel (about 3/8" wide), or
of the saw blade used to make the cut after the concrete has hardened - typically about 1/8". In concrete roof slabs using lightweight concrete such as Perlite(R), control joints
may be specified at a much wider thickness of 1" around roof penetrations like stairways and skylights.
This is because a rooftop is
exposed to wider temperature swings than indoor building areas such as a basement floor slab.
The depth of a concrete slab control joint should be equal to one fourth of the thickness of the slab, or deeper. So a six inch thick poured
concrete floor would use control joints of about 1.5" in depth. You'll notice that this is deeper than the depth provided by the "vee trowel" discussed
above. A vee trowel is more commonly used to make pseudo-control joints in concrete sidewalks.
The spacing interval for control joints in a slab
varies depending on the kind of slab (monolithic slab foundation, floating slab floor inside an existing foundation, sidewalk, vehicle pavement),
the dimensions of the slab, the kind of concrete being poured (perhaps containing crack-resisting fibers), and the presence of other reinforcing
materials (steel re-bar or steel mesh).
Do Cracks Ever Occur Out of the Control Joints in Poured Concrete?
Cracks in poured concrete can indeed occur out of a control joint. Reasons for this bad behavior might include deficiencies in the concrete
mix or curing conditions that cause shrinkage forces to occur in locations between control joints and in spite of them.
An example is shown
in this photograph of a small (and insignificant) concrete shrinkage crack that occurred at the intersection of several control joints in
a floor slab.
Perhaps the worker did not cut the control joints deep enough in this location where we see the intersection of four
control joints, or other forces may have been at work.
Still, at the end of the day, you can expect far less cosmetic or other
more problematic cracks in a poured slab if control joints are installed at the proper interval and proper depth.
Are Control Joints Absolutely Necessary in Poured Concrete Slabs?
Strictly speaking, perhaps not. Some builders and masonry contractors use concrete which contains reinforcing fibers or other additives intended to reduce slab cracking, and indeed
to be fair, we've inspected some large slabs that had no control joints, and in which we did not see shrinkage cracking.
But based on having inspected
quite a few pours with and without anti-cracking-additives, our opinion remains that best practice
is to always include properly-spaced and properly-designed control joints in a slab or concrete floor concrete pour in residential buildings.
