This article describes how to distinguish frost heave cracking from settlement cracking in concrete slabs - a division of our article on How to Identify and Evaluate Settlement Cracks in Slabs in Poured Concrete Slabs or in concrete floors in basements, crawl spaces, or garages.
This website describes how to recognize and diagnose various types of foundation failure or damage, such as
foundation cracks, masonry foundation crack patterns, and moving, leaning, bulging, or bowing building foundation walls.
Types of foundation cracks, crack patterns, differences in the meaning of cracks in different foundation materials, site conditions, building history,
and other evidence of building movement and damage are described to
assist in recognizing foundation defects and to help the inspector separate cosmetic or low-risk conditions from
those likely to be important and potentially costly to repair.
Concrete Slab Settlement Cracks Compared with Frost Heaves in Poured Concrete Slabs
Where cracks appear in slabs in homes built in freezing climates, it can be difficult to distinguish between frost heaves and settlement since both types of movement can cause similar cracking in a slab or foundation.
Our photo (left) shows frost-heaved poured concrete, in this case located outdoors. But these conditions can occur indoors too if heat is lost to a building, and especially if there is water, moisture, or a clogged drain line below a basement or floor slab.
We often find frost heaves too at garage floors near the garage door.
Clues suggesting settlement cracks in a concrete slab
Evidence of probable backfill or infill defects below a poured concrete slab: significant cracks in a garage floor slab that are not near nor tracking the footing across the garage entry, especially where the level of the garage floor is well above outside grade - fill was needed inside the garage foundation.
Evidence of extensive poured concrete slab settlement such as noting that the level of the top of the slab is below a concrete trace line along the foundation walls where the top was located when the slab was originally poured is clear evidence of slab settlement.
[We regret we have not photographed this condition though it is quite obvious - if any readers have photographed this condition please let us know.]
Clues suggesting frost heaved cracks in a concrete slab
Frost heave cracking is likely to be cyclical unless the building has gone through less than one cycle of seasons.
Frost heave cracking can often be reasonably postulated as a cause or main factor in slab
cracking if the inspector can identify site conditions that make it likely that there has been water around
and under the foundation or slab, and that freezing conditions have occurred.
Evidence of cyclical movement in poured concrete foundations and slabs such as crumbling broken edges of cracked sections may suggest recurrent movement.
Evidence of a history of site or building water entry or poor site drainage may suggest (in areas of freezing climates) frost heaved damage to a poured concrete floor slab.
Absence of evidence of backfill or site fill problems at a poured concrete structure: a garage slab poured at grade and cracked across its width near the entry is more likely due to frost heaves. But remember this basic principle of diagnostics: absence of evidence is not evidence of absence. It may be inconclusive.
Photos of Frost Heave Cracked Basement Slabs in Older Homes
A classic example of slab cracking due to frost heaving can be seen in some older homes (1885-1935) in which roof drainage was routed
from gutters down into the home to a drain that ran under the basement floor slab and thence out to
a storm drain in the street (urban houses).
Our photo (left) shows a frost heaved and cracked basement floor slab in a New York Home. A combination of loss of heat and lots of water below the slab caused the cracking around the Lally column and in other basement locations. In this case the floor (and the Lally column that was sitting on the concrete floor, not on its own independent pier) heaved upwards.

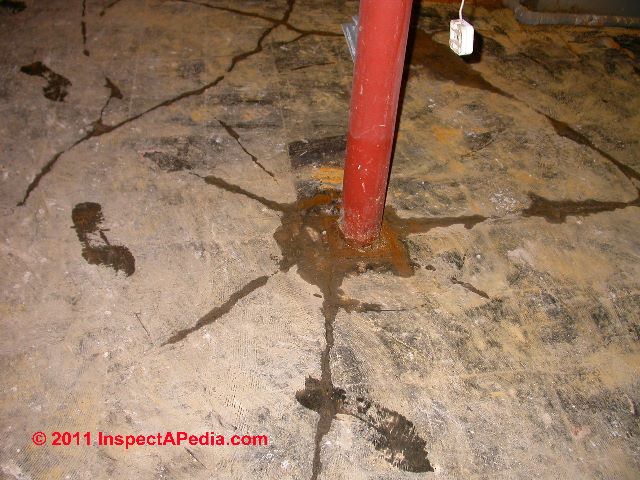

Watch out: you might see similar crack patterns around a Lally column that is settling due to a missing or inadequate pier. It's simple: is the floor heaved upwards (convex) or has it settled (concave). Or is it cyclical, heaving up and down as water levels and winter temperatures vary?
In such homes you may find that the basement floor slab is
seriously broken up and heaved, some sections pushed several inches into the air, along either side of a
rather straight line which tracks exactly the route of one of these buried drains. [We regret we didn't take photos of
this - if any readers have photographed this condition please let us know.]
