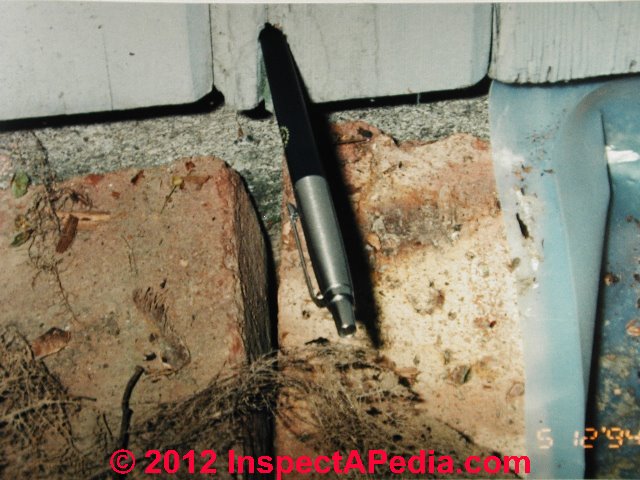

Termites in sill plates © Daniel Friedman at InspectApedia.com Structural Wood Damage Probing

Wood damage assessment in buildings:

How to assess the extent of structural damage from wood destroying insects.

Wood structural member assessment for rot, insect or fire damageThis article describes methods for inspecting, probing, and otherwise assessing wood structures and wood components (floors, trim, sheathing) for damage by insects or rot.

We describe when, where, & how to inspect & probe wood components on buildings when damage (carpenter bees, carpenter ants, termites, powder post beetles, fungal damage, rot damage) is seen, known, or suspected.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.

How to assess the extent of structural damage from wood destroying insects

Collapsing barn © Daniel Friedman at InspectApedia.com

[Click to enlarge any image]

Article Contents

Assessing the extent of structural damage to wood framing members in a conventional building inspection involves the following phases and procedures:

powder post beetle damage © Daniel Friedman at InspectApedia.com

Visual inspection to locate evidence of insect damage or structural rot

Watch out: Don't assume only one kind of insect damage will be present as the same conditions that invite one insect into a wood structure may invite others. We have found termite damage, carpenter ant activity, and powder post beetle damage all in the same structure, on occasion even in the same wood beam or joist.

Our photo (above right) illustrates wood rot found in the same floor joist where there was extensive termite damage.

Selection & use of probing tools to test wood components for insect damage or rot

Using an appropriately-chosen instrument (see below) probe suspect or visibly damaged wood beams, joists, rim joists, sill plates, even flooring or subflooring; we start this step in basements and crawl spaces but may find evidence to justify probing finished materials such as interior trim or wood floors.

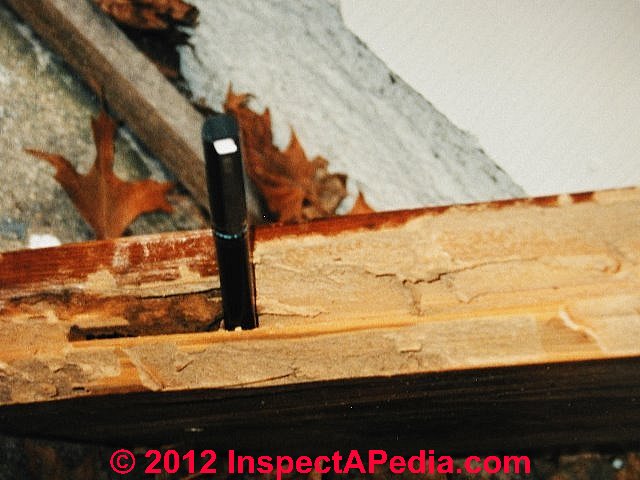

Wood probe using screwdriver © Daniel Friedman at InspectApedia.com

Professionals use a wide variety of wood probing instruments of different end-diameters, sharpness, and, importantly, length, as it can be difficult to reach some surfaces that really should be examined. Our photo (above left) illustrates using a simple screwdriver, (my dad's), to probe an area of visible termite damage.

powder post beetle damage © Daniel Friedman at InspectApedia.com

And above our pen is probing suspected rot damage at wood siding.

An example of probing a finished hardwood floor is

at TERMITE INSPECTION & DAMAGE.

Watch out: building inspectors and PCOs should never probe nor use destructive inspection methods without permission of the building owner. Make certain that you have explained the justification for any inspection techniques that involve risk of damage, even just cosmetic damage to the structure. However, in our OPINION, if your finger or pen easily penetrate insect or rot damaged trim, flooring, or other indoor finished surfaces, you have not caused actional damage to that component; rather, you have disclosed it.

We arbitrated an ugly case in which a novice home inspector left screwdriver blade jam marks throughout the finished area of a new home. Don't do that.

The depth to which a wood probing instrument will penetrate wood depends on these factors

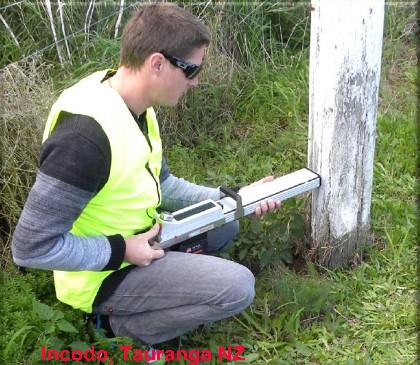

Micro Drilling in-situ timber test - Incodo, Tauranga New Zealand powder post beetle damage © Daniel Friedman at InspectApedia.com Termites in sill plates © Daniel Friedman at InspectApedia.com

Examples of probing wood for structural damage

Clearly the ground-off ice pick wood probe (below right) is finding less-severe damage than the "to the hilt" stab of my dad's screwdriver demonstrated by our client (below left).

powder post beetle damage © Daniel Friedman at InspectApedia.com

Watch out: while we advise against unwarranted cosmetic damage at a building interior, strategic probing of wood sills, rim joists, or floor structures (or other wood members) can disclose severe structural damage that was otherwise not evident.

Powder post beetle old house borere damage photographs (C) D Friedman D Grudzinski

Below we illustrate an appropriate use of our fine wood damage probe in an area of suspected cover-up of a termite damaged oak floor framed at ground level with no other access below.

Even our pen was able to easily puncture this termite-damaged joist that had been "cosmetically-repaired" using wood putty

Termite damage case © Daniel Friedman at InspectApedia.com

When observing the termite damage at below right, probing adjacent wood members as well as along the length of the visibly attacked members is completely appropriate. This termite damaged floor that was "repaired" with wood putty is described in detail

at TERMITE DAMAGE PROBING.

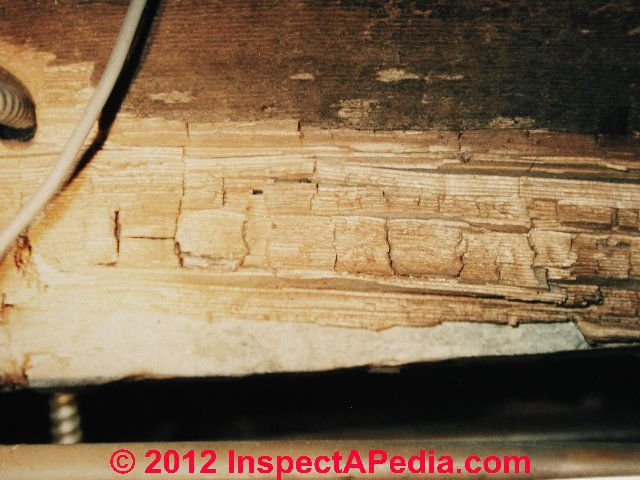

Photograph of  termite damage to the floor structure of a 1920's home.

And at below left our termite damage photograph illustrates a serious risk: this floor joist looked "perfect" from its exterior, but probing disclosed that it was severely damaged - basically a "hollow skin" of wood.

The light colored marks at the upper edge of the joist (and suspected termite activity from other site clues) led us to probe this joist bottom where it rested on the sill plate. Leverng the screwdriver disclosed the damage our photo illustrates.

Photograph of  termite damage to the floor structure of a 1920's home.

Below, my pen, with its cap on, easily penetrated this severly-rotted joist end.

Carpenter Ant Damage © Daniel Friedman at InspectApedia.com

Demolition or removal of materials for further inspection for WDI damage: when is it justified?

Demolition or removal of materials for further inspection for insect damage may be justified and necessary. Usually powder post beetles have attacked wood beams, typically rough cut lumber or round "trees" used as joists or beams or sills in older homes. We don't usually need to remove flooring or siding to access and assess such damage, but there are cases where it may be needed.

Buckled siding at ground level indicates sill crushing © Daniel Friedman at InspectApedia.com

Further inspection from outside is usually justified. Even siding buckled atop a foundation wall above ground may indicate a risk of crushing sills that merits further investigation such as our cement asbestos siding photo (below).

Photograph of - damaged vinyl siding

Poria house eating fungus

Also see the FEAR-O-METER a promotion theory to convert risk of hidden defects & hazards into action thresholds, for a discussion of how an accumulation of inspection evidence leads to a rational decision to perform invasive or desctructive inspection measures.

Meruliporia poria house eating fungus






ADVERTISEMENT





Reader Comments, Questions & Answers About The Article Above

Below you will find questions and answers previously posted on this page at its page bottom reader comment box.

Reader Q&A - also see RECOMMENDED ARTICLES & FAQs

On 2020-11-19 - by (mod) -

Katy

You can look yourself for signs of building movement - crushed supporting joists or beams, plaster cracks, sagging floors, etc. but a normal homeowner won't have the experienced eye of someone who is trained and experienced in this topic.

You may want an experienced home inspector, builder, or wood destroying insect inspector to make a thorough survey of the home, mapping the extent of insect damage (and rot) to the structure and giving you an outline of the stability and safety of the building and of the priority of repairs as well as, of course, telling you if there's evidence of active infestation that needs treatment.

On 2020-11-19 by Katy Guzek

I'm concerned about carpenter ant damage done on our wood beam foundation in our 1840 built home. Not sure where to begin... Some time f the beams sound hollow when I knock on them

On 2020-09-09 - by (mod) -

A handyman who is skilled at finish trim carpentry

On 2020-09-08 by Anita

I had a painter that used masking tape to "protect" the doors etc inside but damaged the wood. What kind of professional can estimate the cost of the damage done to repair?

On 2019-01-02 - by (mod) -

Great question, Douglas.

I have OPINION but no authoritative source. There will be no acceptable authoritative source on "how deep to probe" wood beams since as I'll explain there is no single sensible number.

A structural engineer who specializes in wood construction probably has her own different view than mine given here.

The probing depth is a function of the softness of the wood and the type of probe used.

And some sense about where you probe and how.

Remember that we're looking for damage, not measuring wood density. In the crude approach, I used to use an ice pick but found it penetrating more easily into soft wood than I liked. In most of my photos of wood damage probing you'll see me using an old flat bladed screwdriver that was my dad's tool.

If using moderate force by hand pushing the screwdriver blade against a beam, if there is no detectable damage the blade won't do more than make a shallow mark on the wood.

If the blade penetrates the wood for a fraction of an inch there is surface damage - typical of powder post beetles or termites or carpenter ants - with the caveat that if you don't probe where the damage is you won't find the damage.

Just how deep into the wood the probe can go before we would condemn a beam or post depends on the overall size of the wooden member and its use and location and where the damage occurs.

An inch in to a 12" beam may be acceptable in some cases.

An inch into the the tenon of a mortise and tenon connection may be more dangerous and risk breaking the connection and collapse of the structure (I've seen this happen) depending on the thickness of the tenon in post and beam construction and its position an d location.

I hope you can see from these examples that some thought is needed and that any single numerical answer to "acceptable wood beam probing depth" would be nonsense.

For a more thoroughly engineered and sophisticated approach used in large structures, bridges, etc. that is far more scientific and quantitative, see Paul Probett's articles in the more-reading links above

WOOD BEAM FRACTOMETER TESTING
WOOD BEAM PILODYN TESTING
WOOD BEAM MICRO-DRILLING ASSESSMENT
WOOD BEAM MICRO-DRILLING PROCEDURES
WOOD BEAM MICRO-DRILLING EFFECTIVENESS

In this article series you'll also see a distinction between evaluating wood structures where probing can be sensible and useful, and probing wood trim, paneling, etc. in homes where cosmetic damage is an issue.

On 2019-01-01 by DouglasCardinale@comcast.net

What is the probing depth of damaged wood beams

On 2017-12-27 by (mod) - I had a real estate agent hire a home inspector to inspect my home.

Red

Well that's a new inspection "method" for me.

I speculate that the inspector has been chastised for causing cosmetic damage by probing wooden structural members and is looking for a method that doesn't upset a referring realtor. Then she or he whacked too hard with the hammer causing dings.

There is not a shred of authoritative information I have found that says that hammering on wood is an "industry standard".

OPINION: In fact the "professional standard" (people who call home inspection an industry are telling you something about their point of view) for inspecting wood structures for damage specifies

1. visual inspection for evidence of damage (insect holes, mud tubes, crushing, cracking, bending, sagging, prior insect treatment for termites, carpenter ants, carpetner bees)

2. probing using a suitable probe (ranges from an ice pick to a screwdriver) in areas where damage is suspected

The issue of causing cosmetic damage to exposed wood in the finished, occupied space of a building (as opposed to a basement or crawl area where probe marks cause cosmetic damage not considered significant) is one familiar to any home inspector who has ever attended a professional conference or education classes on home inspection issues.

So we would criticize an inspector who punched awl holes or screwdriver blade marks or hammer dings in the surface of exposed finished area paneling, beams, moldings, etc.

But in an un -finished area that's not the case.

I can't say whether or not I agree that there was a genuine justification for spending thousands of dollars on this concern. In particular, ordinary wood framing such as 2x10 floor joists in an un-finished basement are not finish materials and should not be considered as having been damaged by hammer dings sufficiently to require replacement.

I know you agree in part with this view as you characterize the damage as superficial and cosmetic.

Many an experienced home inspector has come across tool marks made by inspectors who were in the building previously and who checked framing members. When I see those I am more-confident that others have looked with care at the structure.

On 2017-12-27 by Red - inspection caused almost $2,000.00 of damage to my home

I had a real estate agent hire a home inspector to inspect my home. The inspector used a process of sharply striking the wooden beams and floor joist with a hammer to evaluate moisture damage. This process resulted in damage to floor joists and main beams. The damage was superficial and cosmetic.

But required replacement because any potential buyer would be concerned. When I had the home inspection franchise owner and the inspector over to my home to discuss the damage.

They attempted to convince me that sharply striking the wood was industry standard and the owner lectured me on WDI and how they were experts in their field.

There inspection caused almost $2,000.00 of damage to my home. I feel that both the real estate agent and home inspectors are responsible for an unprofessional inspection.
Your thoughts??

Question: can you tell from these photographs if this is mold or "dry rot"? Our surveyor says the beam needs to be replaced.

Wood rot from leakage in a London home (C) InspectApedia JGI have found your website most useful, and am emailing to ask your opinion (just from photos as am in the UK) with regards to suspect material on a timber beam.

I appreciate you charge for consultations and I am happy to make a donation to your website if helpful.

I like in a top floor apartment in an 1850s terrace brick property in London.

We had a leak in the Spring in the roof which damaged the front wall.

There are some exposed beams (although covered in plaster), part of the plaster was damaged exposing the beams and I partially painted the gap 3 months ago, a few days ago I noticed odd black stains with black looking hairs sticking out of it (see photos).

For photos on your website it looks like brown mold (but more black in colour), our surveyor is assuming it is dry rot and the beam needs to be replaced.

While it is hard for you to judge from photos, in your personal opinion what do think it is?

Thanks so much for your help - J.G. 1/4/2014, London

Wood rot from leakage in a London home (C) InspectApedia JG

Reply:

A competent onsite inspection by an expert usually finds additional clues that would permit a more accurate, complete, and authoritative answer than we can give by email alone.

For example, to assess the scope of damage in the building you are describing one would want to trace the location(s) and extent of leaks and to perform appropriate probing tests to assess the depth & extent of actual structural damage to the beams involved.  While manual probing is usually sufficient, there are also more sophisticated tools available.

Wood rot from leakage in a London home (C) InspectApedia JG

See details at STRUCTURAL DAMAGE PROBING

and at WOOD STRUCTURE ASSESSMENT

That said I offer these comments:

From your photograph there is no doubt that there has been protracted leakage as the fungal growth that I see involve mycelia or "root-hair" -like structures characteristic of wood destroying fungi on wet wood. While mold growth can appear quite rapidly, when I see extended mycelial growth along with cracked wood characteristic of brown rot fungi it is reasonable to infer that the leakage in that area has been going on for some time.

At above left we see fungal mycelia on what looks like the back-side of a fragment of drywall.

At above right we see the same mycelia on the side of what is probably a wood beam - indicated in your first photo above. We also see "cracking" in the wood characteristic of wood rot, typically caused by a wood-rotting fungus in the Basidiomycete family but possibly involving other fungal genera/species such as Stemonitis sp. that I often find in buildings.

I'd need to see the fungus under the microscope to identify it - a step that is not necessary to decide on the need for structural repair except

where MERULIPORIA FUNGUS DAMAGE is involved.

As that fungus is a characteristic yellow-gold, I don't see evidence of it in your photographs.

"Dry rot" does not really mean that rot occurred with no moisture present, so use of the term can be misleading.

What we cannot assess from your photographs is the depth and extent of rot and thus the actual need for replacement of the structural members. Especially in older buildings where the depth of rot into large structural members is shallow, for example an inch or less in a 8x12 beam, generally experts will fix the leak and leave the beam in service.

Depending on the structure type, and with the caveat that I am not a structural engineer nor do I have the benefit of onsite view and exploration of your particular building, I caution that there can be special cases where structural repair could be more urgent.

For example, if the ends of wood beams set into a masonry structural wall are deteriorated, and particularly where angular fire cuts were made in the wood beam ends, should the beam end become rot deteriorated there could be a risk of structural collapse.

In sum, from the very limited visual access seen just in your photos, but noting the apparent age of leakage and evidence of wood rot, a more thorough investigation is needed to determine if structural repair is needed at all (other than leak repairs), and attention needs to be given to the collapse risk points and structural connections in the building.

Beware of the "OPM" problem - a consultant who spends other people's money to reduce his or her own risk beyond that justified by the actual site conditions.

Beware of the opposite concern - a consultant whose work is superficial and inadequate and who fails to adequately identify and assess actual risk of serious structural damage or hazards.

Reader follow-up:

Many thanks for your detailed and quick reply, it is immensely helpful and really appreciated. We have our original structural surveyor (from when we bought the property) returning next week but I note your comments re OPM...as his instinctive reaction from just looking at the photo was that it needs replacing with a steel beam.

We will get some more expert assessments on site so we can have a full view of what to do. I will keep you informed of our progress, - J.G. 1/4/2014

Reply:

The case you have described, of water intrusion detected at one end of a large wood timber in an older London home, is perhaps a perfect test case for Probett's approach to wood timber strength assessment described in the citation I include below.

Before tearing out an existing structural wood beam for replacement with a steel I-beam as your surveyor (in my opinion a bit too glibly) recommended, it would make sense to explore further the condition of the beam and its connections.

As my earlier email explained, in a large wood timber, a modest depth of surface rot damage may not be at all enough to merit timber replacement. As Mr. Probett's equipment and a knowledgable user are probably not available in London, you may be reduced to a more traditional but still reasonable timber assessment approach that includes

- removal of enough finish materials to form a confident opinion of the location(s) and extent(s) of and history of leakage that affected the beam in question .

- a visual inspection to find water or rot damaged wood

- mechanical probing to explore the depth of that damage

- a thoughtful assessment of extent of timber damage and thus compromise of its strength compared with the design loads involved

- careful attention in particular to points of connection, as for example in the case you have provided, the detected leak is at one end of a large beam; even if the overall beam is un-damaged, a failure at the connection point could be catastrophic.

- an interior inspection of the building finished-surfaces for evidence of leakage or movement (stains, cracked, dislocated drywall or plaster, wall-floor separation, etc)

- an exterior inspection of the building to identify its leak points and leak history, with an eye to identifying other areas where there may be un-discovered leakage, rot, and structural damage that need to be investigated.
