Severe Termite Damage Case Study, Inspection Clues, Photographs
 This disturbing case study reports a sequence of clues suggesting insect damage, then termite damage, then the discovery of very extensive hidden termite damage in a finished wood floor. We provide a sequence of photographs showing the course of our termite inspection and what we found.
See ROT, FUNGUS, TERMITES for our home page about rot and insect damage at buildings. Also see INSECTS & FOAM INSULATION, and TERMITE SHIELDS vs TERMITICIDE for a discussion of prevention of insect damage at foam insulated buildings and foundations. Also see SLAB INSULATION, PASSIVE SOLAR. Readers should also see INSULATION LOCATION for CAPES, CRAWLSPACES, and may also be interested in the mold resistance properties of Icynene Foam Spray Insulation. Finally, because insect damage on buildings is very often related to locations of water leaks or moisture traps, readers should also see WATER ENTRY in BUILDINGS.
Termite trouble signs outdoors

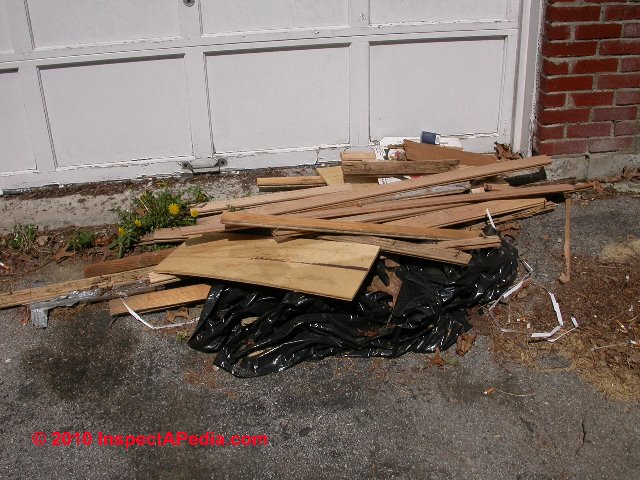

The first sign of trouble was that pile of wood flooring and debris by the garage door, outside the home (photo above left). We later looked through this pile and found it was full of termite-damaged wood flooring. If we had examined it at first, and had we confirmed it came from this home, we'd have known the story before ever entering the house. But as you'll see (below) the termite damage "repair" was horrible: it was a cosmetic-only repair intended to sell the home, leaving not only extensive termite damage in place, but the conditions that caused the termite attack had not been addressed nor had a professional termite treatment been performed.
Termite trouble signs indoors

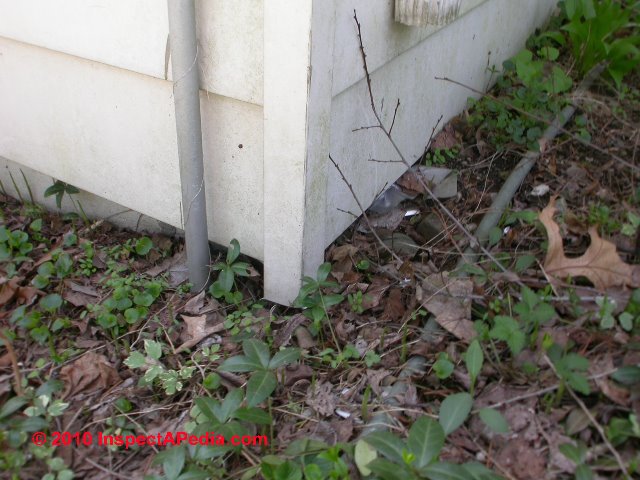

The second sign of trouble at this home was siding close to, in contact with, and even below ground level at several locations that also exacerbated conditions by combining in-slope grade towards the building with roof spillage around the foundation. We were on red alert for insect damage before ever entering the home. Add that much of the home was over slab on grade or inaccessible crawl space, and extra care was called-for.
Watch out: if you are renovating a building where there has been termite damage, be careful not to disturb and breathe in dust from chemically-contaminated wood. Find out what type of treatment was performed, by whom (was it a qualified licensed pest control company), and where.
|

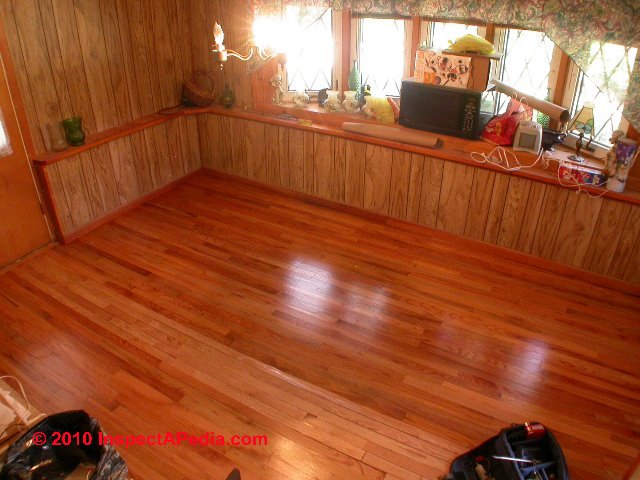

Below right our photograph shows a beautifully-finished and "brand-new" looking floor in a family room wing. We knew that this floor was built over either a slab on grade or an inaccessible crawl area - there was no access from below. The room was described has having been recently remodeled by the owners in the course of preparing the home for sale.
Termite trouble signs in finished areas: floors, trim, walls, ceilings

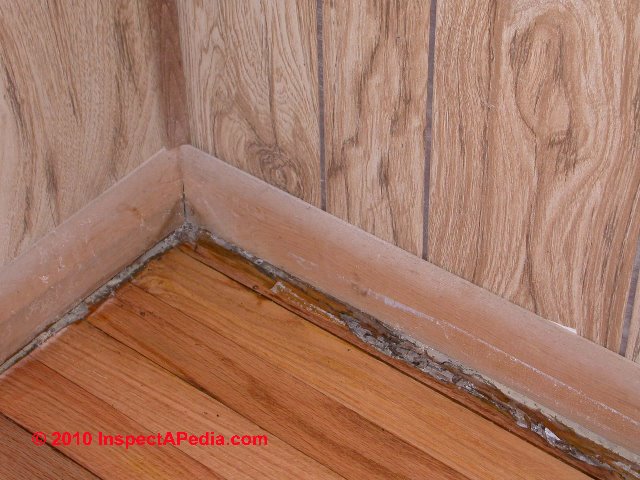

But wait? What was that odd gray goop we spotted along the floor perimeter where some old flooring also remained in place? See our photo at below right.

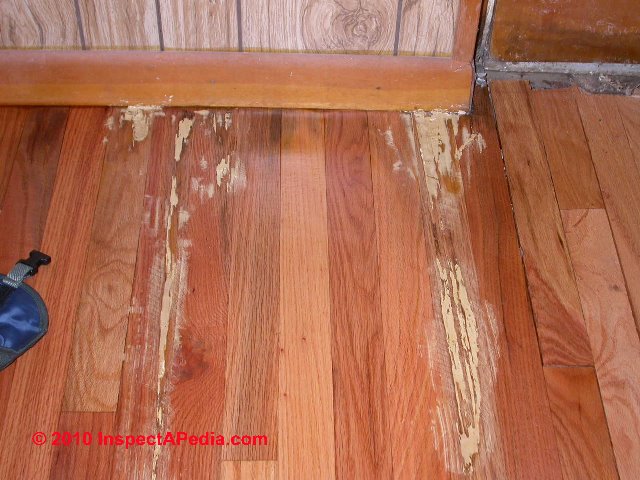

The combination of old floor boards and wood filler and caulk shown at below right made us worry about what sort of damage had been "repaired" in this floor. We continued looking under furniture and behind doors - see our photo at below left: there remained a collection of older oak flooring extensively patched with wood-filler.
How to decide that termite trouble signs justify destructive or invasive inspection methods
These clues justified (with permission) pulling off baseboard molding trim to disclose how the floor was constructed and what damage to its support may remain. We saw rot, termite damage, mud, mud tubes. A disappointment at least.
Conditions at the floor perimeter led us to probe some small spots of wood filler in the center of the re-built, re-finished floor. With the slightest pressure the wood filler collapsed under our probe (above left), showing the extensive termite damage shown by the photographs at above right and the two termite damage photographs below.
Termite Inspection & Damage Finding Conclusions
This was an upsetting series of discoveries:
- The original termite damaged floor was incompletely repaired, leaving damaged support in place
- There was such a severe and active termite infestation that even the "new" materials had already been attacked by termites, months after the renovation work was complete
- No professional termite inspection, treatment, nor water and drainage problem assessment had been performed.
- We were concerned about possible improper use of chemicals by the homeowner and site contamination.
- The owner's time, trouble, and money were wasted on this floor renovation as it failed to correct the termite problem and was itself damaged soon after installation
- The damage, combined with the representation that the work was simply a "lovely remodeling job" and the failure to report a long history of termite damage risked a case of real estate fraud
- Details about when, where, how & why to probe wood structural and nonstructural components on buildings are found at STRUCTURAL DAMAGE PROBING.
