This foundation repair article discusses How to Repair Vertical Foundation Movement or Foundation Settlementusing methods to stabilize or even level and straightened a settling or moving foundation wall or floor slab, by using slab jacking, driven steel pins, helical or "screw piers", friction piers or piles or even foundation reconstruction. To diagnose and evaluate foundation settlement or vertical foundation movement, start at VERTICAL MOVEMENT IN FOUNDATIONS.

Repair Methods for Vertical Foundation Movement - Foundations, slabs, fireplaces, chimneys

Photograph of a substantial settlement crack in poured concrete.

In the photos shown here, substantive cracks appeared and continued to increase in size in this poured concrete foundation used to support a modular home which had recently been completed.

The cracks and foundation movement were probably due to a combination of: poorly prepared foundation footings, blasting on an adjacent building lot to prepare that site for new construction, and possibly omission of steel reinforcement in the poured wall. As movement appeared to be ongoing over more than a year, the builder might have repaired the foundation by supporting it from below using one of the methods listed here.

Foundation Repair Using Mud Jacking, Pressure Jacking, Slab jacking Methods

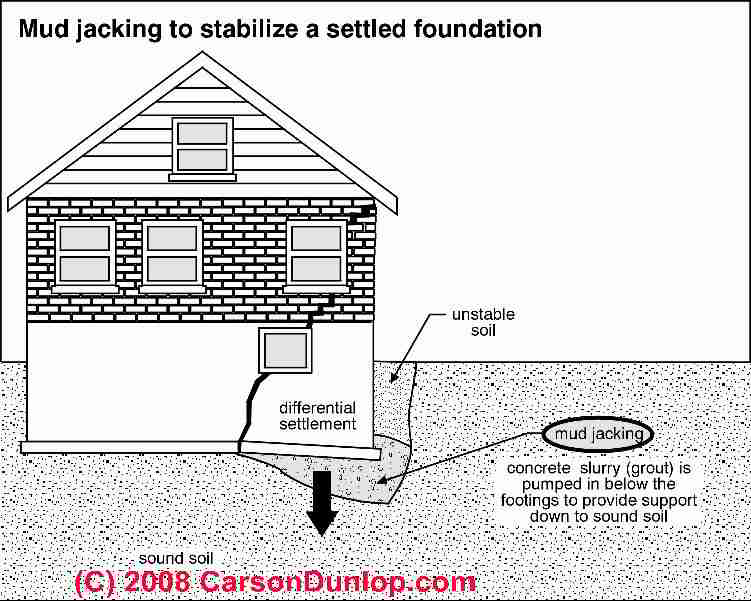

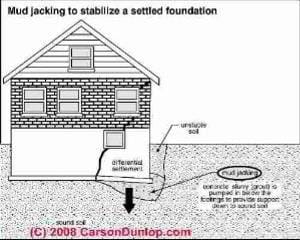

Grout pumping or mud jacking is used to stabilize soils below settling footings or slabs.

The mud jacking or grout pumping method of foundation repair is capable of lifting a slab and possibly some structures.

Mud jacking is suitable if bearing rock or stable soils are not too deep.

For cases where bedrock or suitable stable soils are deeper, slab-jacking methods are usually preferred - see the next foundation repair item just below.

Slab jacking is used to stabilize or lift and level settling concrete slabs, including interior floor slabs poured within the perimeter of a building foundation, and also lifting and leveling of monolithic concrete slabs or slab-on-grade construction.

If a floor slab or slab on grade construction is tipped, settling, or cracking, the underlying cause may vary among poor site preparation such as pouring over un-compacted fill, poor surface water runoff control resulting in soil loss or compaction, expansive clay soils, soil subsidence over buried debris, and sinkholes.

[Sketch courtesy of Magnum Piering, Florida.]

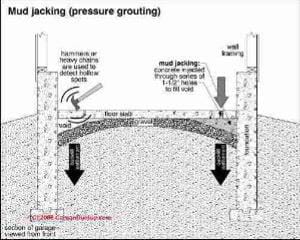

Sketch of mud jacking or pressure grouting to lift and repair a concrete floor slab

Carson Dunlop's sketch shows how slab jacking or mud jacking, also called pressure-grouting, might be used to repair a settling garage floor slab.

Foundation Repair Using Driven Steel Pins

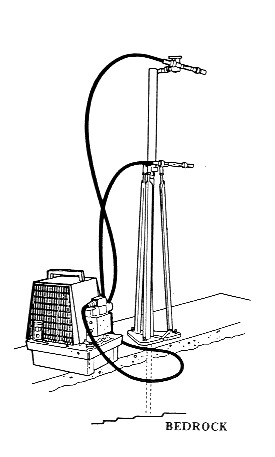

Photograph of Magnum steel pier foundation leveling or jacking.

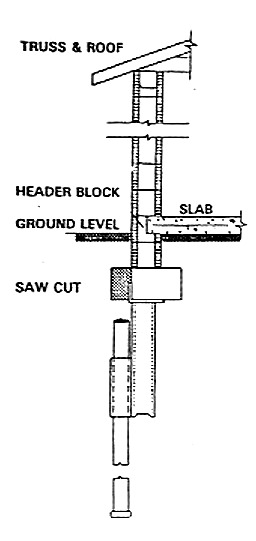

Driven steel pins are used to stabilize settling foundation walls or footings. A pin is driven next to the foundation and is inserted into the soil until it contacts bedrock.

The driven pin foundation repair method, like the alternative piers listed below, is often used when a portion of a foundation wall is moving or settling, perhaps because of improper site work or footing undermining.

The cost of this method is about $1200. to $1500. per pin for average 30 ft. depth.

The steel pin foundation repair method permits more precise leveling control across the building than grout pumping.

Some reviewers expressed a concern about a possible durability problem? The manufacturers typically warrant the product for 60 years.

[Sketch courtesy of Dwyer, Magnum Piering, Florida, via ASHI Seminar 1998, edited by DF.]

Helical Pier or Screw-Pier foundation Repair for Settled Footings, Slabs, or Walls

A.B. Chance helical screw piers are an approach similar to the above, but may be shorter in length and useful where soil conditions do not provide shallow bedrock or won't work well with friction piers (below).

Helical piers to repair sinking foundations are often used in building repair or reconstruction, and include models which can be used to level floor slabs as well. Sketch courtesy Carson Dunlop.

Friction-Pier or Driven Pier Foundation Repair for Settled Footings, Slabs, or Walls

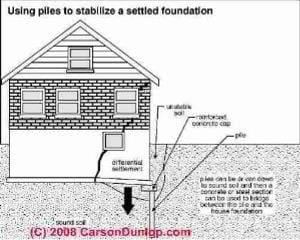

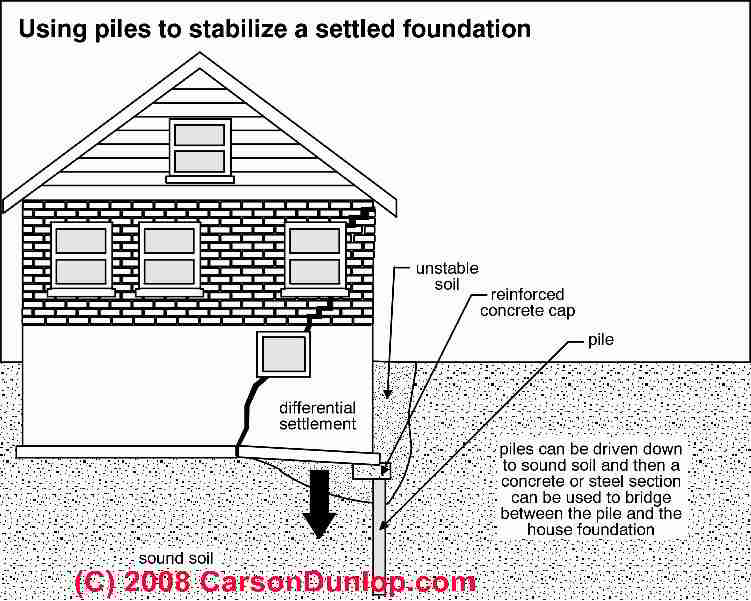

Friction piers or Magnum piers or foundation piles for foundation repair are driven piles which rely on soil friction against the sides of the pile to prevent further settlement.

This method was used with modest success at a spectacular settlement case of the settlement of the Victoria, an enormous masonry hotel on the harbor at Vancouver Island, Canada.

The Vancouver Victoria hotel was built over a marsh and set on friction piers. When we visited the site in the 1980's the hotel had settled fairly uniformly (luckily) so that the building has remained useable.

But today visitors enter the building on its second floor! The friction pier approach was not adequate in this case. Sketch courtesy Carson Dunlop.

Rod & Steel U-Channel or I-Beam Foundation Repair for Settled Footings, Slabs, or Walls

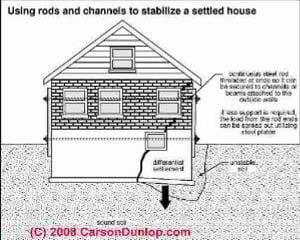

Rod & Channel Repair to Stabilize Structures over Poor Soils. Carson Dunlop's sketch of steel rods and "U" channels illustrates how an engineer may specify a repair to stabilize a building which has been constructed over un-stable soils.

Rod and u-channel structural repairs are more likely to be used where soil conditions prohibit the other pier or jacking methods illustrated above.

Threaded steel rods are run through the width or length of the damaged structure and bolted to vertical steel U-channels on the building exterior.

You may see a similar use of through-building threaded steel rods in 19th century masonry buildings in an attempt to stabilize structural masonry walls. Instead of "U" channels the rod ends are mounted through steel plates, often in a decorative shape.

Foundation Repair of Settled Footings, Slabs, or Walls by Reconstruction

Reconstruction of foundations: Some engineers who examine a failing foundation may prescribe excavation and reconstruction, possibly with reinforcement over the original design and with additional foundation and site drainage. And indeed in some cases these extensive foundation repair steps are completely appropriate and necessary both to repair the building and to prevent a recurrence of the trouble.

Watch out: We saw this method used for a home in Hyde Park, New York when it was discovered that the home had been built half over a landfill and was suffering from substantial differential settlement.

Helical screw piers or even driven steel pins might have worked at about one tenth the cost of the project as it was designed. We don't know if that alternative was considered.

See FOUNDATION CONTRACTORS, ENGINEERS for advice on how to choose an expert to diagnose or repair a building foundation problem.
